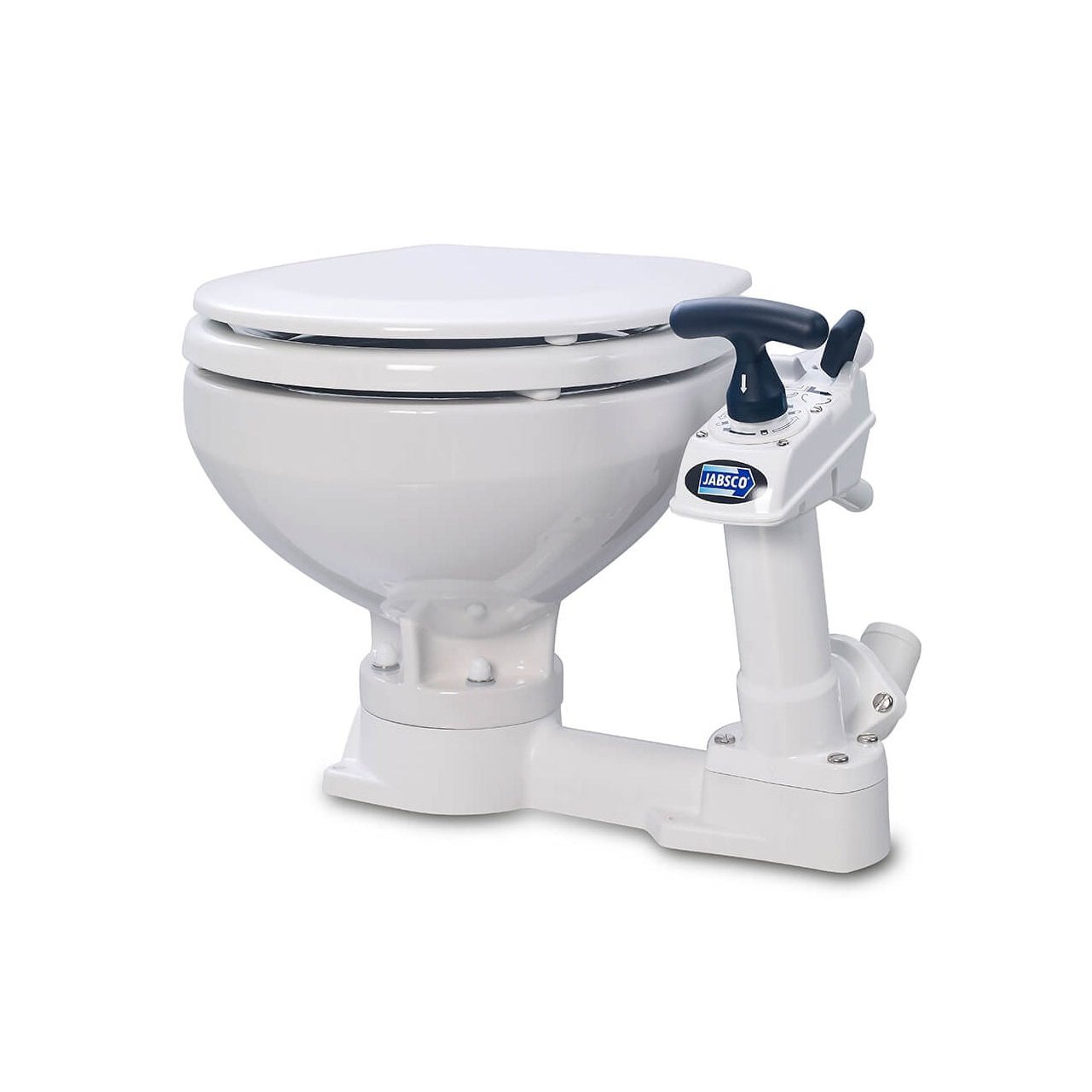

Jabsco Twist n Lock Manual Marine Toilet - Compact Size Bowl

Jabsco manual toilet designed for marine applications using either fresh or raw water flushing. This upgraded toilet replaces Jabsco 29090-3000 toilets, featuring a new bowl profile measuring 324mm x 396mm. The toilet features a compact space saving bowl shape made from vitreous china with an enamelled wooden seat. The 29090-5000 model is a Twist 'N' Lock toilet from Jabsco which is designed to prevent flooding and waste backflow.

The Twist 'N' Lock feature is built into the pump out system. After the manual pumping process, which is aided by the inclusion of an automatic vacuum breaker, the user can rotate the handle 90° to lock the system and prevent any danger of waste backflow. This is done by the pump piston which closes the outlet valve when in this position.

The pump can be mounted to the left or the right of the toilet due to the rotating plastic base. All fastenings used in toilet installation are front or top facing for ease of maintenance as well as easy access external seal housing. Installation is also eased by the multi angled discharge elbow which adapts to your specific requirements. All contours of the toilet are smooth and do not have crevices for hygienic purposes.
