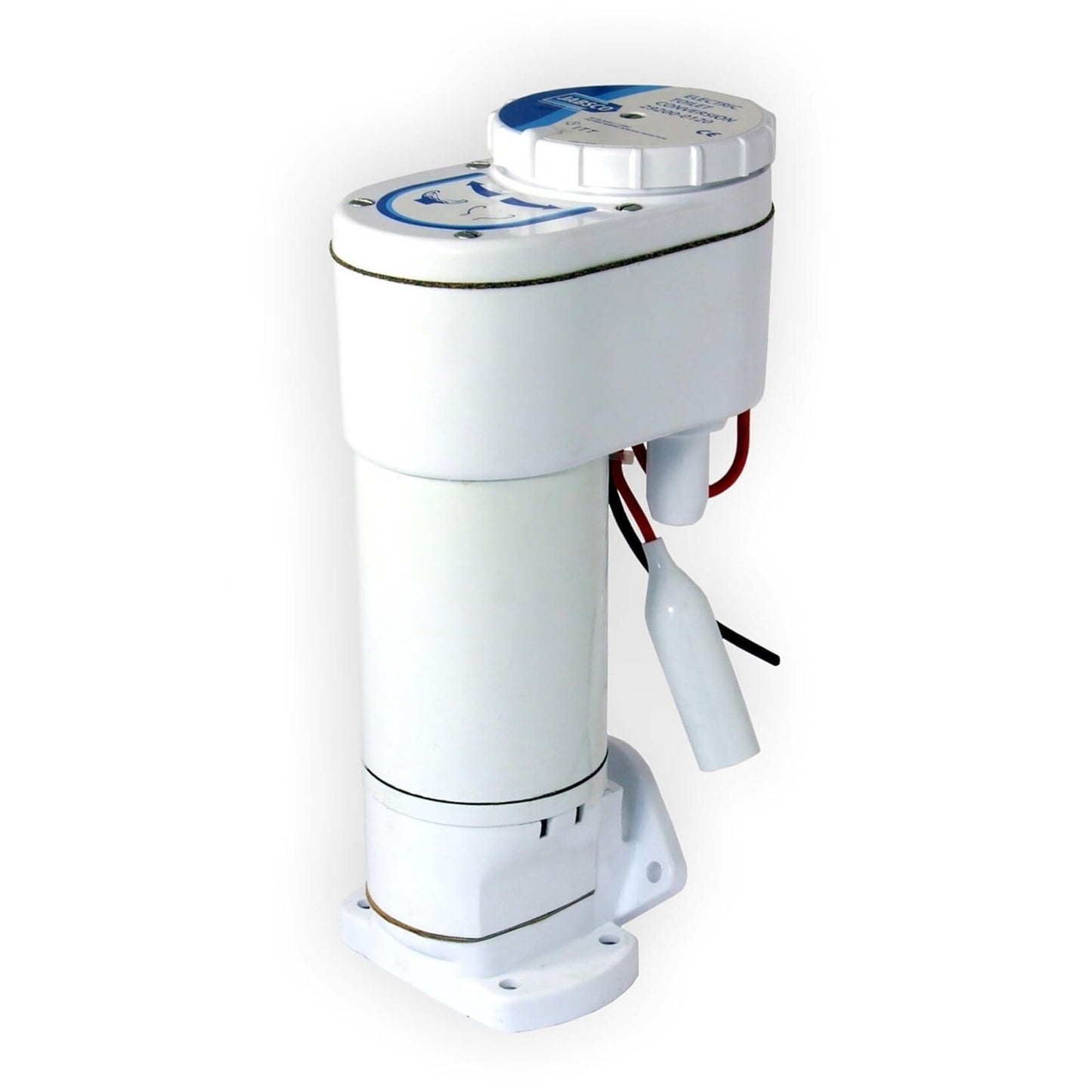

Jabsco 29200 Electric Marine Toilet Conversion Kit

The Jabsco 29200 Electric Toilet Conversion Kit replaces the manual pump on compatible 29090 and 29120 toilets with an electrically powered rinse and macerator assembly. Choose 12V or 24V.

The kit retains the existing compact or regular bowl and base while providing dual-action electric flush control. It is intended for correctly installed raw-water marine sanitation systems above or below the waterline.

Product Identification

• Brand: Jabsco
• Product name: Jabsco 29200 Electric Toilet Conversion Kit
• Model / part number: 29200-0120, 29200-0240
• Marine Scene SKU: CW-29200-0120, CW-29200-0240
• Product category: Manual-to-electric marine toilet conversion kit
• Quantity supplied: One selected product or kit

What Is the Jabsco 29200 Conversion Kit Used For?

It upgrades a compatible Jabsco Twist 'N' Lock manual toilet to electrically powered flushing without replacing the existing bowl.

What Is Included?

• One electric conversion assembly in the selected voltage
• Dual-action flush control
• Required conversion gaskets and installation components supplied by Jabsco
• Installation and operating instructions

What Is Not Included?

• Sanitation hose, hose clips and through-hull fittings
• Seacocks, vented loops and anti-siphon components
• Holding tank or treatment system
• Installation fasteners not supplied in the packaged product

Which Products or Systems Is This Compatible With?

• Jabsco 29090 compact manual toilet bowls
• Jabsco 29120 regular manual toilet bowls
• 12V or 24V DC systems according to selected model
• Correctly plumbed raw-water sanitation systems

How Do I Select the Correct Model or Confirm Compatibility?

• Choose 29200-0120 for 12V
• Choose 29200-0240 for 24V
• Confirm the existing bowl and base are compatible and serviceable
• Check anti-siphon loop height and installation space before conversion

Construction and Design

• Integrated electric rinse and macerator assembly
• Dual-action water-level control
• Corrosion-resistant marine construction
• Designed to replace the manual pump assembly

Installation and Safety

Close and secure the inlet and discharge seacocks before installation or service. Use marine sanitation hose of the stated size, install vented loops where required by the plumbing layout, keep hose runs short and test for leaks and correct operation before use.

Maintenance

Use only suitable toilet tissue and mild non-abrasive cleaners. Inspect the pump, joker valve, hoses, clips and seacocks regularly, and service the toilet with the correct Jabsco kit when pumping effort or flushing performance changes.

Key Features

• Retains existing compact or regular bowl
• 12V and 24V variants
• Electric rinse and macerator operation
• Direct replacement for compatible manual pump assemblies
• Suitable above or below the waterline when correctly installed

Frequently Asked Questions

Does the kit include a new toilet bowl?
No. It converts a compatible existing 29090 or 29120 bowl.

Should the removed manual pump be retained?
Jabsco recommends retaining it as an emergency backup in case of electrical failure.

How do I know whether this part is compatible?
Match the exact Jabsco model or part number first, then confirm the connection size, voltage, dimensions and application shown in the specification table.

Are installation accessories included?
Only the components listed under “What Is Included?” are supplied. Hose, wiring, fittings, switches and fasteners are excluded unless stated otherwise.

Specifications
