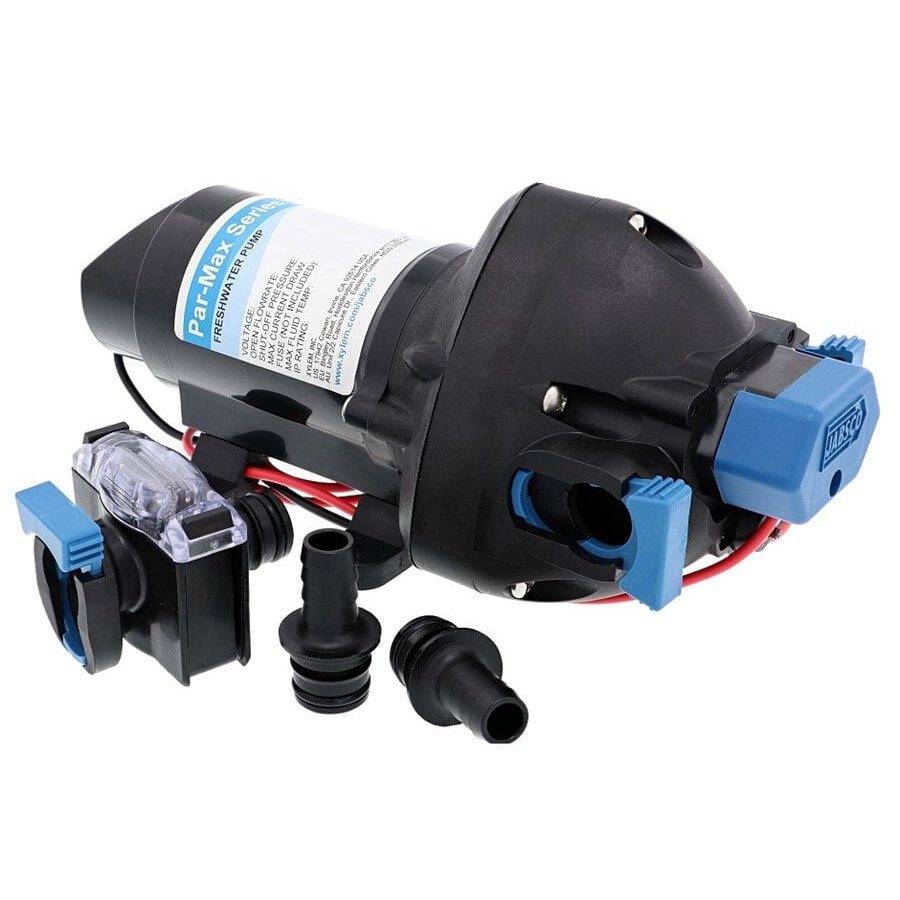

Jabsco Par Max 3 Pressure-Controlled Fresh Water System Pump

Need a freshwater supply pump? This Jabsco Par-Max 3 has got you covered. Pressure controlled diaphragm pumps provide boat owners with a freshwater system that’s as easy to use as the one in their homes.

Supplied with 2 x snap-in ports for hose 1/2" (12.7mm) and a strainer. Motor protected by automatic thermal overload cut-out Includes bypass feature to provide smooth, quiet flow. No need for accumulator tank, multi-diaphragm design self primes to 1.8m vertical lift, can run dry without damage!

• Accommodating flows from 1 GPM (3.8 LPM) to 6 GPM (22.7 LPM)
• Co-molded diaphragm technology ensures long life and durability

• Efficient and quiet operation and no vibration thanks to dampening mounting feet
• Integrated, sealed pressure switch for on-demand operation
• Versatile installation thanks to its self-priming capability
• Running dry without damage
• Quick-connect ports make for easy installation and servicing
• Reduced cycling and smoother flow thanks to integrated bypass module

Specifications:

• Connections: for 13mm (½”) bore hose
• Open Flowrate: 3 GPM (11 LPM)
• Shutoff Pressure: 25 PSI (1.7 BAR)
• Maximum Current:  5.2 AMPS (12v) / 3 AMPS (24v)
• Fuse (Not included): 10A
• Max Fluid Temp.: 60c (140F)
• IP Rating: IPX5

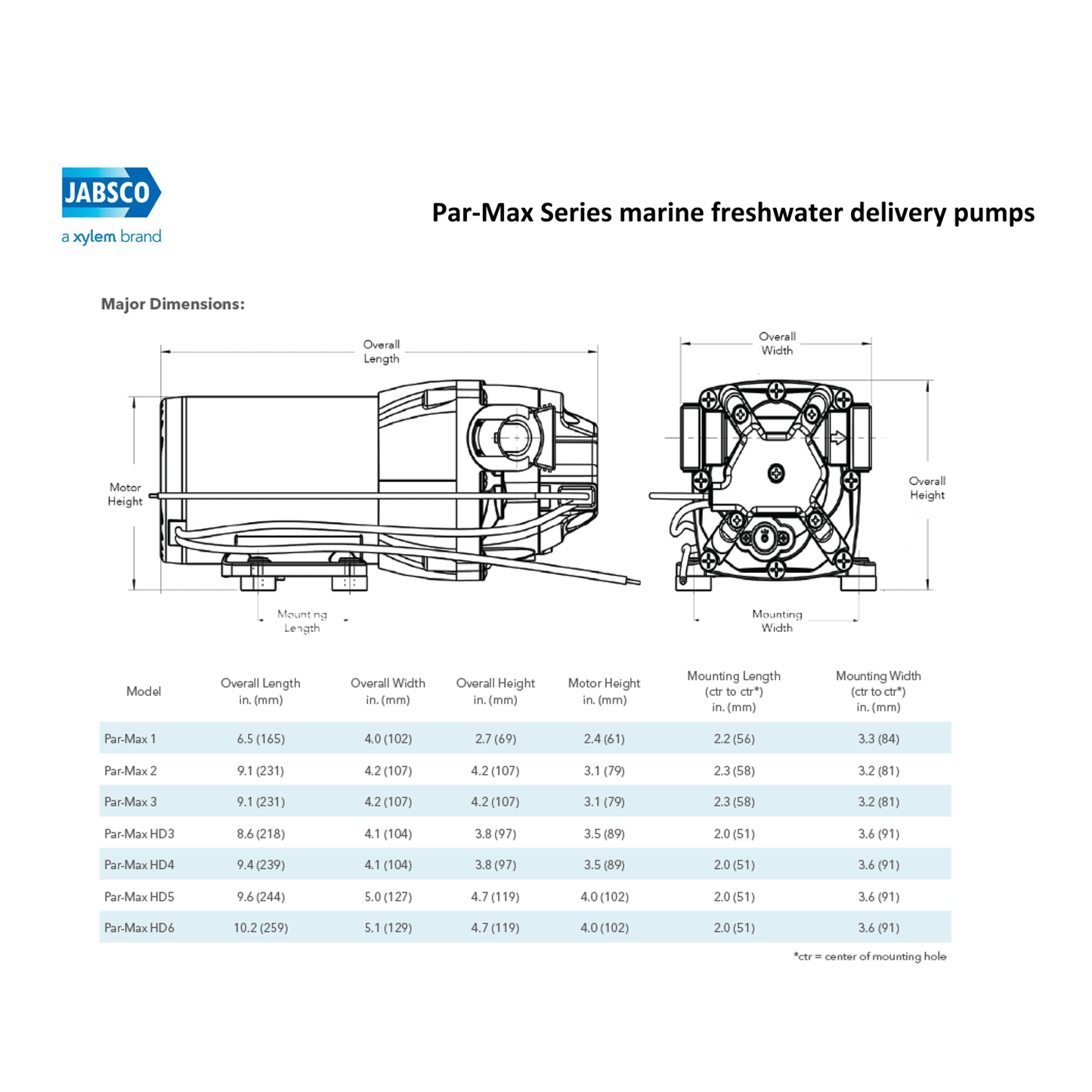

• Overall Length: 231mm
• Overall Width: 107mm
• Overall Height: 107mm
• Motor Height: 79mm
• Mounting Length (ctr to ctr*): 58mm
• Mounting Width (ctr to ctr*): 81mm

*ctr = center of mounting hole

This is a replacement model for 31395-0292 /  Jabsco Par Max 2.9 Water Pump

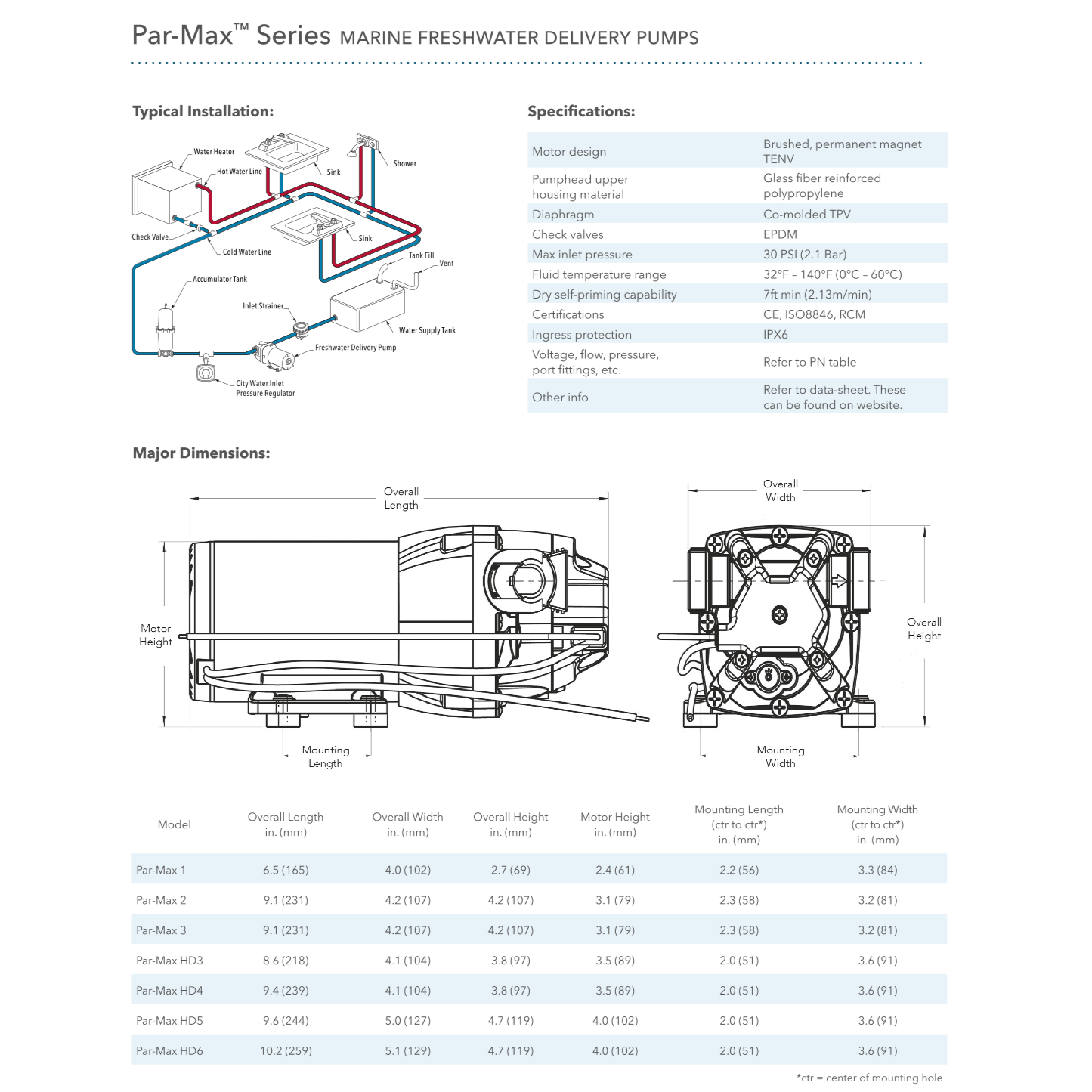

Par-Max 3 Datasheet
