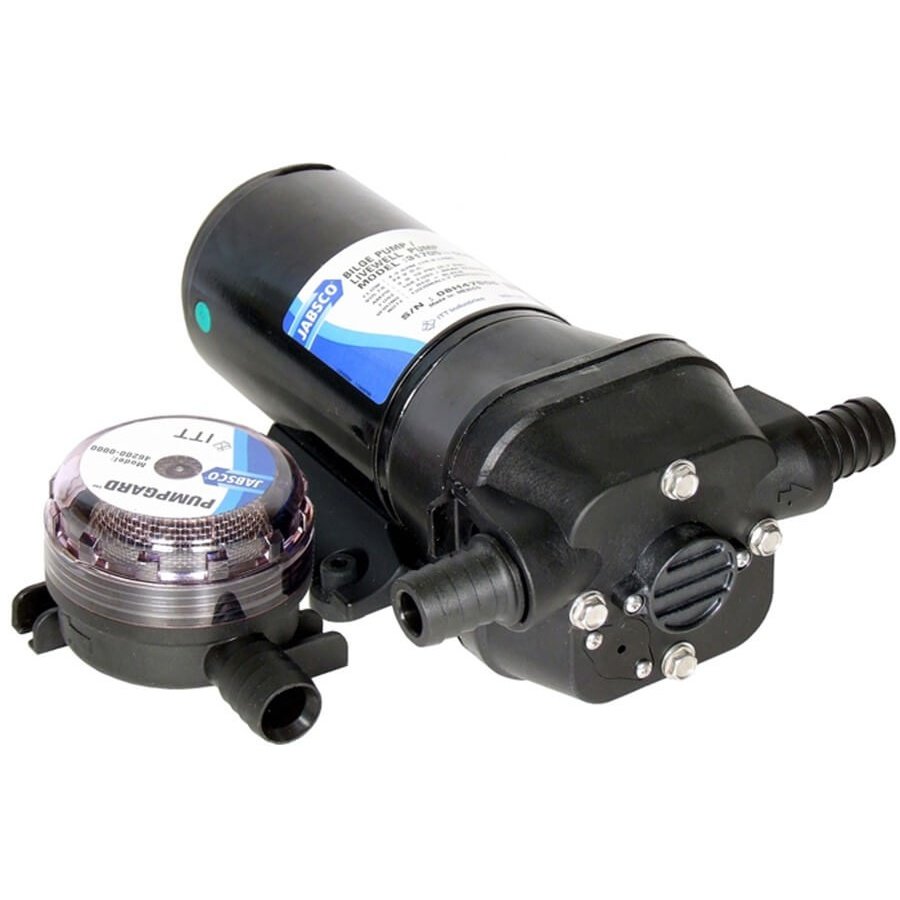

Jabsco Par Max 4 31705 Series Self Priming Diaphragm Bilge Pump

The Jabsco new generation, continuous rated bilge pumping, shower drain or livewell circulation pump with a waterproof coating for harsh marine environments.

The Par Max 4 bilge pump is self-priming up to 8.2 feet (2.5 metres) which allows for mounting above wet bilges and the diaphragm design allows for extended dry running.

The Jabsco Par Max diaphragm bilge pump features built-in thermal overload protection and comes complete with Pumpgard strainer.

• Self-Priming to 3 Metres
• Run Dry Without Damage
• Smooth Flow
• Four Piston, Diaphragm Pump
• Powerful Heavy Duty Motor with Thermal Overload Protection
• Snap-in Ports
• Waterproof Coating
• Meets USCG Regulation 183.410 and EN ISO 8846 MARINE (Ignition Protection Standards)
• Meets EN 50081-1 Electro-magnetic Compatibility
• Complies with EN ISO 8849 MARINE Electric Bilge Pump


Specifications:

• Connections: - for 19mm (¾”) bore hose
• Dimensions: - 248mm long, 106mm wide, 100mm high
• Fuse Size: - 15(amp)
• Output: - up to 16 LPM litres/minute (3.5 gallons/minute). Maximum recommended total head 4m
• For bilge pumping, shower drain or livewell circulation
• Continuously rated motor with thermal overload protection
• Multiple diaphragm design allows extended dry running
• Self-primes up to 2.5m vertical lift
• Jabsco ‘Pump Guard’ strainer included with pump


Par-Max 4 31705 Datasheet
