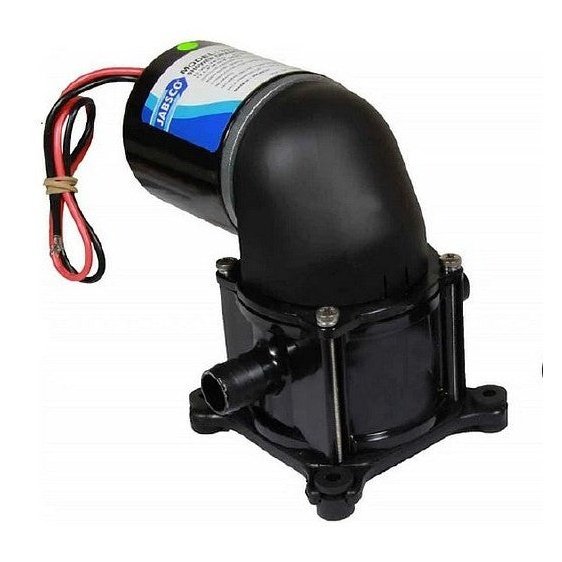

Jabsco 37202 Series Self-Priming Diaphragm Bilge And Shower Pump - 13 LPM

This Jabsco self priming diaphragm bilge and shower pump for 12V has connections for 19mm bore hose.

This bilge and shower pump has a flow rate of up to 13 litres per minute.

The maximum recommended total head is 3 metres. This pump has a single diaphragm design, which allows the pump to run dry for extended periods.

The pump self primes up to 2 metres vertical lift.

• Connections: - for 19mm (¾”) bore hose.
• Dimensions: - 130 mm long, 165mm wide, 150mm high
• Fuse Size: - 10(amp)
• Output: - up to 13 litres/minute (2.8 gallons/minute). Maximum recommended total head 3m
• Updated version of the popular PAR 37202
• Quiet running with shielded drive
• Single diaphragm design allows extended dry running
• Jabsco ‘Pump Guard’ strainer included with pump
• Self-primes up to 2m vertical lift


37202 Datasheet
