Jabsco Wooden Marine Replacement Toilet Seat and Lid

The Jabsco replacement wooden toilet seat and lid is available for compact or regular Jabsco marine toilet bowls. Choose part 29097-1000 for a compact bowl or 29127-1000 for a regular bowl, and confirm the existing bowl profile and fixing centres before ordering.

Each kit provides a coated wooden seat and lid with the associated hinge and screw set. These are bowl-size variants rather than voltage or toilet-pump variants, so compatibility is determined by the ceramic bowl size and mounting pattern.

Product Identification

• Brand: Jabsco
• Product name: Jabsco Replacement Wooden Marine Toilet Seat and Lid
• Models / part numbers: 29097-1000 compact and 29127-1000 regular
• Product category: Marine toilet replacement seat and cover
• Variant option: Bowl Size
• Quantity supplied: One seat-and-lid kit

What Is This Seat and Lid Used For?

It replaces a damaged, worn or missing standard-close wooden seat and lid on a compatible Jabsco marine toilet. It does not replace the ceramic bowl, toilet base or pump assembly.

What Is Included?

• One coated wooden toilet seat
• One matching lid
• Hinge set
• Fixing screws supplied with the kit

What Is Not Included?

• Ceramic toilet bowl
• Toilet base or pump
• Bowl-to-base mounting hardware
• Soft-close mechanism unless specifically stated for another Jabsco part number

How Do I Select Compact or Regular?

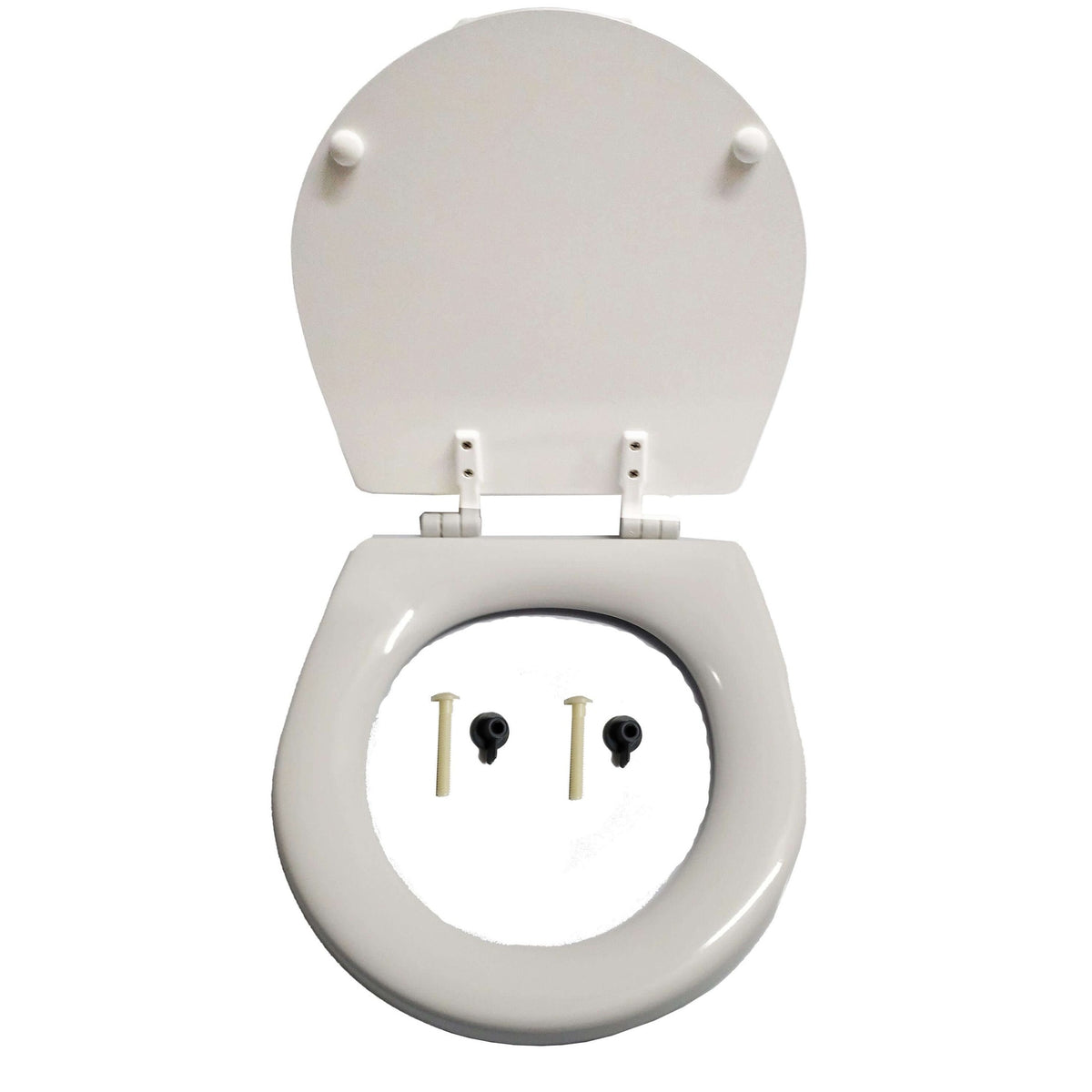

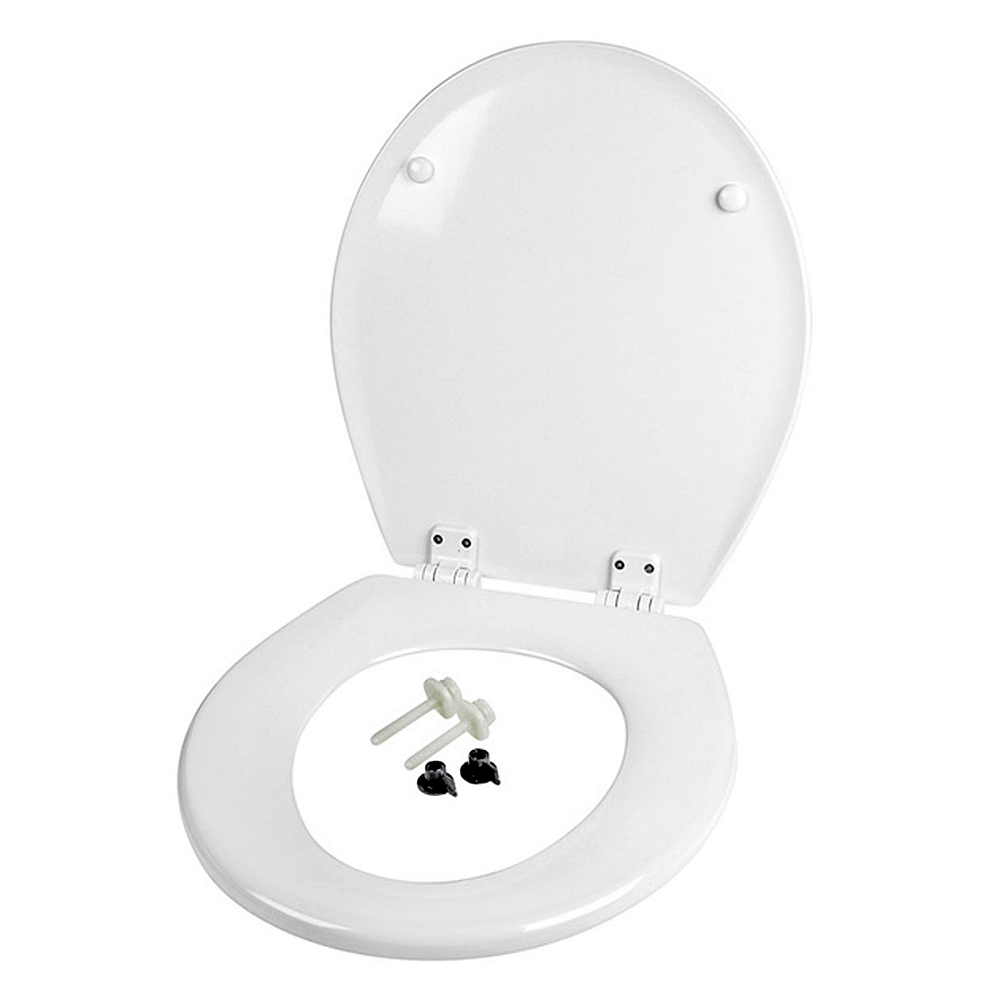

Identify the existing Jabsco bowl as compact or regular and compare its overall shape, outside dimensions and fixing-hole centres. The compact 29097-1000 is narrower, while the regular 29127-1000 is intended for the larger household-style bowl.

Which Jabsco Toilets Can Use These Seats?

Jabsco identifies these part numbers as the compact and regular seat-and-cover assemblies used across compatible manual and electric toilet families. Compatibility should still be confirmed from the toilet parts list or by measuring the installed bowl.

Installation and Care

Remove the old hinge fixings, clean and dry the bowl mounting area, position the new hinges without forcing the ceramic and tighten the fixings evenly. Do not overtighten. Clean using mild soap and water; avoid abrasive pads, strong solvents and concentrated bleach that can damage the coating or fittings.

Maintenance

• Check hinge screws periodically and retighten gently if movement develops.
• Keep the seat dry when the toilet is not in use for extended periods.
• Replace cracked hinges or a damaged seat rather than continuing to use it.
• Do not stand on the seat or lid.

Key Features

• Genuine Jabsco compact and regular bowl options
• Coated wooden seat and lid
• Hinges and fixing screws included
• Suitable for compatible Jabsco manual and electric marine toilets
• Variant comparison includes dimensions and part numbers

Frequently Asked Questions

Are compact and regular seats interchangeable?
No. They have different bowl profiles and overall dimensions. Select the part that matches the installed Jabsco bowl.

Is this a soft-close seat?
No. These part numbers are standard-close wooden seat-and-lid assemblies.

Does the kit include the ceramic bowl?
No. It includes the seat, lid, hinges and associated fixing screws only.

How do I reduce the risk of ordering the wrong size?
Confirm the existing part number where possible, identify the bowl as compact or regular and compare the bowl shape, outside dimensions and approximate 137 mm fixing centres.
