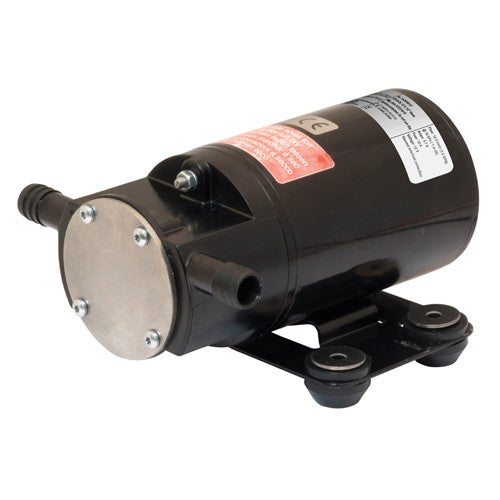

Johnson F2P10-19 Self-Priming Impeller Pump
Johnson F2P10-19 Self-Priming Impeller Pump
Location: FF54
Get 10% Off Everything*, Use Coupon Code SALE10 *Excludes Liferafts & Windlasses
SKU:AF-10-24886-01
Couldn't load pickup availability
24v version has a 5 week average lead time from day of order and is not kept in stock
Multi-Purpose self priming pump ideal for water, oils & chemicals. Applications include bilge, deck wash, shower, tray emptying etc.
With their high level of flexibility, the DC driven pumps from SPX FLOW Johnson Pump can be used for a variety of different applications and are ideal for bilge pumping, deckwash, water circulation, oil and diesel refuelling at dockside service, etc. Not to be used for pumping paraffin or other thin petroleum products. They can be combined with a vacuum switch when used as bilge pumps and with a pressure switch for deck wash applications.
Designed to quickly fill or when reversed, drain a ballast tank at a rate of more than 45 L/min (12 GPM). Capable of pumping fresh or sea water the pump’s robust design can handle the rigors of continues duty usage, is reversible, and has a built in thermal overload for added protection. Care not to run dry for extended periods of time will increase the pump longevity and ensure reliable performance for many years.
| Flow Rate Description | 900LPH (240 US GPH) | 900LPH (240 US GPH) |
| Flow Rate 1 Metre Head | 870 LPH (228 US GPH) (at 1.8m Head: 840 LPH (222 US GPH)) | 870 LPH (228 US GPH) (at 1.8m Head: 840 LPH (222 US GPH)) |
| Automatic Bilge Pumps | No | No |
| Flow Rate 3 Metre Head | 810LPH (216 US GPH) | 810LPH (216 US GPH) |
| Flow Rate 6 Metre Head | 660LPH (174 US GPH) | 660LPH (174 US GPH) |
| Hose Size | 13mm / 1/2" | 13mm / 1/2" |
| Replacement Impeller | JP-09-1077B-9 | JP-09-1077B-9 |
| Self Primes up to | 1.5 Metres (4.9 Feet) | 1.5 Metres (4.9 Feet) |
| Inlet Outlet | For 13mm (1/2") ID Hose | For 13mm (1/2") ID Hose |
| Brand | Johnson | Johnson |
| Model | 10-24886-01 | F2P010-19 |
| Voltage Description | 12V DC | 10-24886-02 |
| Wattage | Power: 0.12kW | 24V DC |
| Amps Description | 7.2A | 5.6A at 0 Bar & 0 Feet, 6.1A at 0.6 Bar & 20.1 Feet |
| Fuse | 16A | 8A |
| Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump), ISO10133 Small Craft (Low voltage DC Installations) standards. | ISO8846 marine (ignition), ISO8849 marine (bilge pump), ISO10133 Small Craft (Low voltage DC Installations) standards. |
| Height Description | 78mm (3.1") | 78mm (3.1") |
| Width | 117mm (4.6") | 117mm (4.6") |
| Length | 172mm (6.8") | 172mm (6.8") |
