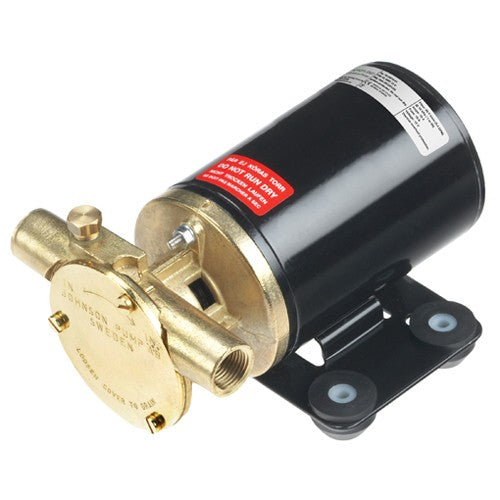

Johnson F3B-19 Self-Priming Impeller Pump
Johnson F3B-19 Self-Priming Impeller Pump
Location:
Get 10% Off Everything*, Use Coupon Code SALE10 *Excludes Liferafts & Windlasses
SKU:AF-10-24516-01
Couldn't load pickup availability
General purpose self-priming flexible impeller pump with powerful electric motor suitable for refuelling, bilge pumping, irrigating etc. Connection for vacuum switch. Universal mounting. Can run continuously in certain conditions.
With their high level of flexibility, the DC driven pumps from SPX FLOW Johnson Pump can be used for a variety of different applications and are ideal for bilge pumping, deckwash, water circulation, oil and diesel refuelling at dockside service, etc. Not to be used for pumping paraffin or other thin petroleum products. They can be combined with a vacuum switch when used as bilge pumps and with a pressure switch for deck wash applications.
Designed to quickly fill or when reversed, drain a ballast tank at a rate of more than 45 L/min (12 GPM). Capable of pumping fresh or sea water the pump’s robust design can handle the rigors of continues duty usage, is reversible, and has a built in thermal overload for added protection. Care not to run dry for extended periods of time will increase the pump longevity and ensure reliable performance for many years.
| Flow Rate Description | 1260LPH (330 US GPH) | 1260LPH (330 US GPH) |
| Flow Rate 1 Metre Head | 1230 LPH (324 US GPH) (at 1.8m Head: 1200 LPH (318 US GPH)) | 1230 LPH (324 US GPH) (at 1.8m Head: 1200 LPH (318 US GPH)) |
| Automatic Bilge Pumps | No | No |
| Flow Rate 3 Metre Head | 1170LPH (312 US GPH) | 1170LPH (312 US GPH) |
| Flow Rate 6 Metre Head | 1068LPH (282 US GPH) | 1068LPH (282 US GPH) |
| Replacement Impeller | JP-09-1052S-9 | JP-09-1052S-9 |
| Self Primes up to | 3 Metres (9.8 Feet) | 3 Metres (9.8 Feet) |
| Inlet Outlet | 3/8" BSP Female Thread | 3/8" BSP Female Thread |
| Brand | Johnson | Johnson |
| Series | F3B-19 | F3B-19 |
| Model | 10-24516-01 | 10-24516-02 |
| Voltage Description | 12V DC | 24V DC |
| Amps Description | 8.4A at 0 Bar & 0 Feet, 9.0A at 0.6 Bar & 20.1 Feet | 4.0A at 0 Bar & 0 Feet, 4.2A at 0.6 Bar & 20.1 Feet |
| Fuse | 15A | 8A |
| Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump), ISO10133 Small Craft (Low voltage DC Installations) standards. | ISO8846 marine (ignition), ISO8849 marine (bilge pump), ISO10133 Small Craft (Low voltage DC Installations) standards. |
| Height Description | 82mm (3.2") | 82mm (3.2") |
| Width | 100mm (4") | 100mm (4") |
| Length | 170mm (6.7") | 170mm (6.7") |
