HULK Outboard Fuel Tank Kit - Johnson / Evinrude
HULK Outboard Fuel Tank Kit - Johnson / Evinrude
Location: Z60
SKU:MS-FUELKIT-JOHN-HULK-12
HULK line of portable outboard motor fuel tanks is made of odor-free high-density polyethylene material in a red/orange colour.
Their robust rotationally mounded plastic construction makes them completely non-corrosive.
They are strong, yet lightweight and will not crack or dent.
Polyethylene material is used since it is unable to rust and has a longer lifetime, contrary to metal tanks. Complying with international standards and is used for fuel collection and storage.

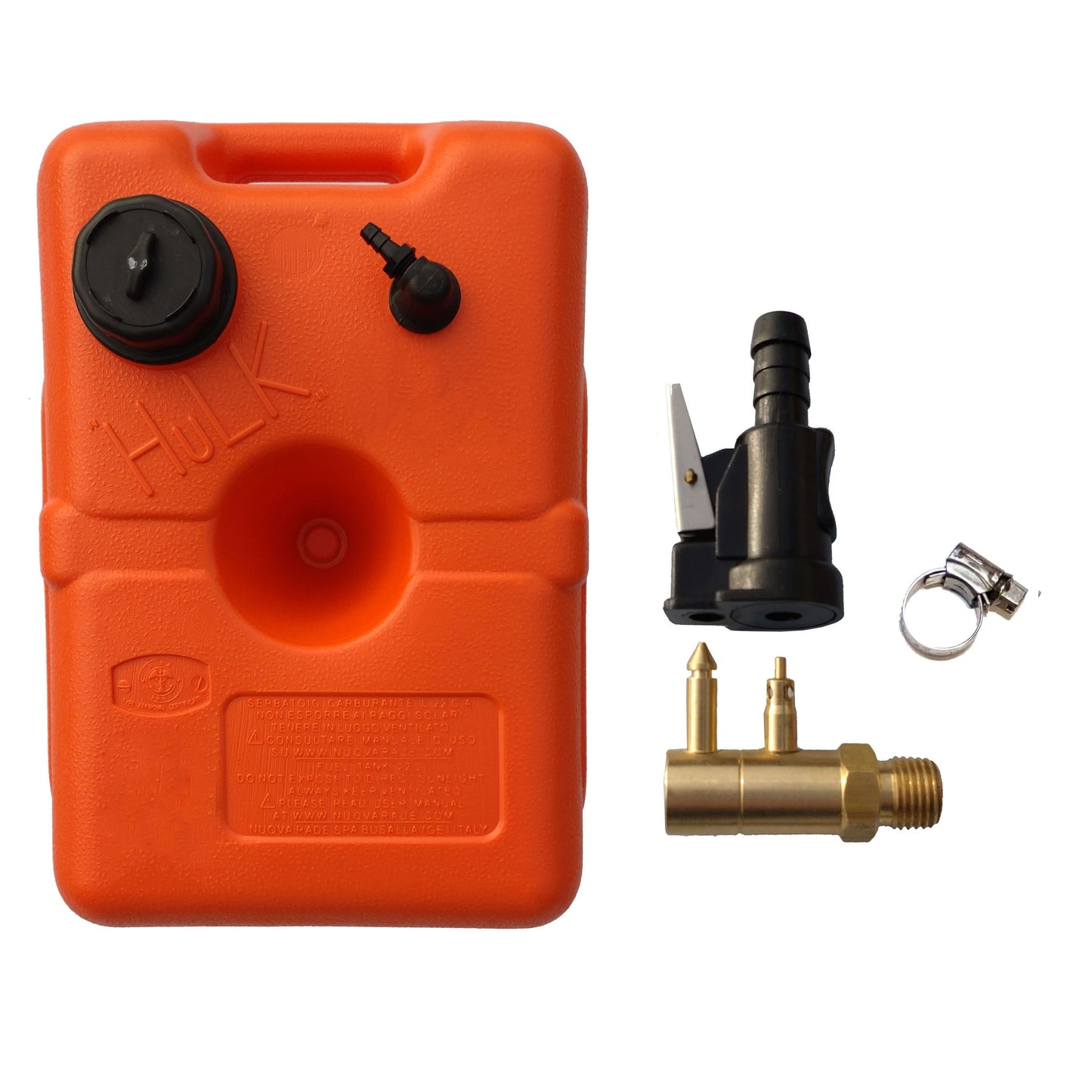

12 Litre Hulk Fuel Tank Kit
This kit includes:
- 1 x 12 LTR Hulk Fuel Tank (LA-44803)
- 1 x Male fuel connector for Johnson / Evinrude outboard tanks. (OS-52.732.55)
- 1 x Female fuel connector for Johnson / Evinrude outboard tanks. (OS-52.732.21)
- 1 x Hi-Grip Hose Clips - 11 to 16mm (MA-HGS16RP)
How to Fit the Male Mercury Brass Tank Fitting:
- Simply unscrew the fuel take-off connector from the fuel tank.
- Screw the brass fuel fitting into the plastic tank connector.
- Replace the plastic tank connector with brass fitting attached back into the fuel tank.
Comes with 8mm diameter outlet with filter and a vented cap with seal.
Dimensions:
- Length: 410mm
- Width: 260mm
- Height: 195mm
Male fuel connector:
Johnson / Evinrude male connector, tank side, screw-in onto this latter.
Dimensions:
- Overall Length: 50mm
- Overall Height: 35mm
- Internal Dia: 8mm
- In Take Prong Dia: 6mm
- In Take Prong Height: 18mm
- Lock Prong Dia: 8mm
- Lock Prong Height: 20mm
Female fuel connector:
Female connector, tank side with 10mm dia hose tail.
Dimensions:
- Overall Length: 67mm
- Overall Height: 34mm
- Hose tail dia: 10mm
Hi-Grip Hose Clips - 11 to 16mm
Principally aimed at the marine, food, petro-chemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 austenitic stainless steel, providing the the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance.
Use to secure the 10mm hose whilst connected to the fuel connectors.
22 Litre Hulk Fuel Tank Kit
This kit includes:
- 1 x 22 LTR Hulk Fuel Tank (LA-44804)
- 1 x Male fuel connector for Johnson / Evinrude outboard tanks. (OS-52.732.55)
- 1 x Female fuel connector for Johnson / Evinrude outboard tanks. (OS-52.732.21)
- 1 x Hi-Grip Hose Clips - 11 to 16mm (MA-HGS16RP)
How to Fit the Male Mercury Brass Tank Fitting:
- Simply unscrew the fuel take-off connector from the fuel tank.
- Screw the brass fuel fitting into the plastic tank connector.
- Replace the plastic tank connector with brass fitting attached back into the fuel tank.
22 LTR Hulk Fuel Tank
HULK line of portable outboard motor fuel tanks is made of odor-free high-density polyethylene material in red colour. Their robust rotationally mounded plastic construction makes them completely non-corrosive. They are strong, yet lightweight and will not crack or dent. Polyethylene material is used since it is unable to rust and has a longer lifetime, contrary to metal tanks. Complying with international standards and is used for fuel collection and storage.
Comes with 8mm diameter outlet with filter, vented cap with seal and a fuel gauge.
Dimensions:
- Length: 460mm
- Width: 305mm
- Height: 265mm
Male fuel connector:
Johnson / Evinrude male connector, tank side, screw-in onto this latter.
Dimensions:
- Overall Length: 50mm
- Overall Height: 35mm
- Internal Dia: 8mm
- In Take Prong Dia: 6mm
- In Take Prong Height: 18mm
- Lock Prong Dia: 8mm
- Lock Prong Height: 20mm
Female fuel connector:
Female connector, tank side with 10mm dia hose tail.
Dimensions:
- Overall Length: 67mm
- Overall Height: 34mm
- Hose tail dia: 10mm
Hi-Grip Hose Clips - 11 to 16mm
Principally aimed at the marine, food, petro-chemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 austenitic stainless steel, providing the the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance.
Use to secure the 10mm hose whilst connected to the fuel connectors.
30 Litre Hulk Fuel Tank Kit
This kit includes:
- 1 x 30 LTR Hulk Fuel Tank (LA-44805)
- 1 x Male fuel connector for Johnson / Evinrude outboard tanks. (OS-52.732.55)
- 1 x Female fuel connector for Johnson / Evinrude outboard tanks. (OS-52.732.21)
- 1 x Hi-Grip Hose Clips - 11 to 16mm (MA-HGS16RP)
How to Fit the Male Mercury Brass Tank Fitting:
- Simply unscrew the fuel take-off connector from the fuel tank.
- Screw the brass fuel fitting into the plastic tank connector.
- Replace the plastic tank connector with brass fitting attached back into the fuel tank.
30 LTR Hulk Fuel Tank
HULK line of portable outboard motor fuel tanks is made of odor-free high-density polyethylene material in red colour. Their robust rotationally mounded plastic construction makes them completely non-corrosive. They are strong, yet lightweight and will not crack or dent. Polyethylene material is used since it is unable to rust and has a longer lifetime, contrary to metal tanks. Complying with international standards and is used for fuel collection and storage.
Comes with 8mm diameter outlet with filter, vented cap with seal and a fuel gauge.
Dimensions:
- Length: 510mm
- Width: 360mm
- Height: 270mm
Male fuel connector:
Johnson / Evinrude male connector, tank side, screw-in onto this latter.
Dimensions:
- Overall Length: 50mm
- Overall Height: 35mm
- Internal Dia: 8mm
- In Take Prong Dia: 6mm
- In Take Prong Height: 18mm
- Lock Prong Dia: 6mm
- Lock Prong Height: 20mm
Female fuel connector:
Female connector, tank side with 10mm dia hose tail.
Dimensions:
- Overall Length: 67mm
- Overall Height: 34mm
- Hose tail dia: 10mm
Hi-Grip Hose Clips - 11 to 16mm
Principally aimed at the marine, food, petro-chemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 austenitic stainless steel, providing the the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance.
Use to secure the 10mm hose whilst connected to the fuel connectors.
