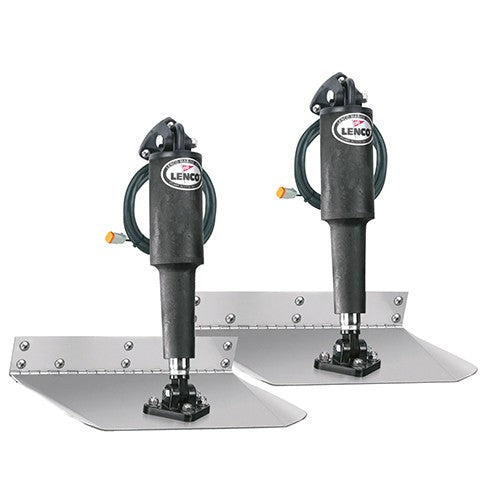

Lenco Standard Mount Trim Tab Kits 12v - 230 x 450mm

Lenco Standard Mount Trim Tab Kits 12v - 230 x 450mm.         Ref19: AF-4-46530

Ideal for most common style boats from centre console fishing boats to cuddy cabin cruisers.

Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with a 5/8" (1.6cm) flared trailing edge & 1/8" (3.2mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

This kit consists of the following:

• 2 x 12-gauge stainless steel finish blades
• 2 x 4-46579 actuators with 6' (1.8m) leads and Deutsch connectors
• 2 x 4-46755 actuator extension wiring harnesses - 20' (6.1m) length
• 2 x upper mounting brackets with gland seal
• 2 x lower mounting brackets
• Lenco owner’s / installation manual
• Stainless steel mounting hardware

Specification:

• Length x Width: 300 x 450mm
• Recommended Boat Length: 20ft - 30ft
• Hinge Height: 5.1cm
• Min Transom Height: 35.6cm

Instruction Manual
