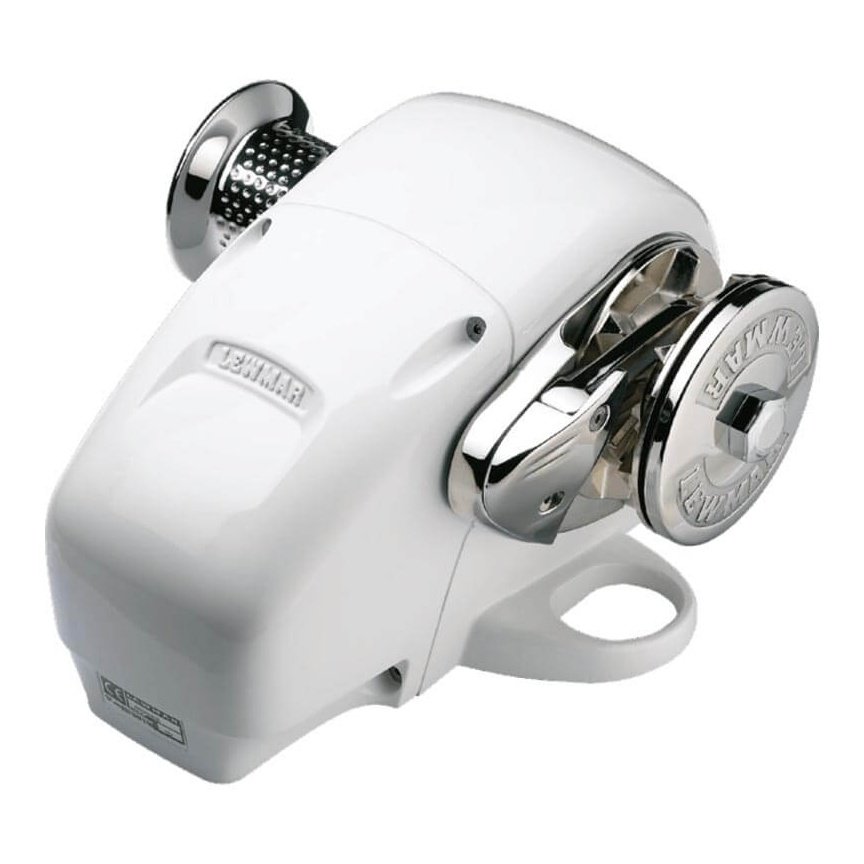

Lewmar H2 Horizontal Electric Windlass - With Drum

The stylish, horizontal H-Series Windlasses use the reliable worm gearbox technology. The integral contactor simplifies wiring and is protected by a durable maincase. the unit''''''''s waterproof seal requires minimum maintenance, and since you can install it in one piece, getting started is quick and easy.

Kit includes:  Built in dual direction contractor, breaker and rocker switch

Features

• Quick, easy, one-piece installation
• Robust horizontal worm motor-gearbox for reliable performance
• Integral contactor protected by maincase
• Sealed waterproof unit reuires minimum maintenance
• Aluminium and composite maincase for reduced weight
• Stainless Steel warping drum and unique "Wear and Abrasion Reduction Pattern" finish
• H2/3's come with reed switch and magnet fitted as standard for chain counter applications
• For Boats up to 14m (48ft)

Windlass Specifications

• Model: H2
• Motor Supply: 12 Volt
• Gypsy No: 505
• Motor Power: 700W
• Max Pull: 650kg 1433lb
• Max Line Speed: 21m 69ft
• Working Load: 163kg 358lb
• Normal Current Draw: 80A
• Normal Line Speed: 17m 56ft
• Weight, Gypsy / Drum: 23.5kg 52b
• Circuity Breaker (Slow Burn): 90A

Gypsy Specification:

• Gypsy No: 505
• Size: 8mm
• Chain Description: 5/16" BB, 5/16" US G4 ISO, 8mm DIN 766, 8mm ISO 4565
• Rope Description: 14-16mm (9/16 - 5/8") 3-strand and 8-plait (5/8"only)

This item is special order so delivery will be approx 3 to 4 weeks
