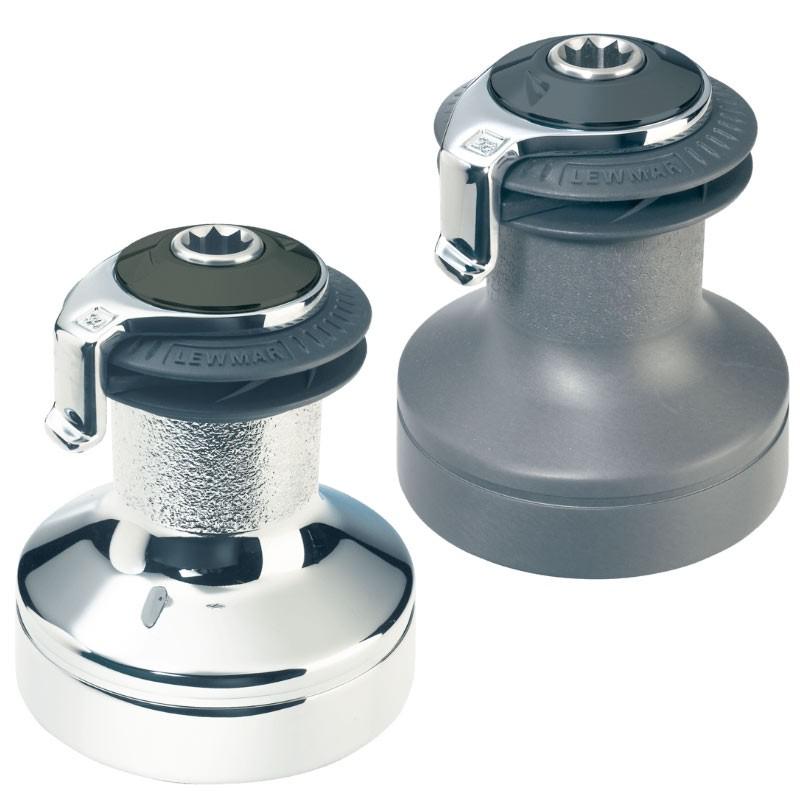

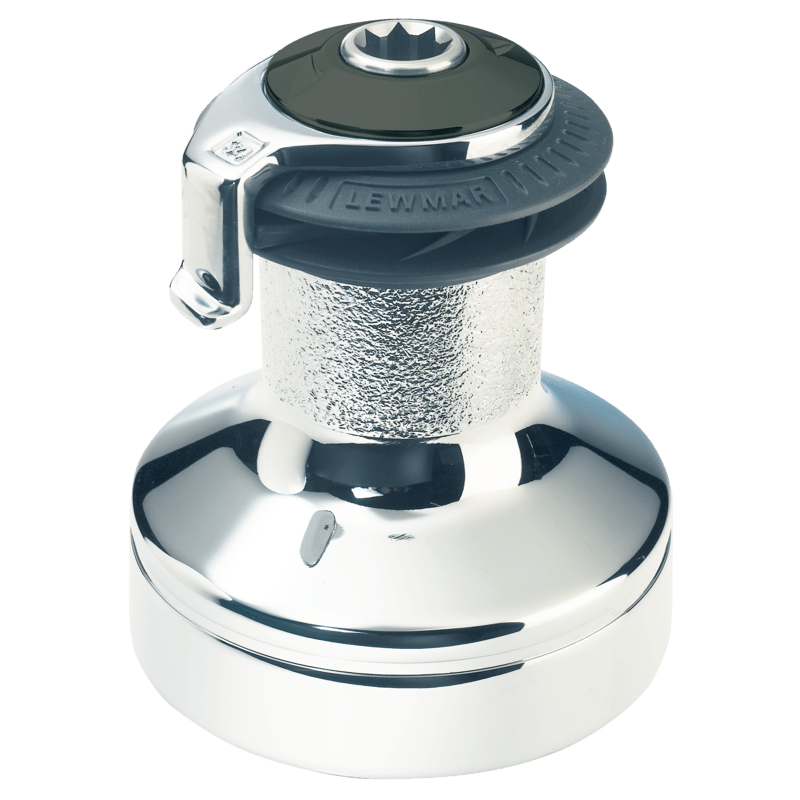

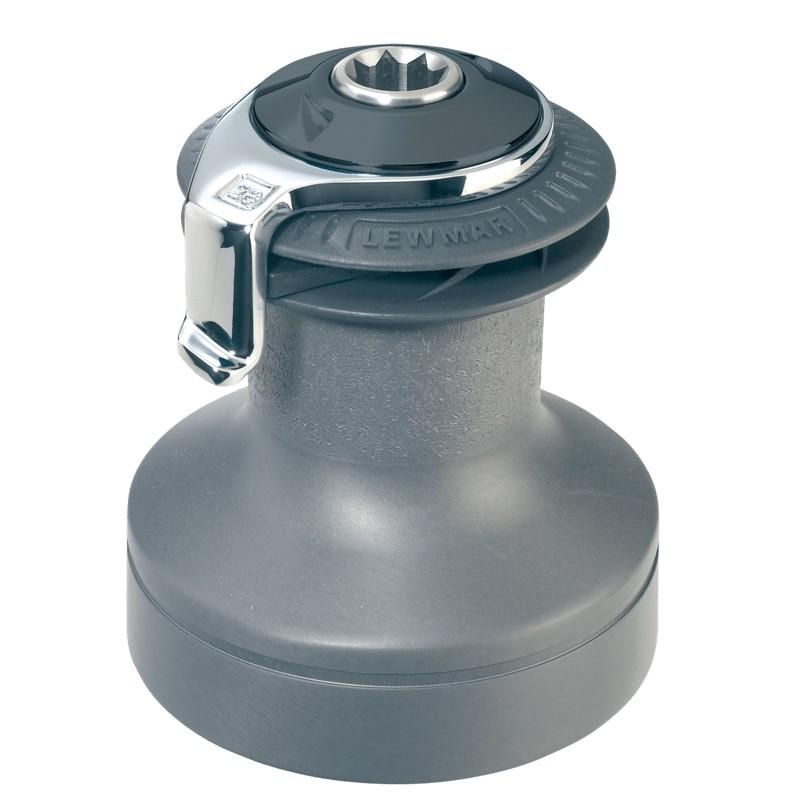

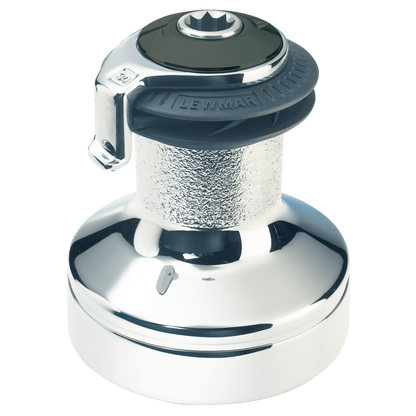

Lewmar Ocean Self-Tailing Winches
Lewmar Ocean Self-Tailing Winches
No reviews
SKU: LM-49014000
The Lewmar Ocean Self-Tailing Winch is one of the most popular and widely installed sailing winches ever produced, trusted by boat builders and yacht owners around the world for its reliability, performance, and timeless design. Combining classic styling with proven self-tailing technology, the Ocean range remains a favourite for both new yacht builds and replacing or upgrading existing winches. Its efficient self-tailing system ensures smooth, controlled line handling and effortless sail trimming, whether sailing short-handed or with a full crew.
Regular price
£478.95
Regular price
Sale price
£478.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
The Lewmar Ocean Self-Tailing Winch is one of the most popular and widely installed sailing winches ever produced, trusted by boat builders and yacht owners around the world for its reliability, performance, and timeless design. Combining classic styling with proven self-tailing technology, the Ocean range remains a favourite for both new yacht builds and replacing or upgrading existing winches. Its efficient self-tailing system ensures smooth, controlled line handling and effortless sail trimming, whether sailing short-handed or with a full crew.
Designed for practicality as well as performance, Lewmar Ocean winches feature a tool-free servicing system, allowing routine maintenance to be carried out quickly and easily onboard. For added versatility, models from size 40 upwards can be converted to electric operation, providing a convenient upgrade path without the need to replace the entire winch. Available in a range of finishes, including a premium bronze option for a traditional heritage appearance, the Lewmar Ocean Self-Tailing Winch offers the perfect combination of classic aesthetics, dependable engineering, and long-lasting durability for cruising and performance sailing yachts alike.
- Lewmar’s iconic and best-selling self-tailing winch range
- Proven self-tailing technology for efficient line management
- Tool-free servicing for easy maintenance
- Convertible to electric operation from size 40 upwards
- Available in multiple finishes, including premium bronze
- Ideal for new yacht builds, refits, and winch replacements
- Trusted by sailors and boat builders worldwide
Usual lead time from point of order - 4 - 6 weeks minimum
| Part No. | Model | Finish |
Gear Ratio (1st / 2nd / 3rd) |
Power Ratio (1st / 2nd / 3rd) | WLL (kg / lb) | Weight (kg / lb) | Drum Dia (mm / in) | Base Dia (mm / in) | Height (mm / in) | Entry Line (mm / in) | Line Size (mm / in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49016000 | 16ST | Alloy Grey | 2:1 | 15.8:1 | 570 / 1257 | 2.9 / 6.4 | 65.7 / 2 9/16 | 121 / 4 3/4 | 145.5 / 5 3/4 | 58 / 2 5/16 | 8–12 / 5/16–1/2 |
| 49016001 | 16ST | Chrome Bronze | 2:1 | 15.8:1 | 570 / 1257 | 3.9 / 8.6 | 65.7 / 2 9/16 | 121 / 4 3/4 | 145.5 / 5 3/4 | 58 / 2 5/16 | 8–12 / 5/16–1/2 |
| 49030000 | 30ST | Alloy Grey | 2:1 / 4.2:1 | 13.8:1 / 29.2:1 | 685 / 1510 | 4.2 / 9.2 | 74 / 2 15/16 | 138 / 5 7/16 | 160.5 / 6 5/16 | 69 / 2 11/16 | 8–12 / 5/16–1/2 |
| 49030001 | 30ST | Chrome Bronze | 2:1 / 4.2:1 | 13.8:1 / 29.2:1 | 685 / 1510 | 5.6 / 12.3 | 74 / 2 15/16 | 138 / 5 7/16 | 160.5 / 6 5/16 | 69 / 2 11/16 | 8–12 / 5/16–1/2 |
| 49040055 | 40ST | Alloy Grey | 1.9:1 / 5.8:1 | 13.2:1 / 40.2:1 | 795 / 1753 | 4.9 / 10.7 | 74 / 2 15/16 | 148 / 5 13/16 | 173 / 6 13/16 | 79 / 3 1/8 | 8–12 / 5/16–1/2 |
| 49040056 | 40ST | Chrome Bronze | 1.9:1 / 5.8:1 | 13.2:1 / 40.2:1 | 795 / 1753 | 6.5 / 14.3 | 74 / 2 15/16 | 148 / 5 13/16 | 173 / 6 13/16 | 79 / 3 1/8 | 8–12 / 5/16–1/2 |
| 49046055 | 46ST | Alloy Grey | 2.4:1 / 7.6:1 | 13.9:1 / 44.8:1 | 1200 / 2646 | 7.2 / 15.8 | 87 / 3 7/16 | 168 / 6 5/8 | 192 / 7 9/16 | 84 / 3 5/16 | 8–14 / 5/16–9/16 |
| 49046056 | 46ST | Chrome Bronze | 2.4:1 / 7.6:1 | 13.9:1 / 44.8:1 | 1200 / 2646 | 9.7 / 21.3 | 87 / 3 7/16 | 168 / 6 5/8 | 192 / 7 9/16 | 84 / 3 5/16 | 8–14 / 5/16–9/16 |
| 49048055 | 48ST | Alloy Grey | 2.6:1 / 9:1 | 13.9:1 / 48.6:1 | 1250 / 2756 | 8.8 / 19.4 | 93 / 3 5/8 | 181 / 7 1/8 | 208 / 8 3/16 | 86 / 3 3/8 | 8–14 / 5/16–9/16 |
| 49048056 | 48ST | Chrome Bronze | 2.6:1 / 9:1 | 13.9:1 / 48.6:1 | 1250 / 2756 | 12.1 / 26.7 | 93 / 3 5/8 | 181 / 7 1/8 | 208 / 8 3/16 | 86 / 3 3/8 | 8–14 / 5/16–9/16 |
| 49050000 | 50ST | Alloy Grey | 2.8:1 / 10.5:1 | 13.8:1 / 50.6:1 | 1250 / 2756 | 11.3 / 24.9 | 105 / 4 1/8 | 200 / 7 7/8 | 238 / 9 3/8 | 106 / 4 3/16 | 8–16 / 5/16–5/8 |
| 49050001 | 50ST | Chrome Bronze | 2.8:1 / 10.5:1 | 13.8:1 / 50.6:1 | 1250 / 2756 | 16.3 / 35.9 | 105 / 4 1/8 | 200 / 7 7/8 | 238 / 9 3/8 | 106 / 4 3/16 | 8–16 / 5/16–5/8 |
| 49054000 | 54ST | Alloy Grey | 2.8:1 / 11.2:1 | 13.8:1 / 54:1 | 1480 / 3263 | 12.0 / 26.4 | 105 / 4 1/8 | 205 / 8 1/16 | 250 / 9 7/8 | 115 / 4 1/2 | 8–16 / 5/16–5/8 |
| 49054001 | 54ST | Chrome Bronze | 2.8:1 / 11.2:1 | 13.8:1 / 54:1 | 1480 / 3263 | 17.0 / 37.5 | 105 / 4 1/8 | 205 / 8 1/16 | 250 / 9 7/8 | 115 / 4 1/2 | 8–16 / 5/16–5/8 |
| 49058000 | 58ST | Alloy Grey | 3.1:1 / 13.5:1 | 13.5:1 / 58.1:1 | 1600 / 3524 | 14.3 / 31.5 | 118 / 4 5/8 | 228 / 9 | 266 / 10 1/2 | 118.5 / 4 11/16 | 8–18 / 5/16–11/16 |
| 49058001 | 58ST | Chrome Bronze | 3.1:1 / 13.5:1 | 13.5:1 / 58.1:1 | 1600 / 3524 | 20.8 / 45.8 | 118 / 4 5/8 | 228 / 9 | 266 / 10 1/2 | 118.5 / 4 11/16 | 8–18 / 5/16–11/16 |
| 49065000 | 65ST | Alloy Grey | 3.1:1 / 15.3:1 | 13.4:1 / 66:1 | 1700 / 3748 | 16.6 / 36.5 | 118 / 4 5/8 | 231 / 9 1/8 | 271 / 10 11/16 | 121.5 / 4 13/16 | 8–18 / 5/16–11/16 |
| 49065001 | 65ST | Chrome Bronze | 3.1:1 / 15.3:1 | 13.4:1 / 66:1 | 1700 / 3748 | 23.8 / 52.4 | 118 / 4 5/8 | 231 / 9 1/8 | 271 / 10 11/16 | 121.5 / 4 13/16 | 8–18 / 5/16–11/16 |
| 49066000 | 68ST | Alloy Grey | 5.8:1 / 18.8:1 | 20.9:1 / 67.6:1 | 3000 / 6614 | 20 / 44 | 141 / 5 9/16 | 282 / 11 1/8 | 302 / 11 7/8 | 142 / 5 5/8 | 10–20 / 3/8–3/4 |
| 49066001 | 68ST | Chrome Bronze | 5.8:1 / 18.8:1 | 20.9:1 / 67.6:1 | 3000 / 6614 | 26.8 / 59 | 141 / 5 9/16 | 282 / 11 1/8 | 302 / 11 7/8 | 142 / 5 5/8 | 10–20 / 3/8–3/4 |
| 49066005 | 68ST 3 | Alloy Grey | 2.8:1 / 8:1 / 19.3:1 | 9.9:1 / 29:1 / 69.3:1 | 3000 / 6614 | 22.0 / 48.4 | 141 / 5 9/16 | 294 / 11 5/16 | 348 / 13 3/4 | 186.4 / 7 3/8 | 10–20 / 3/8–3/4 |
| 49066006 | 68ST 3 | Chrome Bronze | 2.8:1 / 8:1 / 19.3:1 | 9.9:1 / 29:1 / 69.3:1 | 3000 / 6614 | 28.8 / 63.4 | 141 / 5 9/16 | 294 / 11 5/16 | 348 / 13 3/4 | 186.4 / 7 3/8 | 10–20 / 3/8–3/4 |
| 49077000 | 77ST | Alloy Grey | 8:1 / 27:1 | 23:1 / 77:1 | 3500 / 7716 | 23.8 / 52.4 | 178 / 7 | 294 / 11 5/16 | 348 / 13 3/4 | 174 / 6 7/8 | 12–22 / 1/2–7/8 |
| 49077001 | 77ST | Chrome Bronze | 8:1 / 27:1 | 23:1 / 77:1 | 3500 / 7716 | 30.6 / 67.3 | 178 / 7 | 294 / 11 5/16 | 348 / 13 3/4 | 174 / 6 7/8 | 12–22 / 1/2–7/8 |
| 49077005 | 77ST 3 | Alloy Grey | 2.8:1 / 8:1 / 27:1 | 7.9:1 / 23:1 / 77:1 | 3500 / 7716 | 25.8 / 56.8 | 178 / 7 | 294 / 11 5/16 | 348 / 13 3/4 | 174 / 6 7/8 | 12–22 / 1/2–7/8 |
| 49077006 | 77ST 3 | Chrome Bronze | 2.8:1 / 8:1 / 27:1 | 7.9:1 / 23:1 / 77:1 | 3500 / 7716 | 32.8 / 72.2 | 178 / 7 | 294 / 11 5/16 | 348 / 13 3/4 | 174 / 6 7/8 | 12–22 / 1/2–7/8 |
