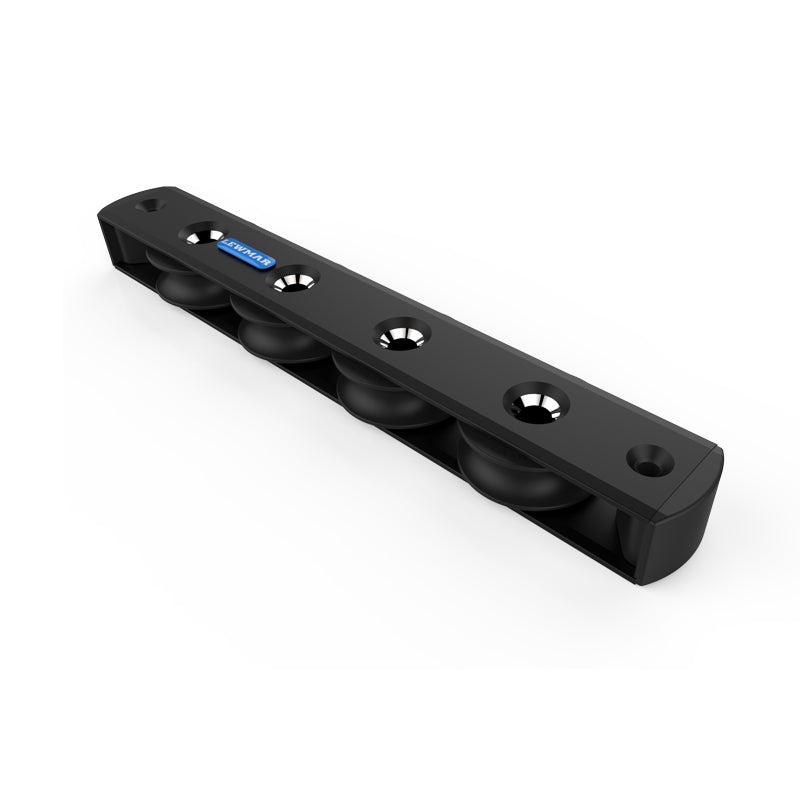

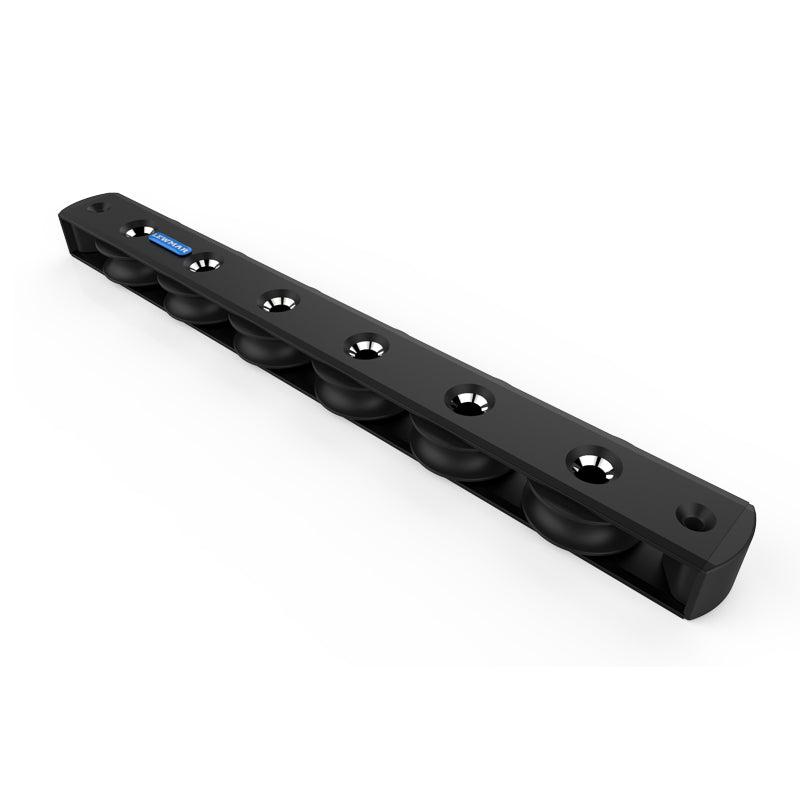

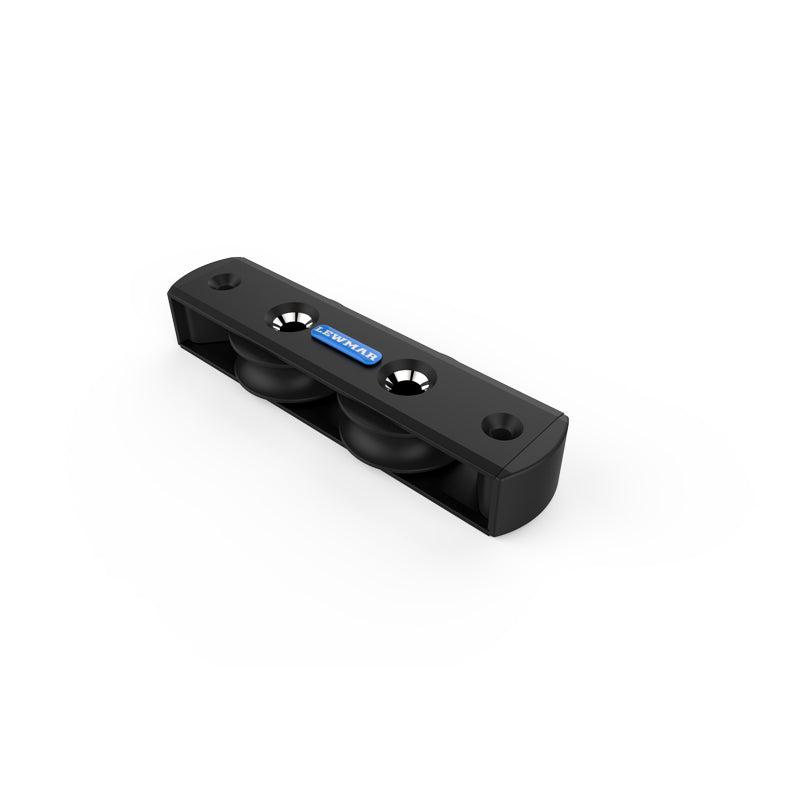

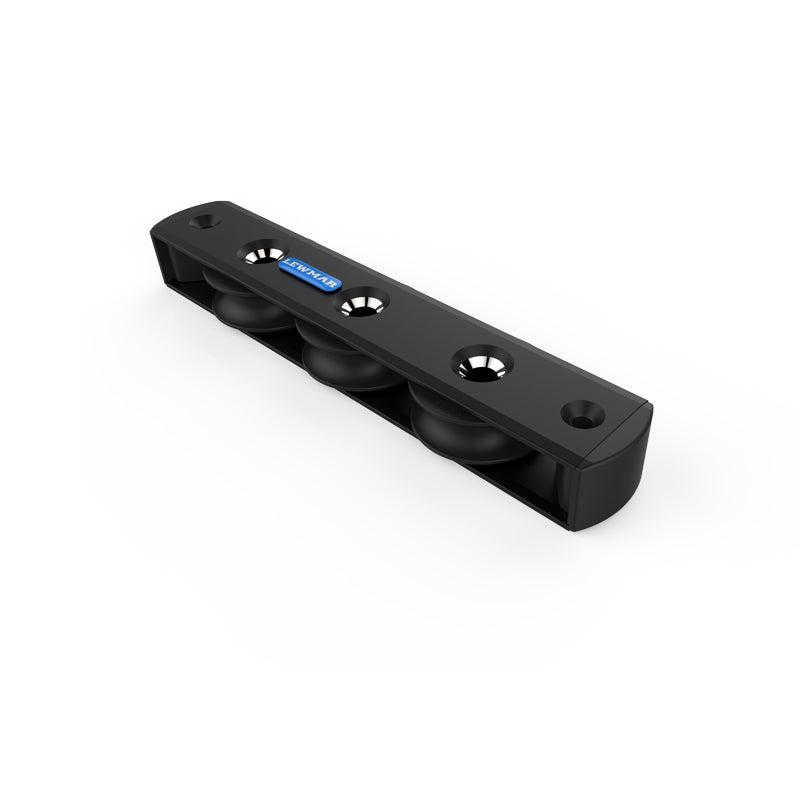

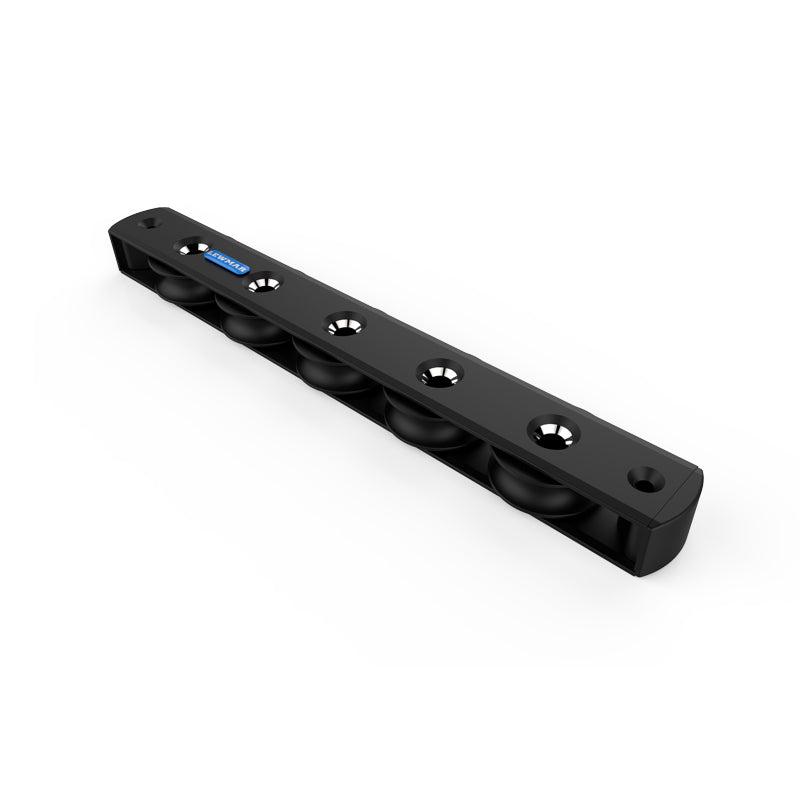

Lewmar Ocean Boat Deck Organiser
Lewmar Ocean Boat Deck Organiser
No reviews
Location: FF59
Get 10% Off Everything*, Use Coupon Code SALE10 *Excludes Liferafts & Windlasses
SKU:LM-29139122BK
Regular price
£53.95
Regular price
Sale price
£53.95
Unit price
/
per
All organisers have space to pass two lines between each sheave.
- Bushed sheaves with side thrust ball bearings
- Wide rope entry
- Tough interchangeable acetal or alloy sheaves (40mm only)
- Stackable
40mm
No. of Sheaves | Working Load Limit | Max Sheave Working Load | Max line Ø | Length | Weight | Sheave Centres | Fixings (Not included) |
---|---|---|---|---|---|---|---|
2 | 1,005kg | 750kg | 10mm | 142mm | 123g | 47mm | M8 |
3 | 1,507kg | 750kg | 10mm | 189mm | 206g | 47mm | M8 |
4 | 2,010kg | 750kg | 10mm | 236mm | 275g | 47mm | M8 |
5 | 2,512kg | 750kg | 10mm | 283mm | 352g | 47mm | M8 |
6 | 3,015kg | 750kg | 10mm | 330mm | 425g | 47mm | M8 |

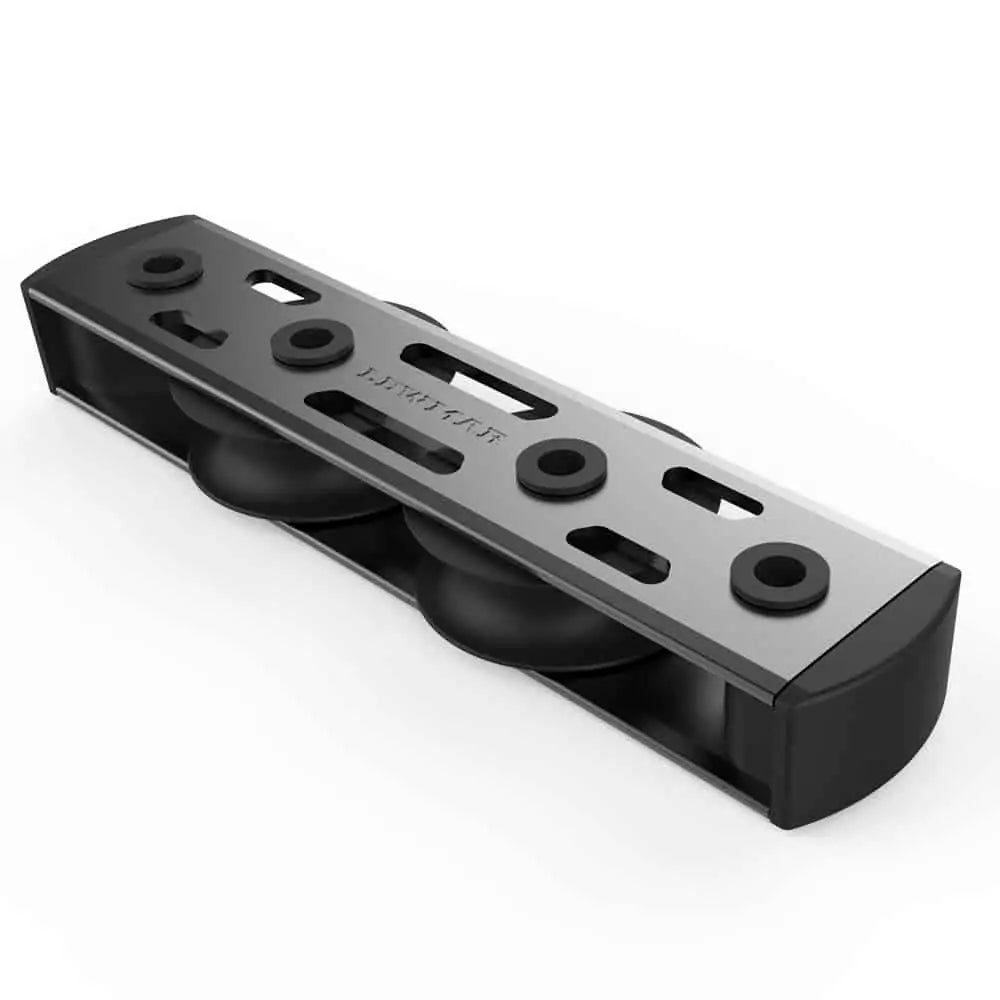

60mm
No. of Sheaves | Working Load Limit | Max Working Load of Sheave | Max line Ø | Length | Weight | Sheave centres | Fixings (Not Included) |
---|---|---|---|---|---|---|---|
2 | 2,400kg | 1,200kg | 14mm | 231mm | 325g | 72mm | M10 |
3 | 3,000kg | 1,200kg | 14mm | 303mm | 435g | 72mm | M10 |
4 | 3,600kg | 1,200kg | 14mm | 375mm | 551g | 72mm | M10 |
5 | 4,200kg | 1,200kg | 14mm | 447mm | 637g | 72mm | M10 |
6 | 4,800kg | 1,200kg | 14mm | 519mm | 775g | 72mm | M10 |
