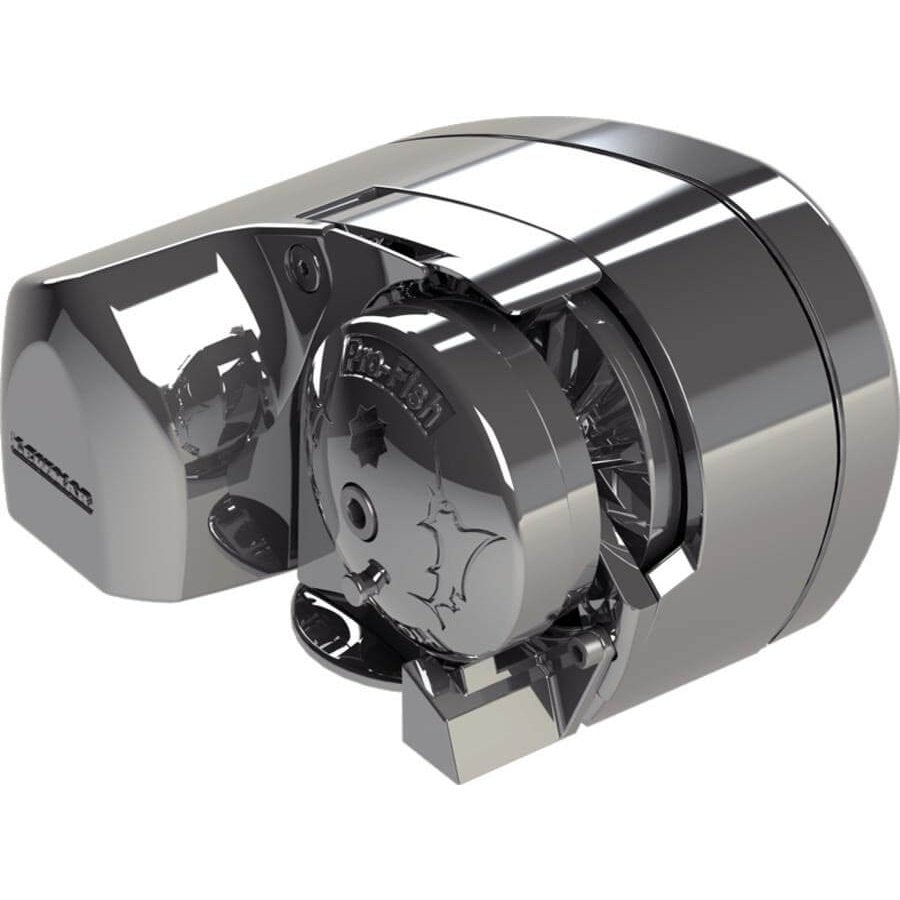

Lewmar Pro-Fish 1000 Horizontal Windlass Kit

Our Pro-Fish model is the ultimate windlass for fishermen. The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision. No more running your motor or wasting fuel while you hover fish. You can retrieve your anchor just as easily, with the push of a button. Plus, the Pro-Fish is DIY ready and made of durable 100% 316 stainless steel.

The Pro-Fish Pb is perfectly suited to installation in the stern of a boat, where it can be utilised for easy Scandinavian style stern anchoring. The automatic free-fall mechanism means access to the windlass is not required to drop or retrieve anchor and the all stainless design is extremely resistant to corrosion.

The gypsy has been specially designed to suit leaded lines up to 16mm in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.

Kit includes:  Windlass, base gasket seal, fast-mounting studs, installation wrench, circuit breaker, dual-direction solenoid and rocker switch

Features

• Automatic freefall
• Powerful motor providing fast line speed
• New guard optimises performance with rope
• New gypsy design for lead line applications
• Manual emergency recovery equipped all you need is a common 1/2 socket wrench
• Strong 100% 316 stainless steel, including control arm and stripper
• Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000
• Convenient above-deck installation
• 5-year warranty
• For boats up to 12m (38ft)
• Free Fall conversion kits
• DIY ready

Gypsy Chain Specification - 8mm DIN 766, 5/16" BBB, 8mm ISO 4565

Gypsy Rope Specification - 14-16mm (9/16 - 5/8") 3 strand & 8-plait (5/8" only)

Technical Specifications

• Max Chain:       8mm (5/16")
• Motor Supply:   12 Volt
• Motor Power:    700W
• Max Pull:          454kg 1000lb
• Working Load:  114kg 250lb
• Max Line Speed:     32 m/min 105 ft/min
• Normal Current Draw:  50A
• Circuit Breaker:     70A
• Weight:                 9.5kg 21lb
