• Lewmar Pro-Series Horizontal Windlass 1000 Kit - 8mm
1 1

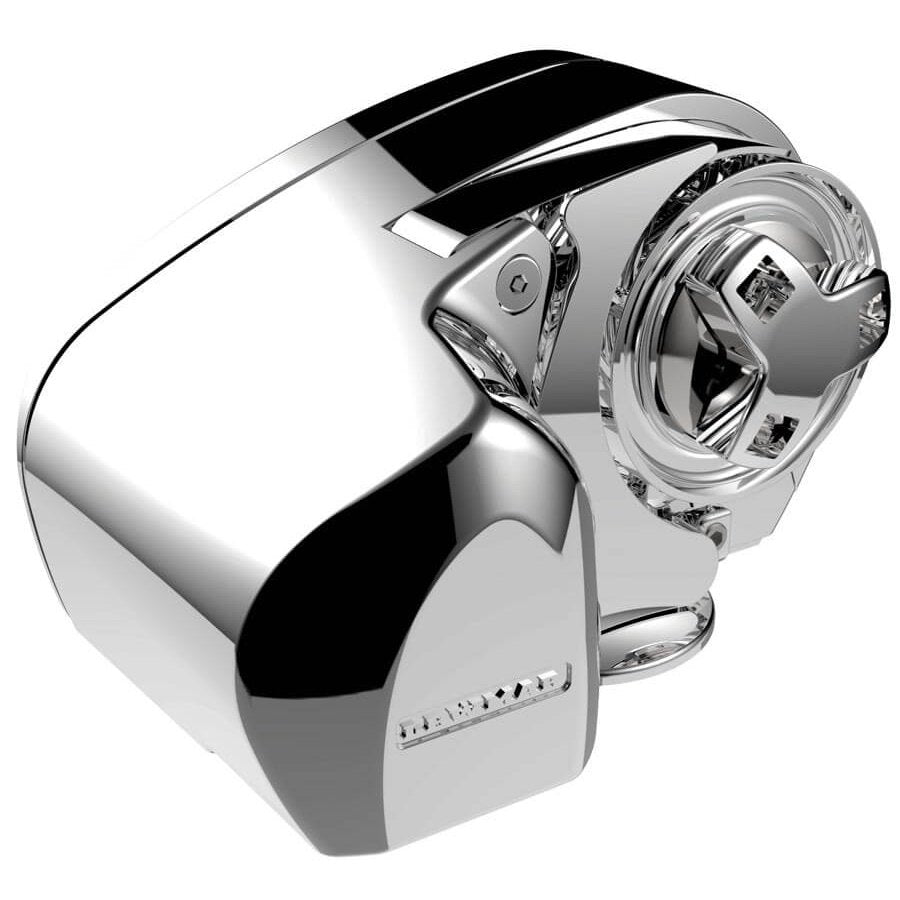

Lewmar Pro-Series 1000 Horizontal Windlass Kit

Lewmar Pro-Series 1000 Horizontal Windlass Kit

Location: RS18

LM-6657011967-311

£775.95
£775.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to provide quality products for boats from 6m-11.5m (20-38ft). It's DIY-ready, easy to install and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system, anchoring has never been easier.

Kit includes:  Windlass, base gasket seal, fast-mounting studs, installation wrench, circuit breaker, dual-direction solenoid and rocker switch

  • Powerful motor providing fast line speed
  • New guard optimises performance with rope
  • New gypsy design for lead line applications
  • Manual emergency recovery equipped all you need is a common 1/2 socket wrench
  • Strong 100% 316 stainless steel, including control arm and stripper
  • Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000
  • Convenient above-deck installation
  • For boats up to 12m (38ft)
  • Free Fall conversion kits
  • DIY ready
Gypsy Chain Specification 6mm DIN 766, 7mm DIN 766, 1/4" ISO G4, 1/4" BBB 8mm DIN 766, 5/16" BBB, 8mm ISO 4565
Gypsy Rope Specification 12mm (1/2") 3 strand & 8-plait 14-16mm (9/16 - 5/8") 3 strand & 8-plait (5/8" only)
Max Chain 6-7mm (1/4") 8mm (5/16")
Motor Supply 12 Volt 12 Volt
Motor Power 700W 700W
Max Pull 454kg 1000lb 454kg 1000lb
Working Load 114kg 250lb 114kg 250lb
Max Line Speed 32 m/min 105 ft/min 32 m/min 105 ft/min
Normal Current Draw 50A 50A
Circuit Breaker 70A 70A
Weight 9.5kg 21lb 9.5kg 21lb
