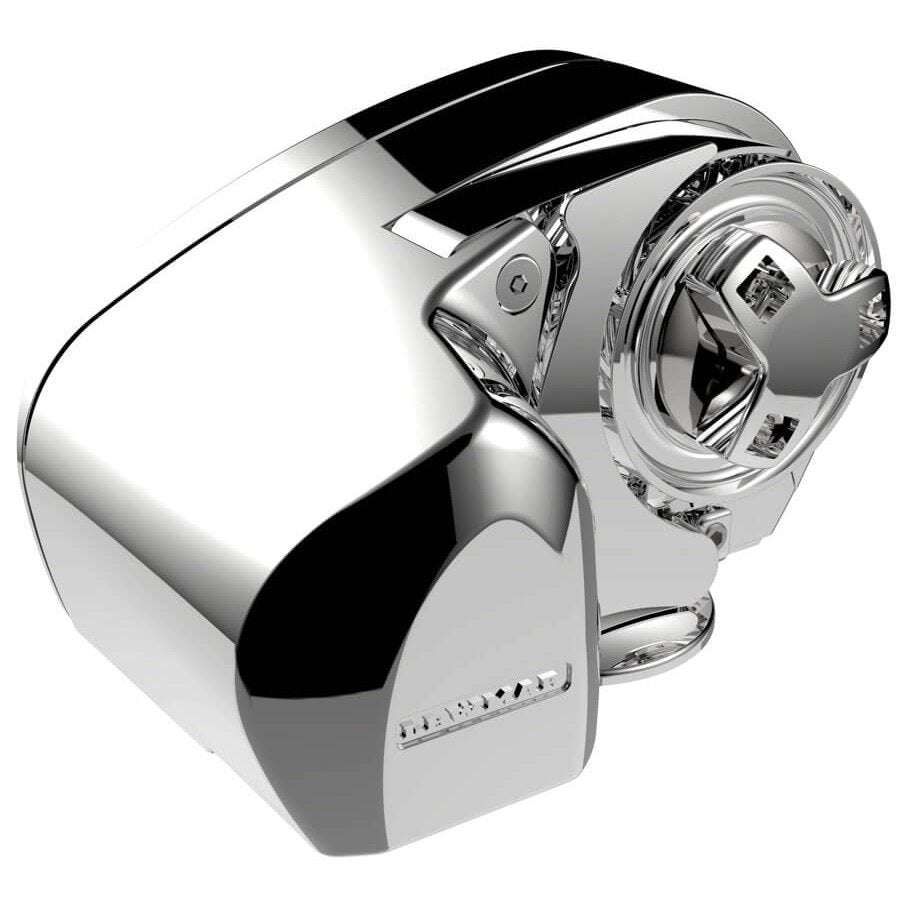

Lewmar Pro-Series 700 Horizontal Windlass Kit

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to provide quality products for boats from 6m-11.5m (20-38ft). It's DIY-ready, easy to install and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system, anchoring has never been easier.

Kit includes:  Windlass, base gasket seal, fast-mounting studs, installation wrench, circuit breaker, dual-direction solenoid and rocker switch

Features

• Powerful motor providing fast line speed
• New guard optimises performance with rope
• New gypsy design for lead line applications
• Manual emergency recovery equipped all you need is a common 1/2 socket wrench
• Strong 100% 316 stainless steel, including control arm and stripper
• Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000
• Convenient above-deck installation
• 5-year warranty
• For boats up to 12m (38ft)
• Free Fall conversion kits
• DIY ready

Gypsy Chain Specification - 6mm DIN 766, 7mm DIN 766, 1/4" ISO G4, 1/4" BBB

Gypsy Rope Specification - 12mm (1/2") 3 strand & 8-plait

Technical Specifications

• Max Chain:       7mm (1/4")
• Motor Supply:   12 Volt
• Motor Power:    500W
• Max Pull:          320kg 700lb
• Working Load:  79kg 175lb
• Max Line Speed:     32 m/min 105 ft/min
• Normal Current Draw:  35A
• Circuit Breaker:     50A
• Weight:                 8.5kg 19lb
