Lewmar Standard Non Self-Tailing Winches
Lewmar Standard Non Self-Tailing Winches
No reviews
Location: Z103, FF51, and Z111
SKU:LM-49006010
Regular price
£183.95
Regular price
Sale price
£183.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

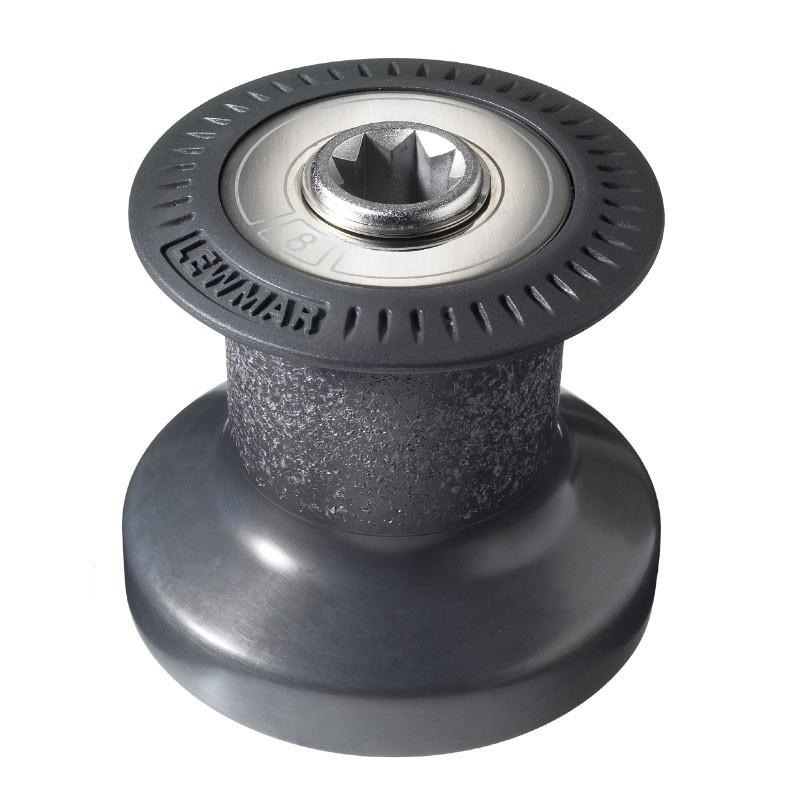

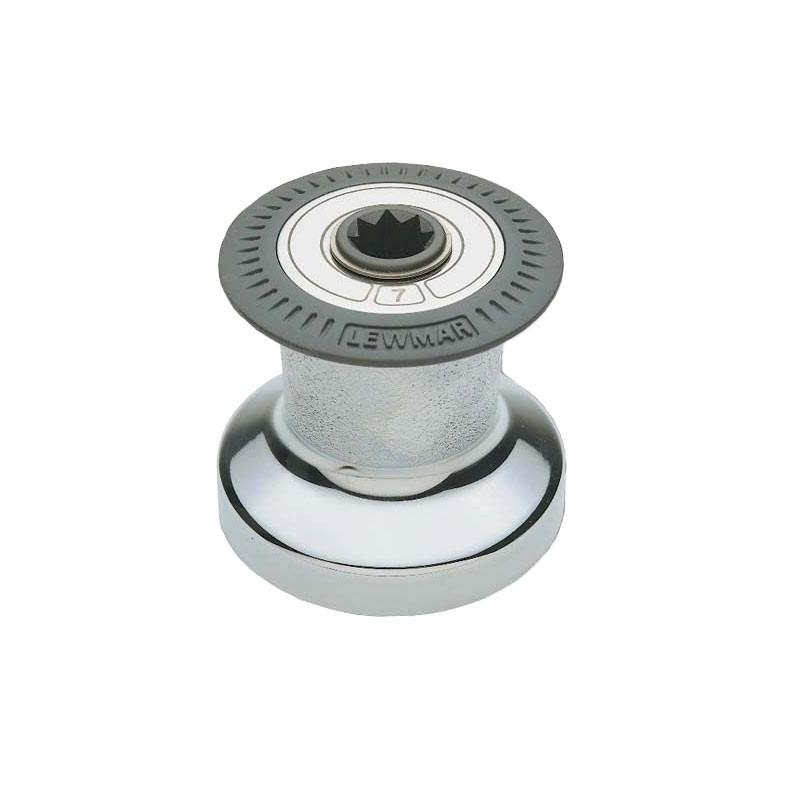

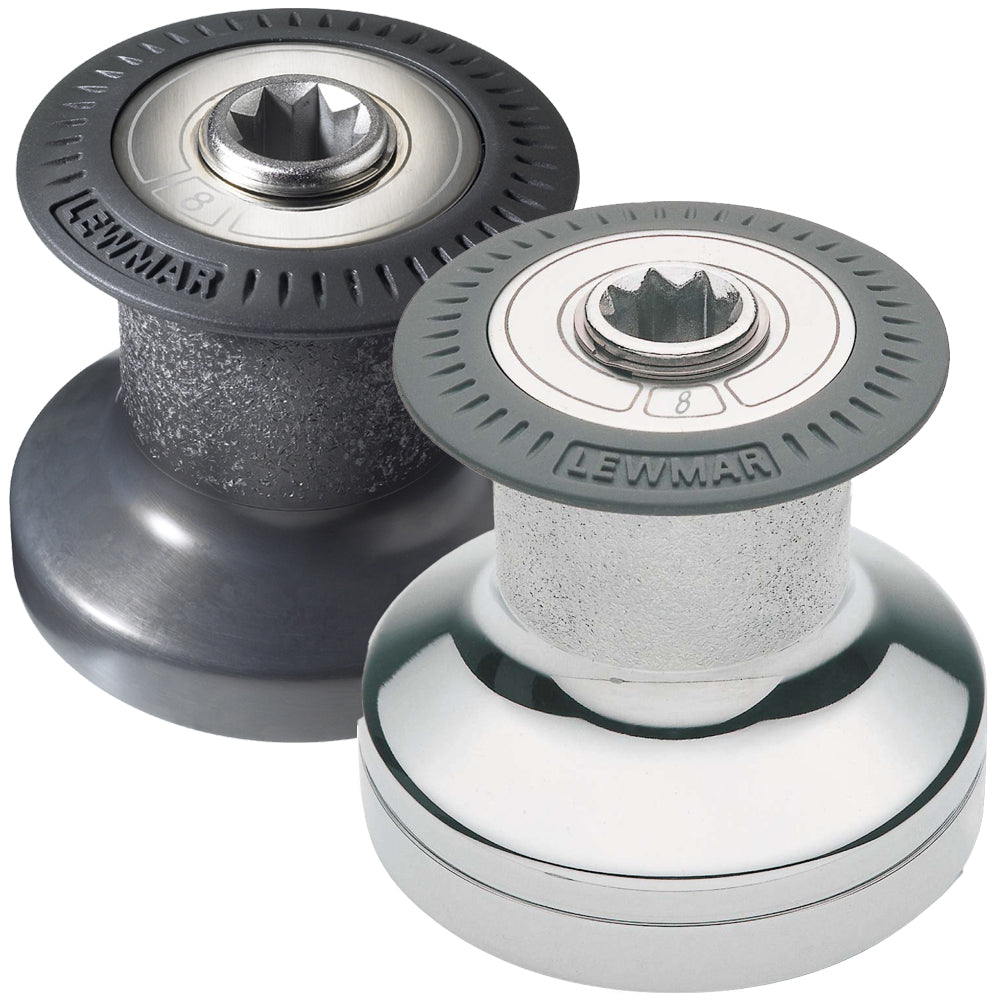

The Standard Winch is a high-quality, hard-wearing control solution. The long glass-fibre reinforced, composite plastic stem is strong and light, while also providing efficient plain bearing
Best suited for sport boats requiring constant trimming and where weight consideration is a premium. Also suitable as mast mounted winches.
- Architecture based on self tailing Winches
- Tool-free servicing
- Choice of finishes: Black alloy or Chrome bronze
- Single speed on models 6, 7, 8. Two Speed on model 16

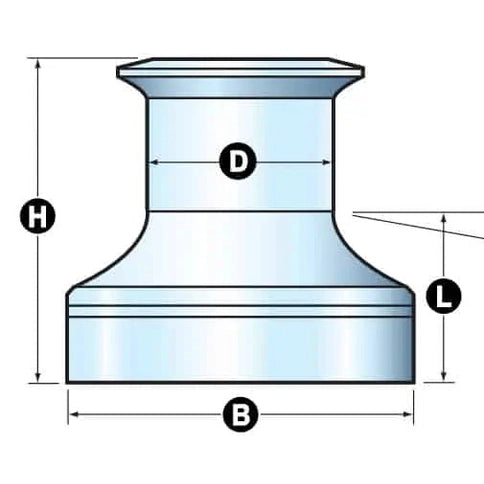

Part No. | Model Finish | Gear Ratio | Power Ratio |
SWL | Weight | D Drum Dia |
B Base Dia |
H Height |
L Line Entry |
L49006010 | 6 Alloy |
1st (1:1) |
1st (6.8:1) |
341kg | 0.5kg | 59mm | 94mm | 83mm | 35.5mm |
L19006100 | 6 Chrome |
1st (1:1) |
1st (6.8:1) |
341kg | 1.1kg | 59mm | 94mm | 83mm | 35.5mm |
L49007030 | 7 Alloy |
1st (1:1) |
1st (7.9:1) |
341kg | 0.8kg | 65mm | 108mm | 102mm | 40mm |
L49007032 | 7 Chrome |
1st (1:1) |
1st (7.9:1) |
341kg | 1.7kg | 65mm | 108mm | 102mm | 40mm |
L49008030 | 8 Alloy |
1st (1:1) |
1st (7.9:1) |
455kg | 1.4kg | 65mm | 108mm | 103mm | 40mm |
L49008032 | 8 Chrome |
1st (1:1) |
1st (7:9:1) |
455kg | 2.6kg | 65mm | 108mm | 103mm | 40mm |
L49016030 | 16 Alloy |
1st (1:1) 2nd (2:1) |
1st (7.9:1) 2nd (16:1) |
570kg | 2.1kg | 67mm | 120mm | 112mm | 55mm |
Â
Usual lead time from point of order - 4 - 6 weeks minimum
