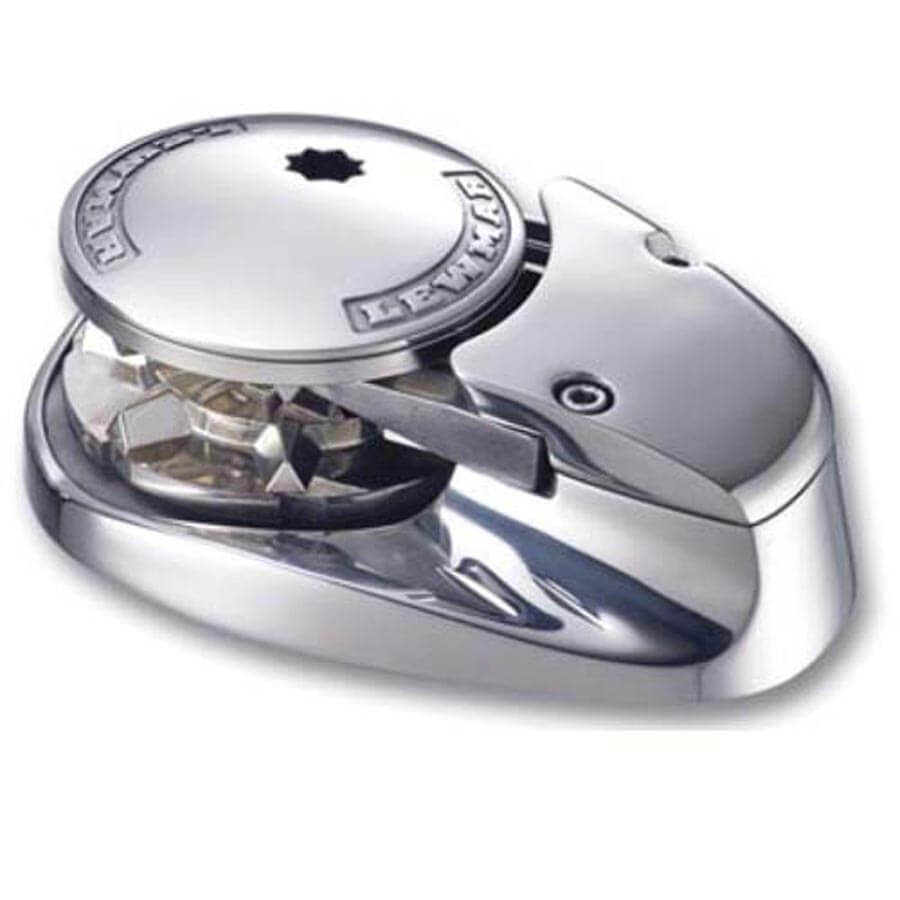

Lewmar V700 Vertical Stainless Steel Windlass 6mm Gypsy

Lewmar V700 Stainless Steel Windlass 6mm Gypsy.  Ref17:  AF- L6670011108-312

With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market. It works at the push of a button and has two built-in features that make it unique – motor protection and anchor lock.

DUAL CHAIN GYPSY

• Fits calibrated chains: 6mm DIN766, 1⁄4" G4 or BBB,
• 7mm DIN766
• Minimal parts for enhanced reliability
• 100% 316 stainless steel deck unit
• IP67 Rated (Waterproof to 1 meter)
• Fall Safe anchor lock
• Fast line speed
• Manual recovery option
• Impact-resistant motor cover
• 5-year warranty
• For boats up to 10.5m (35 ft)
• Magnet & sensor kit available on request
• Cable Sizes for V700 (12V): 0-15mtr/0-50ft: 10mm2/8AWG
• Switch Wiring: 1.5mm2/16AWG
• Current rating for switch wire: 5A

• Motor Supply Voltage:  12V DCM
• Motor Power Watts:  320W
• Typical Max Pull:  320kg (700lbs)
• Max Line Speed:  25mtr / min (82ft / min)
• Working Load:  79kg (175lb)
• Normal Current Draw:  45A
• Typical Line Speed / Min:  15mtr (50ft)
• Weight Gypsy Only:  6.5kg (14lb)
• Circuit Breaker:  35A
