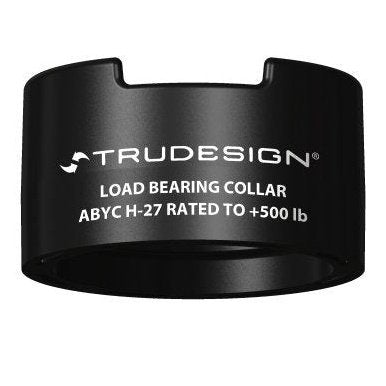

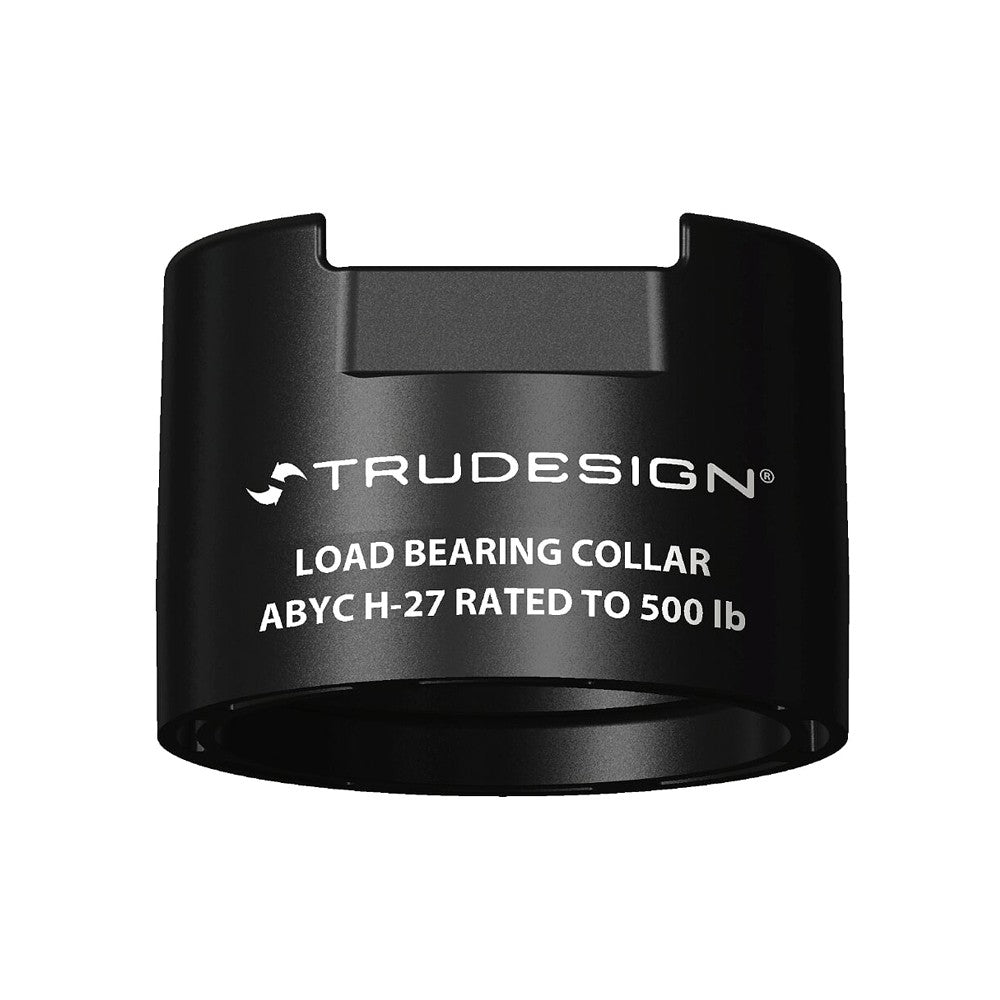

TruDesign Load Bearing Collar

TruDesign Load Bearing Collar

Location:

SKU:MZ-58113

Regular price £16.95
Regular price Sale price £16.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

TruDesign Load Bearing Collars are designed for use with TruDesign Skin Fittings and Ball Valves.
With the Collar in place, the Skin Fitting-Ball Valve-Hose Tail assembly will withstand a 500 lb (227 kg) static force applied to the Hose Tail end of the assembly, for a minimum of 30 seconds

  • ABYC H-27 500Lb compliance for ¾”, 1”, 1¼”, 1½”, and 2" sized assemblies. Independently verified by IMANNA Laboratory, Inc. (USA).
  • Compact footprint
  • No additional bolts or fasteners through or on to the hull
  • Ability to retrofit to existing TruDesign assemblies
  • Compatible with all hull types across a wide range of hull thicknesses – download product info sheet above
  • Shrouded protection
  • Fool-proof assembly - if not snug when tightened the Skin Fitting's length will need shortening. See info sheet.
  • Manufactured from a glass reinforced nylon composite
  • Immune to corrosion and electrolysis
  • The Small collar fits 1/2, 3/4, and 1 inch Ball Valves
  • The Medium collar fits 1 1/4 and 1 1/2 inch Ball Valves
  • The Large collar fits 2 inch Ball Valves
TruDesign Part Number Size
90856 Small
90857 Medium
90920 Large
