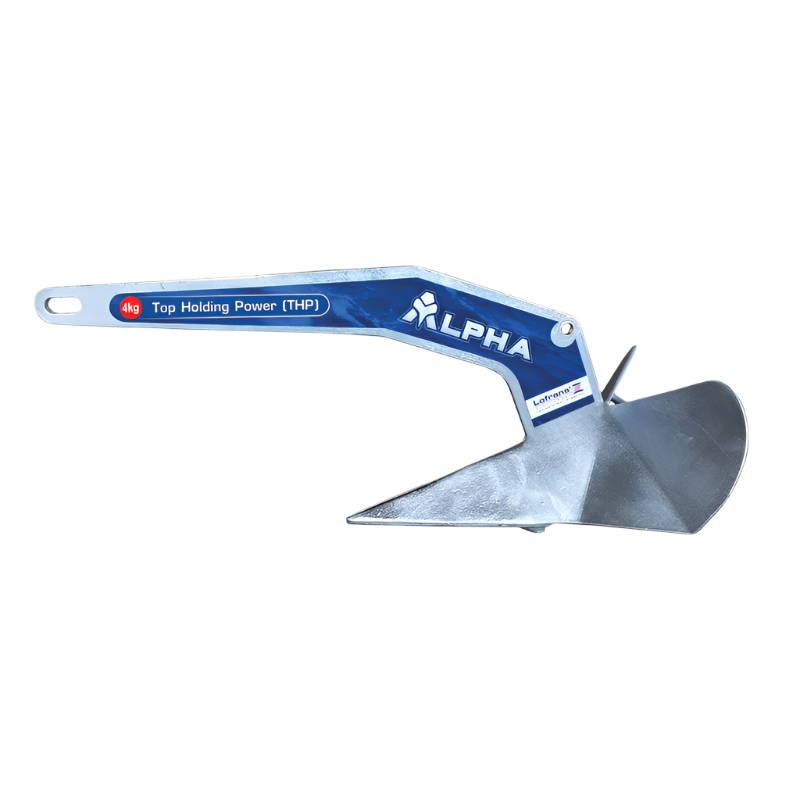

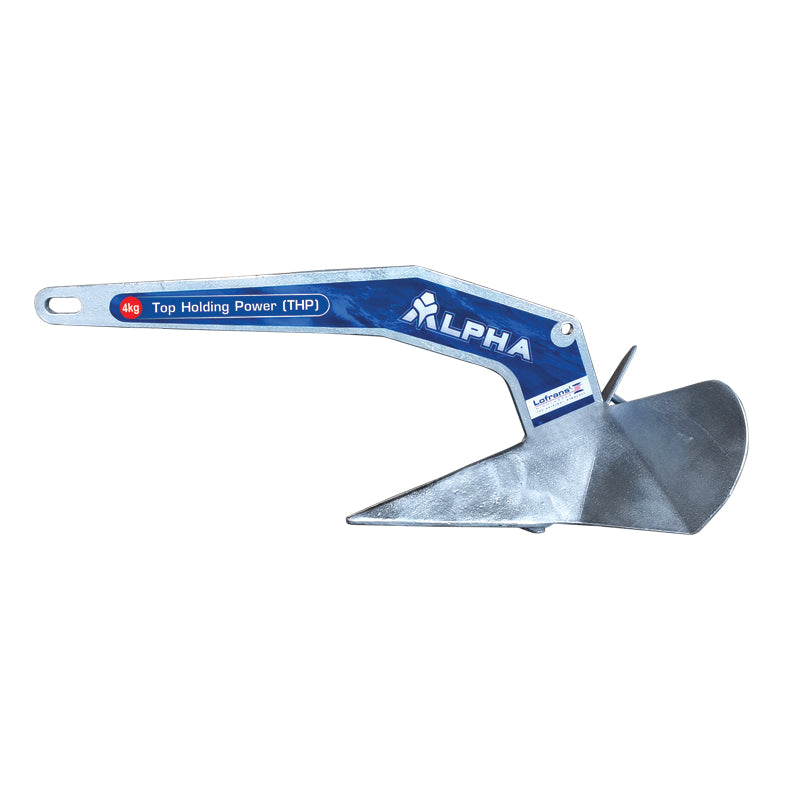

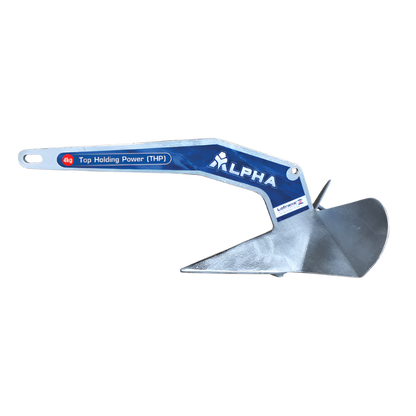

Lofrans ALPHA Delta Style Galvanised Steel Wing Anchor
Lofrans ALPHA Delta Style Galvanised Steel Wing Anchor
No reviews
Location:
SKU:LA-75460
Regular price
£45.95
Regular price
Sale price
£45.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Top holding power Delta Type anchor
- Hot-dip Galvanized
- Equipped with a lead-filled tip to ensure stability and consistent recovery
| Item Code | Item Description | Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| 75460 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 4kg | 4kg | 217 | 514 | 230 | 8 | 210 | 387 |
| 75461 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 6kg | 6kg | 254 | 593 | 265 | 10 | 243 | 450 |
| 75462 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 10kg | 10kg | 293 | 695 | 310 | 12.5 | 282 | 526 |
| 75463 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 16kg | 16kg | 339 | 812 | 362 | 12.5 | 328 | 614 |
| 75464 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 20kg | 20kg | 370 | 877 | 392 | 16 | 357 | 663 |
| 75465 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 25kg | 25kg | 397 | 945 | 415 | 16 | 387 | 713 |
| 75466 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 32kg | 32kg | 425 | 1023 | 453.5 | 20 | 435 | 833 |
| 75467 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 40kg | 40kg | 461 | 1099 | 489 | 20 | 435 | 833 |
| 75468 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 50kg | 50kg | 486 | 1175 | 523 | 20 | 479 | 890 |
| 75469 | Lofrans' Anchor ALPHA, Top Holding Power (THP), Hot-Dip Galvanized, 63kg | 63kg | 537 | 1270 | 567 | 22 | 508 | 963 |
