Lofrans IRIS II Panel Chain Counter

The Lofrans IRIS II is a wired, bulkhead-mounted panel chain counter for flybridges and boat cockpits. Its 3-inch backlit LCD displays chain speed, deployed mooring length in metres or feet and windlass-system voltage. Choose code 600017 in grey or code 600117 in black.

The IRIS II combines three-button windlass control with chain-counter information in a compact panel measuring 110 × 105 × 15mm. Its high-visibility LCD has eight contrast levels, allowing the screen to be adjusted for different cockpit lighting conditions.

An advanced microprocessor supports an anchor-up alarm, key-tone adjustment and operation of compatible free-fall windlasses. The menu is available in six languages: Italian, English, French, German, Spanish and Greek.

The controller uses wired command transmission and supports parallel connection with compatible windlass controls. A push-in termination connector simplifies wiring and does not require a specialist termination tool.

Both colour variants operate from a 12–24V DC supply and have a maximum contact amperage of 2A. The unit is rated IP67 when correctly installed and is specified for operation from −10°C to +60°C. The listed weight is 225g with the protective cover fitted.

Key Features

• Lofrans IRIS II panel chain counter
• Flybridge and cockpit installation
• Wired command transmission
• Three control buttons
• 3-inch high-visibility LCD
• Backlit display
• Eight display-contrast levels
• Chain-speed indicator
• Mooring-length display in metres or feet
• System-voltage indicator
• Anchor-up alarm sensor
• Adjustable key tones
• Six-language menu
• Compatible with suitable free-fall windlasses
• Supports parallel connection
• Push-in termination connector
• No specialist termination tool required
• IP67 protection rating when installed
• 12–24V DC operating voltage
• 2A maximum contact amperage
• Operating temperature from −10°C to +60°C
• Grey and black versions available
• Two-year limited warranty

Variant Guide

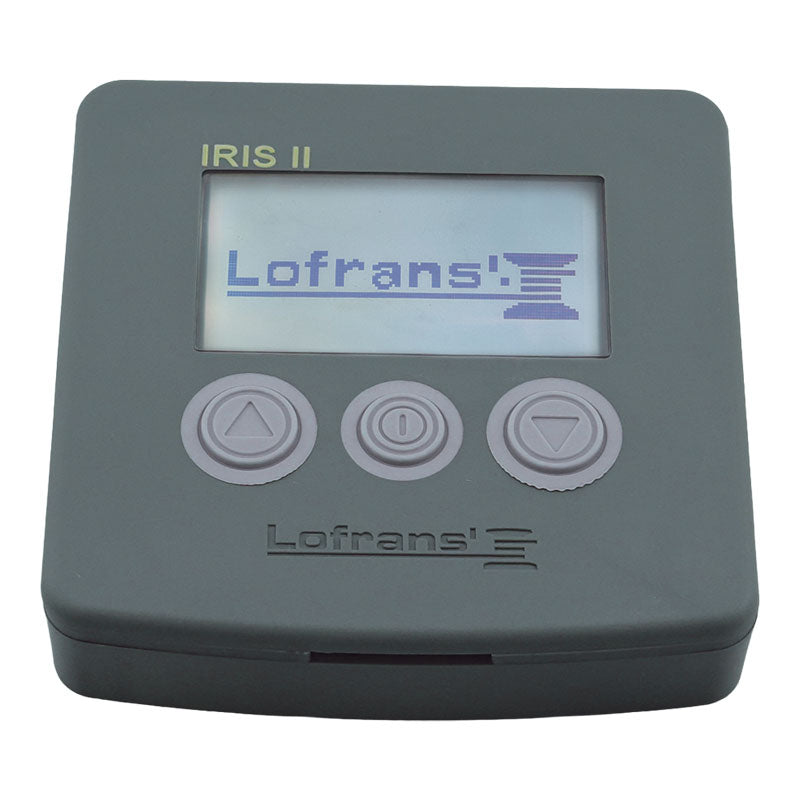

• 600017: Grey IRIS II panel chain counter

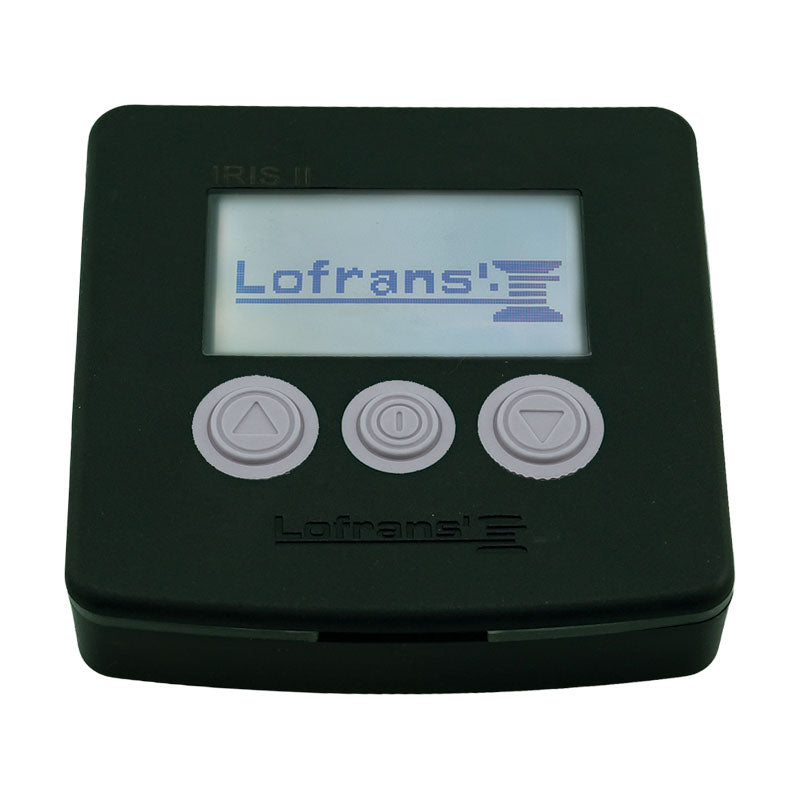

• 600117: Black IRIS II panel chain counter

Frequently Asked Questions

What is the Lofrans IRIS II used for?
The IRIS II controls a compatible electric anchor windlass while displaying chain speed, deployed mooring length and electrical-system voltage.

What is the difference between 600017 and 600117?
Code 600017 is grey and code 600117 is black. Their listed control functions and technical specifications are otherwise the same.

Does the IRIS II display deployed chain length?
Yes. It displays mooring length in either metres or feet.

Does it display chain speed?
Yes. Chain speed is shown on the LCD.

Does the IRIS II display current consumption?
The manufacturer datasheet specifies a voltage indicator but does not list a current-consumption display.

What voltage does the IRIS II require?
The specified operating supply is 12–24V DC.

Can it control a free-fall windlass?
Yes. The IRIS II is specified as able to control compatible free-fall windlasses.

Does it include an automatic anchor-dropping function?
The datasheet confirms free-fall windlass control but does not separately list an automatic anchor-dropping programme. Compatibility and operating behaviour depend on the connected windlass and control installation.

What languages are available?
The six menu languages are Italian, English, French, German, Spanish and Greek.

Is the IRIS II waterproof?
It carries an IP67 protection rating when correctly installed. The installation and panel sealing must maintain the stated protection level.

Can it be installed alongside another control?
Yes. Parallel connection is listed as a standard function.

Does the wiring connector require a special tool?
No. The push-in termination connector is designed not to require a specialist termination tool.

What are the dimensions and weight?
The unit measures 110 × 105 × 15mm. Its listed weight is 225g with the protective cover fitted.
