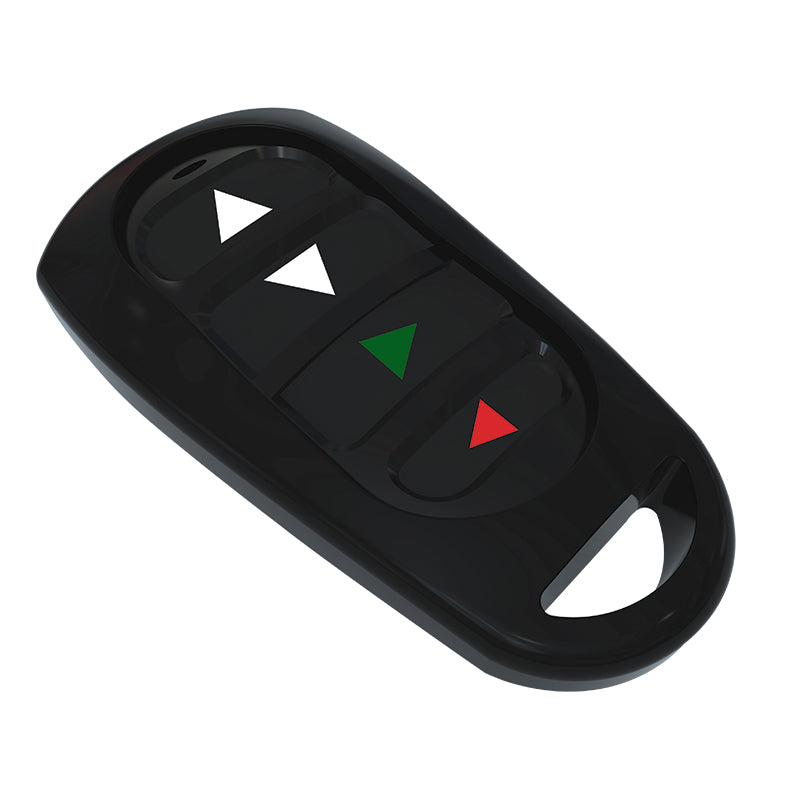

Lofrans Mini Windlass 4 Button Remote Control
Lofrans Mini Windlass 4 Button Remote Control
SKU: LA-636305
The Lofrans 636305 Mini Remote Control is a 433MHz RF transmitter and receiver kit designed for windlasses and onboard equipment. It supports 4 independent channels, operates on 12/24V (receiver) and features an IP67-rated transmitter.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
The Lofrans 636305 Mini Remote Control is a 433MHz RF transmitter and receiver kit designed for windlasses and onboard equipment. It supports 4 independent channels, operates on 12/24V (receiver) and features an IP67-rated transmitter.
The Lofrans 636305 Mini Remote Control is a compact RF control system designed to operate Lofrans windlasses and other onboard equipment such as thrusters, passerelles and cranes.
What is this used for?
- Remote control of anchor windlasses
- Operation of onboard equipment (thrusters, passerelles, cranes)
Control Functions
- 4 independent control channels
- 4-button transmitter
Electrical Specifications
- Receiver voltage: 12–24V DC
- Transmitter voltage: 3V
- Maximum contact amperage: 10A
Wireless Operation
- Frequency: 433 MHz
- Zero power consumption in standby (transmitter)
Environmental Ratings
- Transmitter protection: IP67
- Operating temperature: -10°C to +60°C
Included in the Package
- Transmitter
- Receiver
Compatibility Notes
- Designed for Lofrans windlasses
- Can be used with other onboard equipment when correctly interfaced
- Maximum contact load: 10A
| Specification | 636305 |
|---|---|
| Brand | Lofrans |
| Part Number | 636305 |
| Product Type | Mini Remote Control (Transmitter & Receiver) |
| Frequency | 433 MHz |
| Number of Buttons | 4 |
| Control Channels | 4 Independent Channels |
| Receiver Voltage | 12–24V DC |
| Transmitter Voltage | 3V |
| Max Contact Amperage | 10A |
| Operating Temperature | -10°C to +60°C |
| IP Rating (Transmitter) | IP67 |
| Standby Consumption | Zero (Transmitter) |
| Weight | 31g (Transmitter) / 95g (Receiver) |
| Dimensions | 71.8×38×17.7 mm (Tx) / 100.5×61×25 mm (Rx) |
| Included | Transmitter & Receiver (EU/USA) |
| Primary Use | Windlass & Onboard Equipment Control |
Specification
Specification
| Specification | 636305 |
|---|---|
| Brand | Lofrans |
| Part Number | 636305 |
| Product Type | Mini Remote Control (Transmitter & Receiver) |
| Frequency | 433 MHz |
| Number of Buttons | 4 |
| Control Channels | 4 Independent Channels |
| Receiver Voltage | 12–24V DC |
| Transmitter Voltage | 3V |
| Max Contact Amperage | 10A |
| Operating Temperature | -10°C to +60°C |
| IP Rating (Transmitter) | IP67 |
| Standby Consumption | Zero (Transmitter) |
| Weight | 31g (Transmitter) / 95g (Receiver) |
| Dimensions | 71.8×38×17.7 mm (Tx) / 100.5×61×25 mm (Rx) |
| Included | Transmitter & Receiver (EU/USA) |
| Primary Use | Windlass & Onboard Equipment Control |
