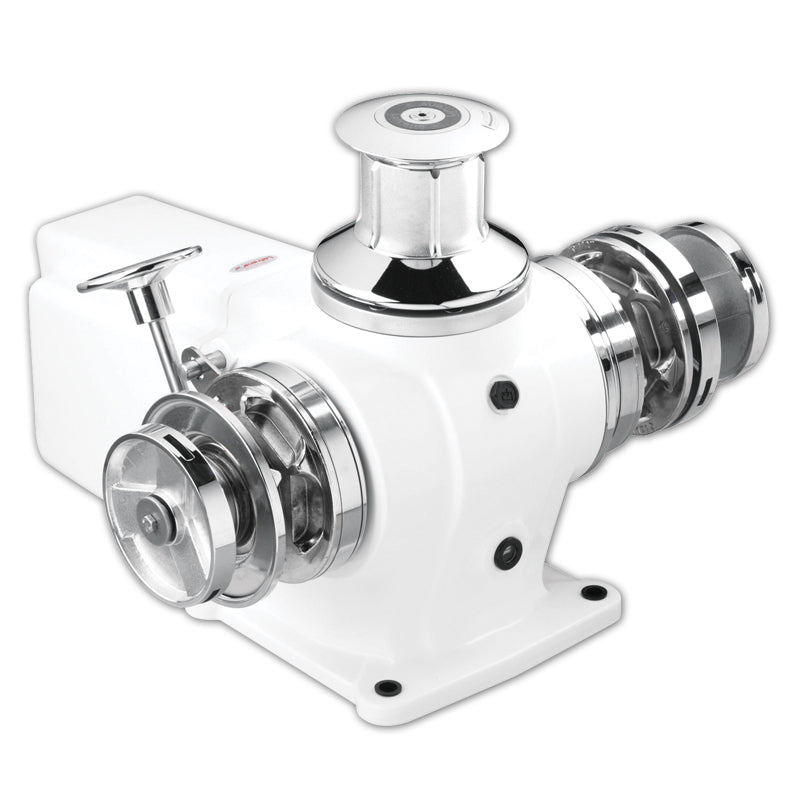

Lofrans Titan Type A Horizontal Electric Windlass - With Drum

Lofrans Titan Type A Horizontal Electric Windlass - With Drum

Location:

Get 10% Off Everything*, Use Coupon Code BLACK10 *Excludes Liferafts & Windlasses

SKU:LA-428938

Regular price £6,749.99
Regular price Sale price £6,749.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Size
Style & Voltage

Horizontal windlasses are installed on the deck and feature a horizontal rotation in relation to the deck. They are recommended for chain lockers with a reduced height or volume. The electric motor and the gearbox are protected by a cover and they are easily accessible for maintenance.

Also keep in mind that the height between the top of the stacked chain and the underdeck must be 300 mm minimum in order to ensure a fast dropping of the chain in the locker and an optimum performance of the windlass.

  • With Drum
  • Anodised Aluminium
  • Weight: 115 kg
  • Independent gypsy and drum operation
  • Manual chain release
  • Manual override
  • Motor IP-rating 66 (12/24V)

Technical Specs

MPN Circuit Breaker Construction Control Box Gipsy For Chain Hydraulic Flow Hydraulic Pressure Line Speed at W.L Max Line Speed Maximum Pull Model type Motor size Net Weight Power Supply Type Amps at Working Load (A)
Working load (kg)
404724
Anodised Aluminium
Included in package 12 mm, ISO 4565
13 mm, DIN 766
- - 10 m/min 18 m/min 2800 kg Type A 2300 W 115 kg 24 V With Drum 140 430
426415
Anodised Aluminium
Included in package 14 mm, DIN 766 - - 10 m/min 18 m/min 2800 kg Type B 2300 W 115 kg 24 V With Drum 140 430
428938
Anodised Aluminium
Included in package 12 mm, ISO 4565
13 mm, DIN 766
- - 10 m/min 18 m/min 2800 kg Type B 2300 W 115 kg 24 V With Drum 140 430
600072
Anodised Aluminium
Included in package 14 mm, DIN 766 - - 10 m/min 18 m/min 2800 kg Type A 2300 W 115 kg 24 V With Drum 140 430
600839
600846 White Aluminium Switchboard available separately 12 mm, ISO 4565
13 mm, DIN 766
- - 11 m/min 11 m/min 2800 kg Type A 3600 W 115 kg 230-400 V With Drum - 540
600847
Anodised Aluminium
Switchboard available separately 14 mm, DIN 766 - - 11 m/min 11 m/min 2800 kg Type A 3600 W 115 kg 230-400 V With Drum - 540
602423
Anodised Aluminium
- 12 mm, ISO 4565
13 mm, DIN 766
32 lt/min 200 bar 11 m/min 11 m/min 3400 kg Type A Hydraulic-9cc 95 kg - With Drum - 540
602424
Anodised Aluminium
- 14 mm, DIN 766 32 lt/min 200 bar 11 m/min 11 m/min 3400 kg Type A Hydraulic-9cc 95 kg - With Drum - 540
602468
Anodised Aluminium
- 12 mm, ISO 4565
13 mm, DIN 766
32 lt/min 200 bar 11 m/min 11 m/min 3400 kg Type B Hydraulic-9cc 95 kg - With Drum - 540
602469
Anodised Aluminium
- 14 mm, DIN 766 32 lt/min 200 bar 11 m/min 11 m/min 3400 kg Type B Hydraulic-9cc 95 kg - With Drum - 540
