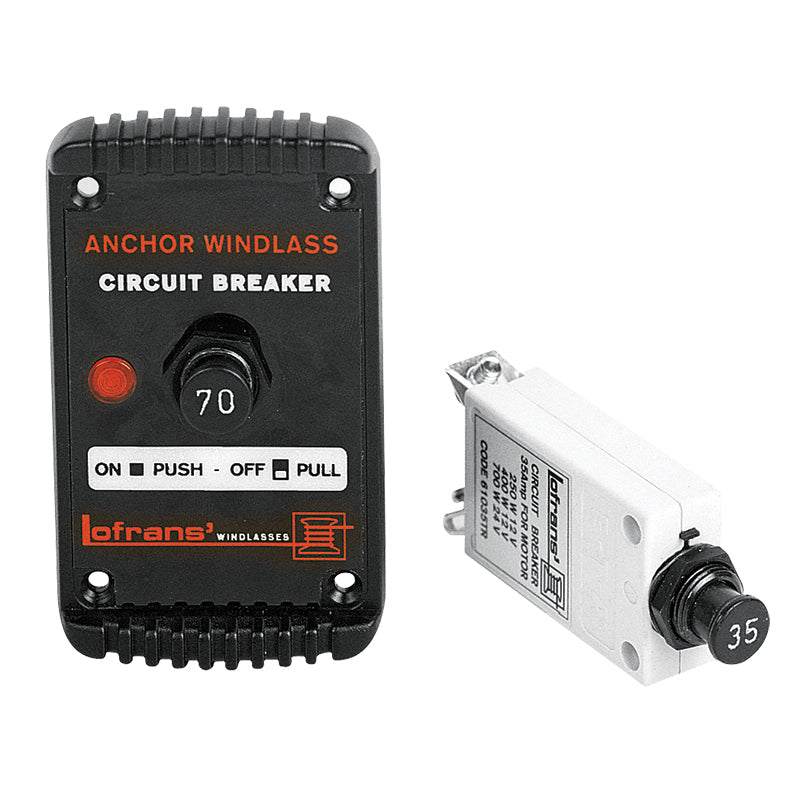

Lofrans Windlass Circuit Breaker

Lofrans windlass circuit breakers protect an electric anchor-windlass installation against short circuits and motor overload while also providing a manual isolation point. The range covers 35A, 40A, 70A, 80A, 100A and 125A ratings in thermal, thermal-magnetic and hydraulic-magnetic configurations.

The circuit breaker is installed within the windlass electrical system to perform three functions: protect against dangerous short circuits, protect the windlass motor and allow the electrical supply to the windlass to be disconnected when required.

Lofrans states that intervention is immediate during a short circuit. The motor-protection intervention curve was developed in cooperation with E-T-A Germany for electric windlass applications. After the breaker has intervened and the fault has been addressed, it can be reset and reactivated.

Key Features

• Lofrans circuit breakers for electric anchor windlasses
• Provides short-circuit protection
• Protects the windlass electric motor
• Provides manual windlass power isolation
• Resettable after intervention
• Motor-protection curve developed with E-T-A Germany
• Thermal ratings from 35A to 125A
• Hydraulic-magnetic ratings of 40A, 80A and 100A
• Mounting plate supplied with every listed model
• LED explicitly included with part numbers 187331-187334

Frequently Asked Questions

What is a Lofrans windlass circuit breaker used for?
It protects the windlass electrical circuit against short circuits and protects the windlass motor from excessive current. It also allows the power supply to the windlass to be manually isolated.

Which amperage ratings are available?

• 35A: Part number 187331
• 40A: Part number 600029
• 70A: Part number 187332
• 80A: Part number 630616
• 100A thermal-magnetic: Part number 187333
• 100A hydraulic-magnetic: Part number 600028
• 125A thermal-magnetic: Part number 187334

Can the circuit breaker be reset after it trips?
Yes. Lofrans states that the breaker can be reactivated after intervention. The cause of the trip should be identified and corrected before resetting it.

Does every breaker include an LED?
The individual descriptions for part numbers 187331, 187332, 187333 and 187334 explicitly include a mounting plate and LED. The descriptions for hydraulic-magnetic models 600028, 600029 and 630616 list a mounting plate but do not specify an LED.

Can the breaker be used as a windlass on/off switch?
It can be used to interrupt the electrical supply to the windlass when required. Normal windlass up/down operation still requires the appropriate switches, solenoid or control box.

How do I select the correct circuit breaker?
Use the circuit-breaker part number specified for the exact windlass model, motor, operating voltage and electrical installation. Do not select the breaker solely by matching its amperage rating.
