Lofrans Windlass Foot Switch

Lofrans marine footswitches provide foot-operated control for compatible windlass and onboard control systems. Choose code 600011 for a red DOWN switch, 600012 for a black UP switch or 602121 for a blue WASH DOWN switch. Each model operates on 12-24V DC, is rated IP67 and has a 5A maximum contact rating.

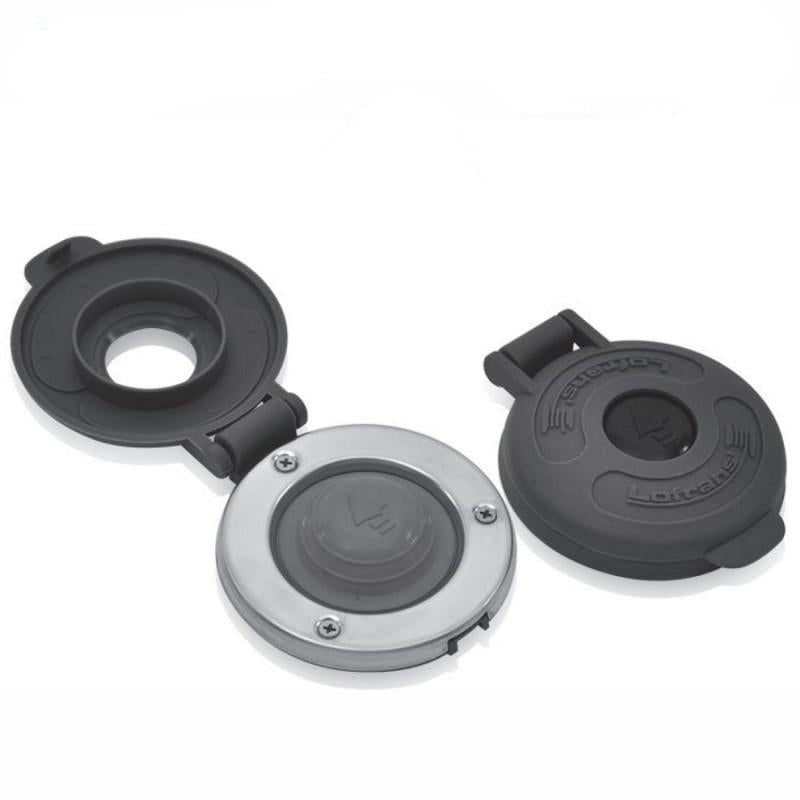

The footswitch is operated by pressing the rubber button with the foot, allowing the operator to keep their hands available during anchoring or washdown operations. Its compact deck-mounted design measures 80 x 95 x 20mm and weighs 100g.

The base is manufactured from stainless steel, while the grey composite cover helps protect the button against accidental engagement. The button is made from specialised marine rubber designed to withstand UV exposure and the marine environment.

All three variants are rated IP67 and are specified for operating temperatures from -10°C to +60°C. The electrical system must operate at 12-24V DC and remain within the published maximum contact rating of 5A.

Key Features

• Genuine Lofrans marine footswitch
• Foot-operated deck control
• Stainless-steel base
• Grey composite protective cover
• Marine-rubber button
• UV- and marine-environment-resistant button material
• Cover helps prevent accidental engagement
• IP67 protection rating
• 12-24V DC operating voltage
• 5A maximum contact rating
• Operating temperature from -10°C to +60°C
• Dimensions: 80 x 95 x 20mm
• Weight: 100g
• UP, DOWN and WASH DOWN versions available

Function by Part Number

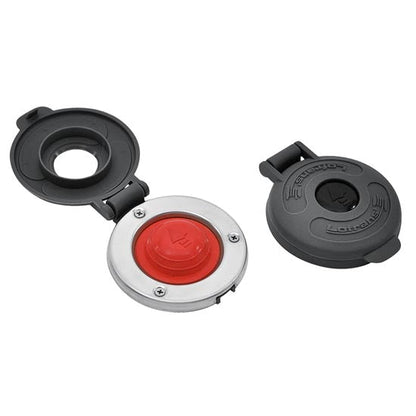

• 600011: Red button with grey cover - DOWN
• 600012: Black button with grey cover - UP

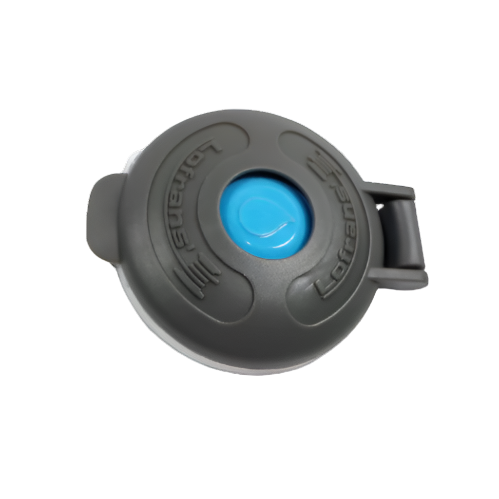

• 602121: Blue button with grey cover - WASH DOWN

Frequently Asked Questions

What is a Lofrans footswitch used for?
It provides foot-operated control of a compatible windlass or onboard control function. The listed variants are marked for DOWN, UP or WASH DOWN operation.

Which part number is the windlass DOWN switch?
Part number 600011 has a red button and is marked for DOWN operation.

Which part number is the windlass UP switch?
Part number 600012 has a black button and is marked for UP operation.

What is part number 602121 used for?
Part number 602121 has a blue button and is marked WASH DOWN.

Is one footswitch used for both UP and DOWN?
No. The listed codes are assigned individual functions. Codes 600011 and 600012 are separate DOWN and UP switches respectively.

Is the footswitch waterproof?
The footswitch is rated IP67. Correct sealing and installation are required to maintain the stated protection level.

What voltage is required?
All three models are specified for 12-24V DC electrical systems.

What is the maximum contact rating?
The maximum published contact rating is 5A.

Can the footswitch be connected directly to a windlass motor?
The manufacturer specifies a 5A maximum contact rating but does not state that the switch is intended to carry the windlass motor current directly. Connect it only through a compatible control circuit that remains within the published rating and follows the windlass wiring diagram.

Does the cover prevent accidental operation?
The composite cover is designed to protect the button and reduce the risk of accidental engagement.

What are the dimensions and weight?
Each switch measures 80 x 95 x 20mm and weighs 100g.
