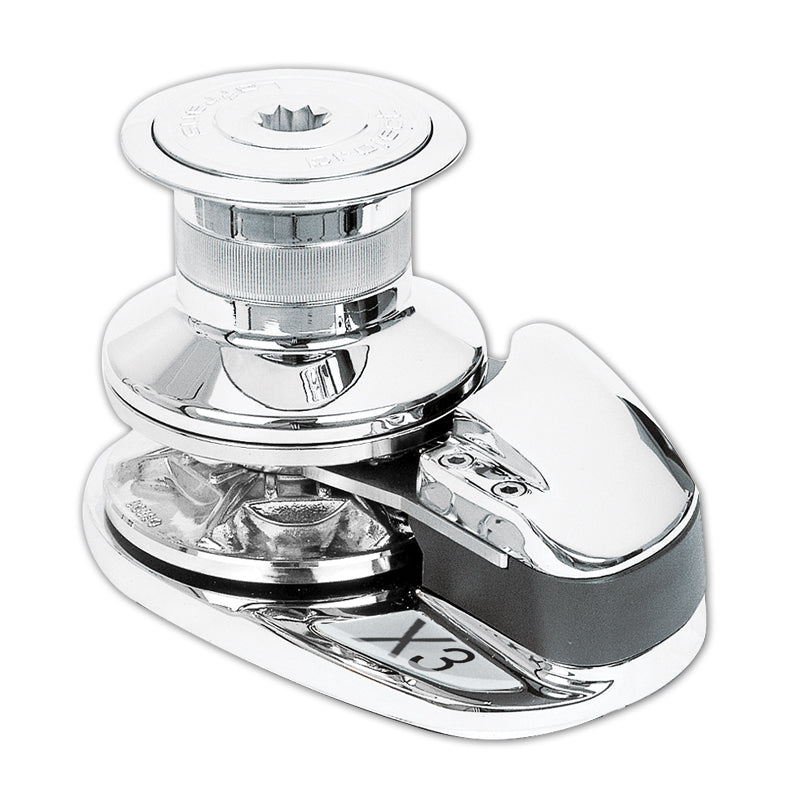

Lofrans X3 Vertical Electric Windlass - With Drum

Lofrans X3 Vertical Electric Windlass - With Drum

Location:

Get 10% Off Everything*, Use Coupon Code SALE10 *Excludes Liferafts & Windlasses

LA-600064

£2,055.95
£2,055.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Size
Voltage
Watt & Chain Type

The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model

The standard features that you can meet in every X series windlass are:

  • Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
  • The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
  • The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
  • There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
  • Manual override so that the chain or rope can be recovered manually in case of electric function failure.
  • Luxury chromed bronze base and drum
  • With drum or low profile
  • Independent gypsy and drum operation
  • Rope and chain combination gypsy
  • Manual chain release
  • Manual override available for chromed bronze models only
  • Rope chain management by the spring loaded arm
  • Chain counter magnet pre-installed as standard
  • IP66 rated heavy-duty electric motor
  • Anodised marine aluminium gearbox

Technical Specs



MPN Circuit Breaker Construction Gipsy For Chain Gipsy For Rope Line Speed at W.L Max Line Speed Maximum Pull Motor size Net Weight Power Supply Type Amps at Working Load (A)
Working load (kg)
57451 187334 Aluminium 8 mm, ISO 4565
DIN 766		 14 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 35 kg 12 V With Drum 180 200
57452 187334 Aluminium 10 mm, DIN 766 16 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 35 kg 12 V With Drum 180 200
57453 187334 Aluminium 12 mm, ISO 4565
13 mm, DIN 766		 18 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 35 kg 12 V With Drum 180 200
472842 187334 Chromed bronze 12 mm, ISO 4565
13 mm, DIN 766		 18 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 35 kg 12 V Low Profile 180 200
472865 187333 Chromed bronze 10 mm, ISO 4565 16 mm, 3-strand 17 m/min 40 m/min 1200 kg 1500 W 35 kg 12 V With Drum 150 165
472866 187333 Chromed bronze 10 mm, ISO 4565 16 mm, 3-strand 17 m/min 40 m/min 1200 kg 1500 W 32 kg 12 V Low Profile 150 165
473004 187334 Chromed bronze 12 mm, ISO 4565
13 mm, DIN 766		 18 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 38 kg 12 V With Drum 180 200
473005 187332 Chromed bronze 12 mm, ISO 4565
13 mm, DIN 766		 18 mm, 3-strand 15 m/min 32 m/min 1695 kg 1700 W 38 kg 24 V With Drum 90 215
473006 187332 Chromed bronze 12 mm, ISO 4565
13 mm, DIN 766		 18 mm, 3-strand 15 m/min 32 m/min 1695 kg 1700 W 35 kg 24 V Low Profile 90 215
473208 187334 Chromed bronze 10 mm, ISO 4565 16 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 38 kg 12 V With Drum 180 200
473209 187334 Chromed bronze 10 mm, ISO 4565 16 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 35 kg 12 V Low Profile 180 200
473218
473228 187333 Chromed bronze 10 mm, DIN 766 16 mm, 3-strand 17 m/min 40 m/min 1200 kg 1500 W 32 kg 24 V With Drum 150 165
473252 187332 Chromed bronze 10 mm, ISO 4565 16 mm, 3-strand 15 m/min 32 m/min 1695 kg 1700 W 38 kg 24 V With Drum 90 215
473256 187332 Chromed bronze 10 mm, ISO 4565 16 mm, 3-strand 15 m/min 32 m/min 1695 kg 1700 W 35 kg 24 V Low Profile 90 215
600064 187334 Chromed bronze 8 mm, ISO 4565
DIN 766		 14 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 38 kg 12 V With Drum 180 200
600065 187334 Chromed bronze 8 mm, ISO 4565
DIN 766		 14 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 35 kg 12 V Low Profile 180 200
600068 187332 Chromed bronze 8 mm, ISO 4565
DIN 766		 14 mm, 3-strand 15 m/min 32 m/min 1695 kg 1700 W 38 kg 24 V With Drum 90 215
601070 187333 Chromed bronze 8 mm, ISO 4565
DIN 766		 14 mm, 3-strand 17 m/min 40 m/min 1200 kg 1500 W 32 kg 12 V Low Profile 150 165
601075 187333 Chromed bronze 12 mm, ISO 4565
13 mm, DIN 766		 18 mm, 3-strand 17 m/min 40 m/min 1200 kg 1500 W 32 kg 12 V Low Profile 150 165
601079 187333 Chromed bronze 8 mm, ISO 4565
DIN 766		 14 mm, 3-strand 17 m/min 40 m/min 1200 kg 1500 W 35 kg 12 V With Drum 150 165
601084 187333 Chromed bronze 12 mm, ISO 4565
13 mm, DIN 766		 18 mm, 3-strand 17 m/min 40 m/min 1200 kg 1500 W 35 kg 12 V With Drum 150 165
601128 187334 Aluminium 8 mm, ISO 4565
DIN 766		 14 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 32 kg 12 V Low Profile 180 200
601129 187334 Aluminium 10 mm, ISO 4565 16 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 32 kg 12 V Low Profile 180 200
602101 187334 Chromed bronze 10 mm, DIN 766 16 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 38 kg 12 V With Drum 180 200
602102 187334 Chromed bronze 10 mm, DIN 766 16 mm, 3-strand 14 m/min 32 m/min 1600 kg 1700 W 35 kg 12 V Low Profile 180 200
602103 187332 Chromed bronze 10 mm, DIN 766 16 mm, 3-strand 15 m/min 32 m/min 1695 kg 1700 W 38 kg 24 V With Drum 90 215
602104 187332 Chromed bronze 10 mm, DIN 766 16 mm, 3-strand 15 m/min 32 m/min 1695 kg 1700 W 35 kg 24 V Low Profile 90 215
