Maestrini Brass Domed Skin Fitting BSP
Maestrini Brass Domed Skin Fitting BSP
No reviews
Location: M110, J2, and FF58
SKU:AF-403001
Regular price
£10.95
Regular price
Sale price
£10.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

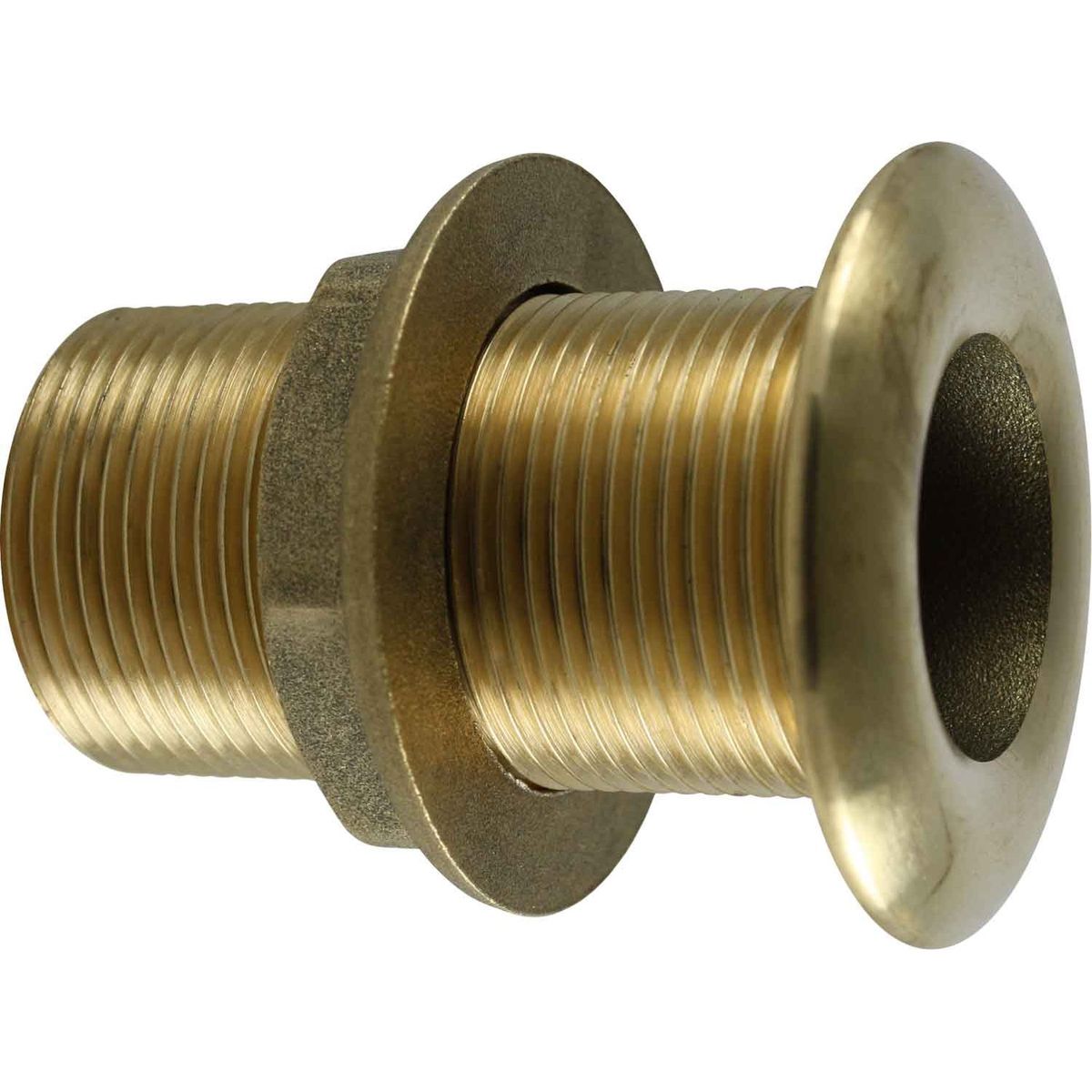

The Maestrini threaded skin fitting is made from brass. A skin fitting connects to a threaded pipe and is designed for through hull applications. This skin fitting features a traditional domed head style and is supplied with a fixing nut.
Please Note: All fittings used for through hull applications must be correctly electrically bonded to ensure protection from electrolytic corrosion. Brass is susceptible to dezincification and is not recommended for below waterline through hull applications.
| Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Thread Connection | BSP | BSP | BSP | BSP | BSP | BSP | BSP | BSP |
| Thread Fitting Size | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Thread Gender | Male | Male | Male | Male | Male | Male | Male | Male |
| Pressure Rating | 580 PSI (40 Bar) | 580 PSI (40 Bar) | 580 PSI (40 Bar) | 580 PSI (40 Bar) | 580 PSI (40 Bar) | 363 PSI (25 Bar) | 363 PSI (25 Bar) | 363 PSI (25 Bar) |
| Thread Size | 1/4" BSP Male Parallel | 3/8" BSP Male Parallel | 1/2" BSP Male Parallel | 3/4" BSP Male Parallel | 1" BSP Male Parallel | 1-1/4" BSP Male Parallel | 1-1/2" BSP Male Parallel | 2" BSP Male Parallel |
| Length | Thread: 51mm, Overall: 55mm | Thread: 52mm, Overall: 58mm | Thread: 58mm, Overall: 63.5mm | Thread: 66mm, Overall: 72mm | Thread: 71mm, Overall: 77mm | Thread: 75mm, Overall: 83mm | Thread: 78mm, Overall: 84.5mm | Thread: 95mm, Overall: 102mm |
| Diameter Description | Head: 24.5mm | Head: 34mm | Head: 40mm | Head: 49mm | Head: 58mm | Head: 65mm | Head: 72mm | Head: 84mm |
| Country of Origin | Italy | Italy | Italy | Italy | Italy | Italy | Italy | Italy |
| Angle | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight |
