Multiflex Planetary 150 Heavy Duty Aluminum Steering Helm With Black Bezel Kit

The Multiflex H1 and B1B kit combines a Planetary 150 mechanical steering helm with a standard 90° black bezel. It is intended for compatible outboard, inboard and power-assisted sterndrive mechanical steering systems up to 150HP, subject to the ratings of the boat, engine, steering cable and all other system components.

What Is This Product?

The H1 is a compact mechanical rotary helm with a planetary gear design. Turning the steering wheel moves the connected mechanical steering cable. The B1B bezel mounts the helm at a 90° angle and provides a finished black surround at the dashboard.

Product Identification

• Brand: Multiflex
• Helm model/part number: H1
• Bezel model/part number: B1B
• Product category: Mechanical rotary steering helm and bezel kit
• Helm series: Planetary 150
• Bezel type: 90° black
• Steering-wheel shaft: Standard 3/4-inch tapered shaft
• Maximum application rating: Up to 150HP, subject to complete-system compatibility

What Is Included in the Kit?

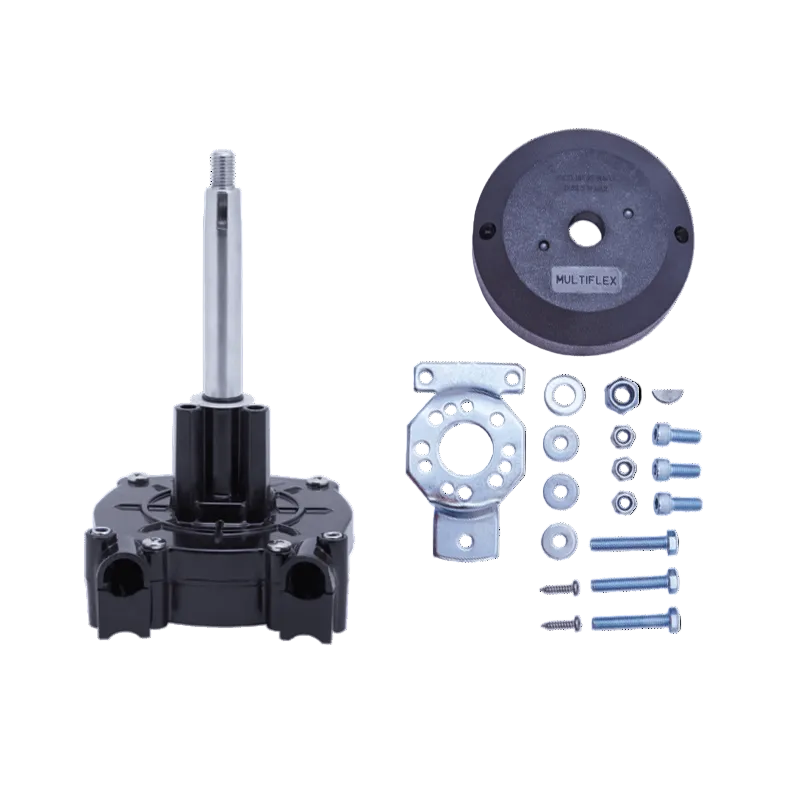

• Multiflex H1 Planetary 150 mechanical steering helm (LM-H-101)
• Multiflex B1B 90° black bezel kit (LM-B-1)

Not included:

• Steering cable
• Steering wheel
• Engine connection kit
• Adapters or additional installation components not specifically listed

Which Applications Are Suitable?

• Compatible outboard mechanical steering systems up to 150HP
• Compatible inboard mechanical steering systems up to 150HP
• Compatible power-assisted sterndrive mechanical steering systems up to 150HP

The kit is for mechanical cable steering and is not a hydraulic steering system. Application suitability depends on the boat design, engine configuration, speed, steering load and ratings of every component in the installed system.

Which Steering Cables Are Compatible?

The H1 is designed for compatible quick-connect or Easy Connect rotary steering cables. Multiflex cross-references the SC-16 cable used in its Planetary 150 system to SeaStar/Teleflex SSC62 and Ultraflex M66, and it cross-references the H1 helm to the Ultraflex T71FC.

Examples listed in the supplied compatibility guidance include:

• Teleflex/SeaStar Safe-T Quick-type systems
• Ultraflex M66 cable systems
• Teleflex/SeaStar STQ No-Feedback-type systems
• Multiflex Easy Connect cable systems

Not compatible with:

• Low-horsepower M58-type steering cables
• Teleflex/SeaStar SSC131-type low-horsepower cables
• Multiflex Lite 55 cable systems
• Rack-and-pinion steering systems
• Hydraulic steering systems

Confirm the exact cable part number, connector type, cable length, engine rating and any adapter requirements before ordering.

What Is the Difference Between 75HP and 150HP Cable Options?

• For applications up to 75HP, the supplied compatibility guidance lists Safe-T Quick and M66-type cable systems.
• For applications above 75HP and up to 150HP, use a steering cable and complete system specifically approved for that engine power, such as the stated STQ No-Feedback or Multiflex Easy Connect configuration.
• A cable rated only to 75HP must not be used on an application above 75HP.
• The maximum permitted engine power is determined by the lowest-rated component in the complete steering system.

Is This a No-Feedback Helm?

No. This kit contains the standard H1 Planetary 150 helm. Multiflex lists the H1N as the separate non-reaction or no-feedback model. Using a cable associated with a no-feedback system does not convert the H1 into a no-feedback helm.

Construction and Design

• Helm design: Compact planetary gear mechanism
• Helm cover: High-pressure die-cast aluminium alloy
• Helm finish: Powder-coated for enhanced corrosion resistance
• Helm shaft: Galvanised steel
• Shaft profile: Standard 3/4-inch taper
• Bezel material: Engineering plastic
• Bezel angle and colour: 90° black
• Installation features: Easy connection and quick installation

Installation and Safety

• Confirm the cable connector and any adapter requirements before ordering.
• Measure the required steering-cable length using the cable manufacturer's method.
• Check the boat manufacturer's maximum horsepower and speed ratings.
• Do not exceed the rating of the helm, cable, engine connection, steering wheel or boat.
• Check for unrestricted movement through the complete steering range after installation.
• Complete a full lock-to-lock steering test before operating the vessel.
• Installation should be completed by a competent marine technician.

Key Features

• H1 Planetary 150 mechanical steering helm
• B1B 90° black bezel
• Suitable for compatible applications up to 150HP
• Compact planetary gear design
• High-pressure die-cast aluminium helm cover
• Powder-coated finish
• Galvanised steel 3/4-inch tapered shaft
• Compatible with specified quick-connect and Easy Connect cable systems
• Steering cable and steering wheel not included
