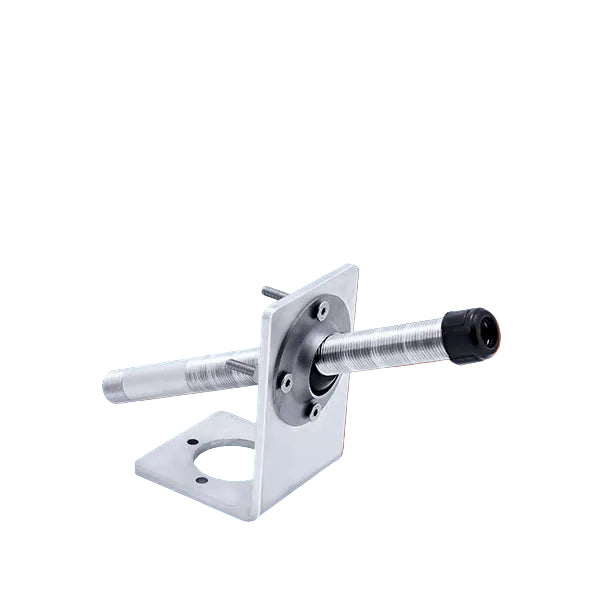

Multiflex S2 90° Transom Mount Steering Cable Support Bracket

The Multiflex S2 / LM-S-2 Steering Cable Support Bracket is a dual-position mounting assembly for one compatible mechanical steering cable. It is used where the steering cable cannot pass through a suitable engine tilt tube or where a conventional flat splashwell mounting arrangement does not suit the boat’s transom and splashwell geometry.

The S2 uses a raised 90° support bracket with two alternative mounting locations and an approximately 277mm threaded support tube. This allows the installer to choose the cable-support position that provides the best alignment with the outboard engine tiller and steering link arm.

Product Identification

• Brand: Multiflex
• Model / item code: S2
• Extended supplier reference: LM-S-2
• Product category: Mechanical steering cable support
• Alternative description: Raised splashwell or transom steering cable mounting bracket
• Cable capacity: One mechanical steering cable
• Bracket configuration: Raised 90° bracket
• Mounting options: Two alternative cable-support locations
• Support tube: Threaded
• Supplier-reported support-tube length: 277mm / approximately 10.9in
• Supplier-reported mounting pattern: 64 x 64mm
• Supplier-reported fixing holes: 4 x 7mm
• Primary application: Outboard mechanical steering
• Mounting area: Transom or splashwell structure
• Steering type: Mechanical cable steering
• Hydraulic steering component: No
• Closest supplier-listed Ultraflex equivalent: S55 / 34744A
• Specific steering cable models: Not officially listed by Multiflex
• Maximum steering load: Not stated
• Maximum engine horsepower: Not stated

What Is the Multiflex S2 Used For?

The S2 supports the stationary outer section of a compatible mechanical steering cable near the outboard engine.

When the steering wheel is turned:

1. The steering helm moves the inner steering cable.
2. The S2 holds the cable’s outer support section in position.
3. The cable output moves in a push-pull direction.
4. A separately selected steering link arm transfers that movement to the outboard engine tiller.

The S2 can form part of a correctly specified:

• Outboard mechanical steering installation
• Transom-mounted steering cable arrangement
• Splashwell-mounted steering installation
• Installation without a usable engine tilt tube
• Installation where a conventional flat splashwell flange is unsuitable
• Replacement of a compatible raised steering cable bracket
• Steering system requiring two alternative cable-support positions

What Is Included?

The official Multiflex S2 product data do not publish a complete itemised contents list. Available supplier imagery shows:

• 1 x raised 90° support bracket with two mounting locations
• 1 x threaded steering cable support tube
• 2 x circular clamp or flange plates
• 1 x articulated ball
• 1 x protective cap or boot
• 1 x sealing O-ring
• Mounting bolts
• Mounting nuts
• Flat washers
• Locking washers or retaining hardware

Check the physical package before publishing a guaranteed loose-fastener quantity.

Not included unless expressly stated:

• Mechanical steering cable
• Steering helm
• Steering wheel
• Dashboard bezel
• Engine steering link arm
• Engine tiller arm
• Steering cable-to-engine connection kit
• Hydraulic steering cylinder
• Hydraulic hoses
• Engine-specific adaptor
• Additional transom reinforcement
• Other installation-specific steering components

Does the S2 Hold Two Steering Cables?

No. The S2 supports one mechanical steering cable.

The bracket provides two alternative mounting locations. These allow the articulated support tube to be installed through either bracket face, depending on the required cable height, offset and approach angle.

The S2 should therefore be described as:

• A dual-position steering cable support
• A two-location transom support bracket
• A raised 90° splashwell mounting bracket

How Do the Two Mounting Positions Work?

The S2 bracket has two perpendicular mounting faces.

The articulated tube and flange assembly can be positioned through the bracket face that provides the most suitable:

• Cable height
• Distance from the transom
• Cable approach angle
• Alignment with the engine tiller
• Link-arm clearance
• Splashwell clearance
• Engine tilt clearance

Only one mounting location is used for the steering cable in a normal installation.

What Are the Published S2 Dimensions?

• Support-tube length: 277mm / approximately 10.9in
• Mounting-hole pattern: 64 x 64mm / approximately 2.52 x 2.52in
• Number of mounting holes: 4
• Mounting-hole diameter: 7mm / approximately 0.28in

These measurements are supplier-published rather than shown on the current Multiflex S2 product page.

The available Multiflex data do not state:

• Support-tube outside diameter
• Support-tube inside diameter
• Tube thread diameter
• Tube thread pitch
• Bracket thickness
• Exact cable offset at either mounting position
• Maximum articulation angle
• Maximum transom thickness
• Product weight
• Maximum steering force
• Maximum engine horsepower

What Does the 12-16in Mounting Position Mean?

• Mounting surface: Normally perpendicular to the transom
• Distance from centreline or tiller: 12-16in / approximately 305-406mm
• Total splashwell width: 25-33in / approximately 635-838mm

These measurements describe the manufacturer’s usual installation geometry. The final position must also provide correct cable alignment, full steering travel and unrestricted engine tilt movement.

How Is the S2 Different From the Multiflex S1?

Multiflex S1

• Conventional plate-style splashwell mounting kit
• Mounts through a splashwell side or bulkhead
• Stainless-steel mounting plates
• Aluminium support tube
• Suitable where a flat through-bulkhead mounting surface is available

Multiflex S2

• Raised 90° support bracket
• Two alternative mounting locations
• Supports the cable at different positions relative to the transom
• Approximately 277mm threaded support tube
• Suitable where through-tube steering or the normal splashwell arrangement is unsuitable

Is the S2 Equivalent to the Ultraflex S55?

Specialist supplier listings pair the Multiflex S2 with the Ultraflex S55 / 34744A.

The S2 should be treated as the closest functional equivalent rather than a guaranteed dimensional replacement.

Before substitution, compare:

• Mounting-hole pattern
• Fixing-hole diameter
• Support-tube length
• Support-tube thread
• Cable retaining-nut thread
• Bracket height
• Cable offset
• Link-arm position
• Steering and tilt clearance

Which Steering Cables Are Compatible?

The current Multiflex S2 product data do not identify a specific steering cable model.

The selected mechanical steering cable must:

• Pass through the S2 support tube
• Attach securely to the threaded support tube
• Move through its complete steering travel
• Connect to the engine through a compatible link arm
• Operate without excessive side loading
• Maintain the cable manufacturer’s minimum bend radius

Confirm the cable make, model, retaining-nut thread, output-end design, travel, length and engine connection before ordering.

Does the S2 Replace an Engine Tilt Tube?

The S2 provides an alternative steering cable support where a suitable engine tilt tube is unavailable or cannot be used.

It anchors the steering cable to the boat’s transom or splashwell structure. A separate steering link arm then connects the moving cable output to the engine tiller.

Does the S2 Include a Steering Link Arm?

No steering link arm is identified as part of the S2 supply.

The correct link arm must be selected according to:

• Engine manufacturer and model
• Steering cable output end
• Engine tiller mounting point
• Required arm length and offset
• Mounting-bolt diameter
• Steering travel
• Engine tilt clearance

Can the S2 Be Used with Hydraulic Steering?

No. The S2 is a mechanical steering cable support.

It is not a hydraulic steering cylinder mount, hydraulic hose bulkhead fitting, hydraulic tie bar or hydraulic engine bracket.

Is the S2 a Complete Steering System?

No. The Multiflex S2 is the steering cable support assembly only.

A complete mechanical steering installation may also require:

• Steering wheel
• Steering helm
• Dashboard bezel
• Correctly measured steering cable
• S2 support bracket
• Compatible engine steering link arm
• Engine tiller connection
• Engine-specific mounting hardware
• Suitable transom or splashwell reinforcement
• Correct steering and tilt clearance

Construction and Design

• Multiflex mechanical steering accessory
• Model S2
• Extended supplier reference LM-S-2
• Raised 90° steering cable support bracket
• Two alternative support-tube mounting locations
• Supports one mechanical steering cable
• Threaded support tube
• Supplier-reported tube length of 277mm
• Supplier-reported 64 x 64mm mounting pattern
• Four supplier-reported 7mm mounting holes
• Articulated ball-and-flange support shown in product imagery
• Protective cap or boot shown in product imagery
• Sealing O-ring shown in product imagery
• Mounting fasteners shown in product imagery
• Intended for transom or splashwell mounting
• Mounting surface normally perpendicular to the transom
• Manufacturer mounting guidance of 12-16in from the centreline or tiller
• Manufacturer-stated total splashwell width of 25-33in
• No hydraulic components
• No electrical components
• No steering cable included
• No steering helm included
• No steering link arm included
• Bracket material not officially stated
• Support-tube material not officially stated
• Maximum steering load not published
• Maximum engine horsepower not published

Installation and Safety

• Confirm that the product is the S2 / LM-S-2 support bracket
• Confirm that the installation requires a raised transom or splashwell support
• Verify that the bracket supports one steering cable
• Confirm compatibility with the selected steering cable
• Check the cable retaining-nut and support-tube thread
• Verify the required steering cable length
• Maintain the cable manufacturer’s minimum bend radius
• Centre the engine before locating the bracket
• Position the steering cable at approximately half travel
• Select the bracket face that provides the correct cable height and offset
• Confirm alignment with the engine steering tiller
• Confirm compatibility with the selected steering link arm
• Check the supplier-reported 64 x 64mm pattern before drilling
• Mount the bracket to a rigid structural surface
• Add suitable reinforcement where required
• Do not mount the bracket to a cracked or flexible panel
• Use suitable corrosion-resistant mounting fasteners
• Seat the articulated ball and flange components correctly
• Ensure the cable support tube is retained securely
• Avoid excessive side loading on the cable
• Turn the steering fully from port to starboard
• Confirm that the cable moves freely throughout its complete travel
• Check that the engine reaches both steering positions without binding
• Tilt the outboard fully upward and downward
• Repeat the steering check throughout the engine’s tilt range
• Ensure the cable, bracket and link arm do not contact the transom or splashwell
• Recheck the mounting fasteners after the initial test
• Inspect the bracket, tube, ball and fasteners regularly
• Replace any bent, cracked, loose or excessively corroded component
• Do not operate the boat if the cable or support bracket binds

Marine steering is safety-critical. Installation should be completed according to the current Multiflex, steering-cable and engine instructions by a competent marine technician.

Key Features

• Multiflex S2 steering cable support bracket
• Extended supplier reference LM-S-2
• Dual-position bracket for one steering cable
• Two alternative tube mounting locations
• Raised 90° support design
• Suitable for compatible mechanical steering systems
• Used where engine tilt-tube steering cannot be fitted
• Suitable where a conventional splashwell mount does not provide the required geometry
• Threaded steering cable support tube
• Supplier-reported tube length of 277mm
• Supplier-reported mounting pattern of 64 x 64mm
• Four supplier-reported 7mm mounting holes
• Articulated ball-and-flange support arrangement
• Normal mounting surface perpendicular to the transom
• Manufacturer guidance of 12-16in from the centreline or tiller
• Manufacturer-stated total splashwell width of 25-33in
• Supplier-listed as the Multiflex equivalent to Ultraflex S55
• Supports one cable rather than two
• Steering cable supplied separately
• Steering helm supplied separately
• Steering wheel supplied separately
• Engine link arm supplied separately
• Bracket and tube materials not officially stated
• Exact cable compatibility not published
• Maximum steering load not published
• Maximum engine horsepower not published
