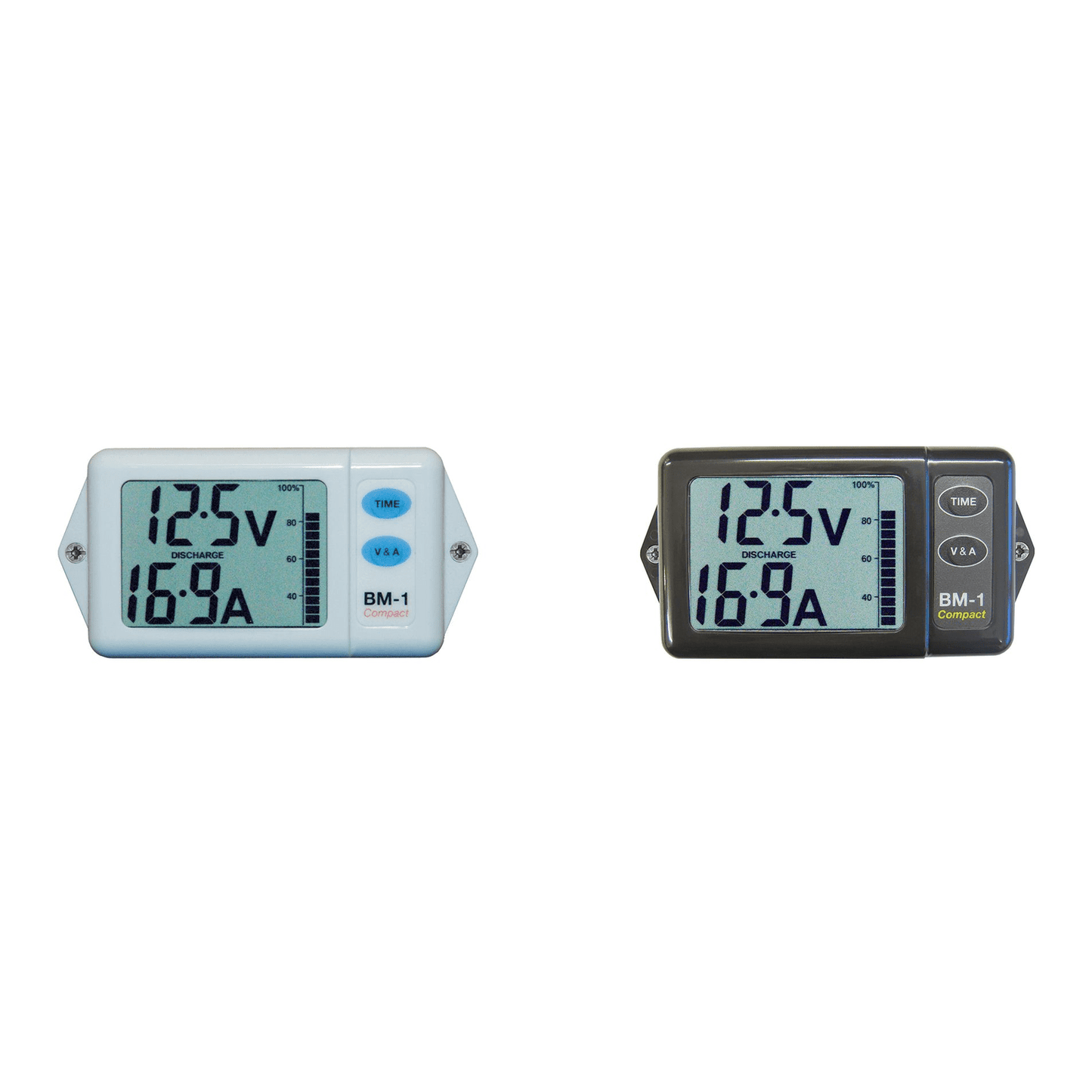

NASA Battery Monitor Clipper BM-1 Compact

Based on the highly successful BM-1 marine battery monitor, the BM-1 Compact is especially designed for applications where space is at a premium.

Caravans, mobile homes, RV's, small boats and renewable power installations can all benefit from the BM-1 Compact. It is able to monitor the performance of any 12 Volt lead acid battery system with a capacity up to 600 Amp Hours. The BM-1 Compact is supplied with a precision 100 Amp shunt and prefabricated cables to enable simple DIY installation.

The unit continually monitors the voltage, the current (charge or discharge) and calculates the state of charge together with the time remaining to charge or discharge the battery.

This information can lead to a more efficient use of the battery enhancing its life and reducing the risk of failure.

Operation is very simple. One screen displays the voltage, current (charge or discharge) and a bar graph showing the remaining capacity. A flashing alarm is also included to warn if the capacity is getting too low. A second screen shows the remaining time available at the current charge/discharge rate together with the remaining capacity in both analog and digital format.

The BM1 Compact consumes a miserly 1.5mA

• The BM-1 Compact consumes a miserly 1.5mA! BM-1 Compact is used in various vehicles by the Ministry of  Defence.
• Compact surface mount display, 125x 62x 23mm, in Grey
• Monitors 12v lead acid battery systems with capacity of up to 600 Amp hours
• Supplied with a 50 millivolt @100 amp shunt and prefabricated cable assembly with M8 ring terminals
• Monitors Voltage, Current (charge or discharge), Number of  Amp/hours (charge or discharge), The battery's state of charge and the time to charge or discharge
• Does NOT monitor more that 1 battery bank
• Supply voltage 8V to 16V DC
• Supply current 1.5 milliamps
• Load current 100amps maximum
• Charge current 100amps maximum
