NASA Clipper Compass System With Fluxgate Sensor

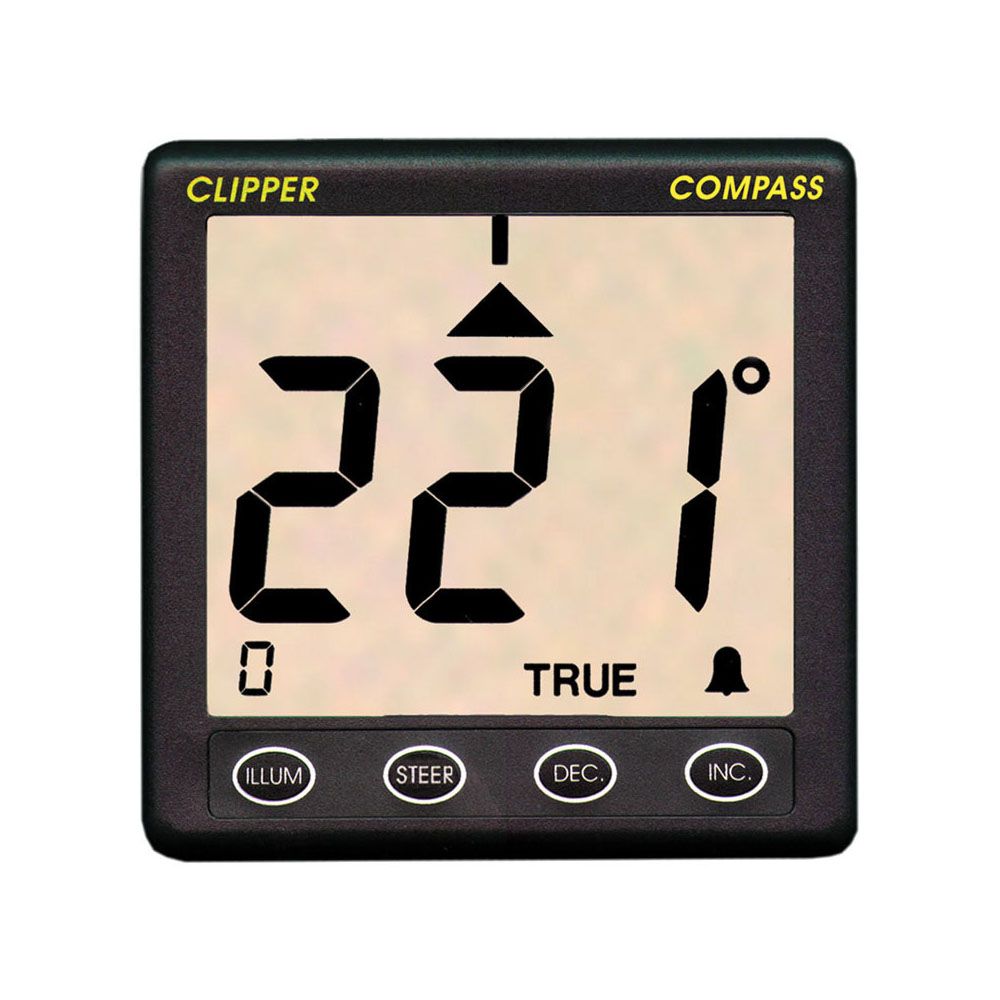

The Clipper Compass is a fully electronic compass with remote fluxgate sensor. The large clear display has 7 levels of illumination and gives True or magnetic heading. The sensor which is gimballed for plus/minus 45 degrees of pitch and roll, is mounted in a position where stray magnetic fields are at a minimum. An electronic auto calibration then cancels out small errors.

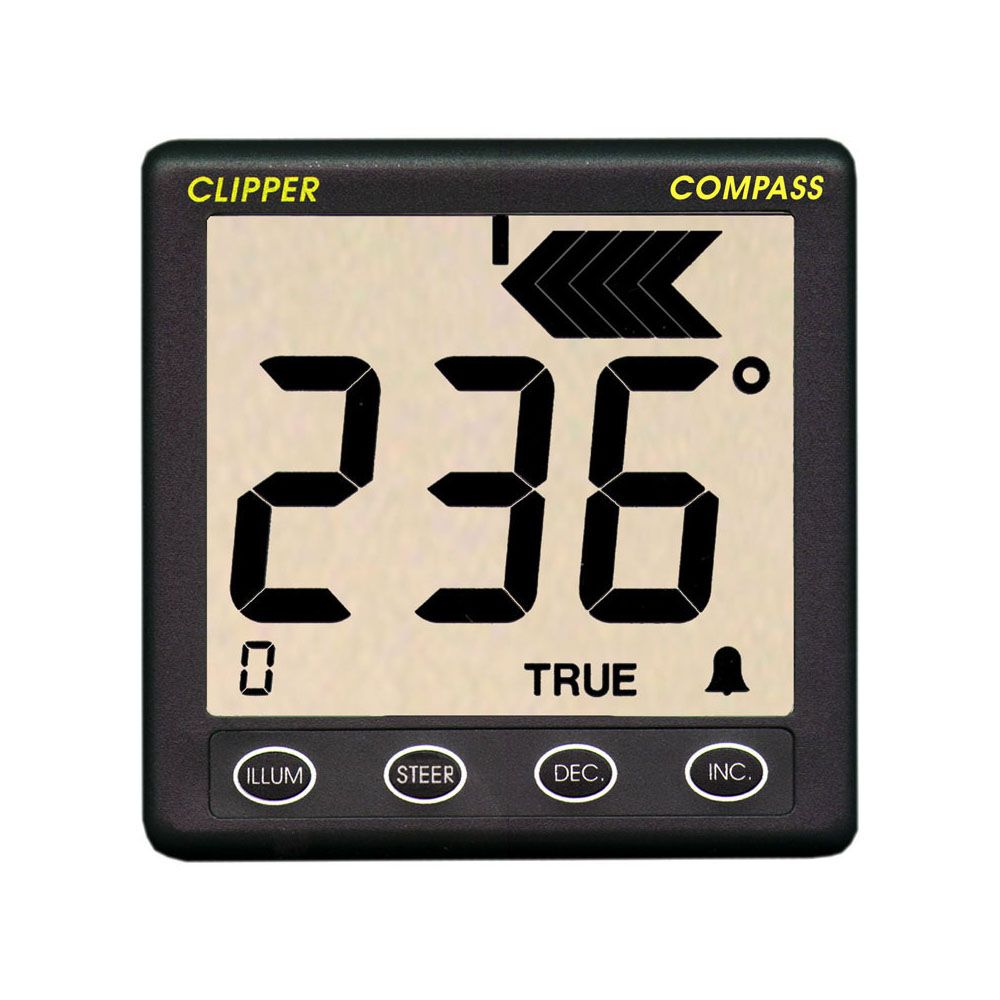

Steer to course function - When the steering function is selected a series of chevrons accumulate showing the magnitude and direction of the steering error. To stay on course simply turn the wheel in the direction of the chevrons until they are extinguished. The steering sensitivity can be pre-set by the user. An off course alarm provides a safety feature when not at the helm. If the heading deviates by more than a pre-set amount then the alarm will sound.

• Supply voltage Nominal 12v DC.

• Consumption 40mA + 10 mA max for full level display illumination.

• Fluxgate accuracy +/- 1 degree.

• Adjustable Damping.

• 1 degree display resolution.

• Display case size 110 x 110mm.

• Depth behind panel 30mm.

• Fluxgate Dimensions 72mm x 68mm x 40mm.

• Fluxgate Weight: 475 grams including 10 metre cable.
