Nuova Rade DIABLO Inboard Plastic Complete Fuel Tank Kit

Nuova Rade DIABLO Inboard Plastic Complete Fuel Tank Kit

Location:

SKU:LA-197477KIT2

Regular price £149.95
Regular price Sale price £149.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Nuova Rade DIABLO Inboard Plastic Fuel And Water Tank (Size)
Nuova Rade Stainless Steel Fuel And Water Sender (Size)

DIABLO line of horizontal tanks is made of recyclable HDPE material, consisting of a full range of 10 models complying with international standards.

DIABLO can be used for fuels such as gasoline, diesel, ethanol, alternative fuels and organic vegetable oils. It can be also used for either fresh or waste water.

The advantage of this line of tanks is the ‘EASY SWITCH’ plate, which can be purchased separately based on the use of the tank, and it is manually interchangeable.

The plate used for fuel comes in red colour, the plate for fresh water in blue colour and the one for waste water in brown colour.

It is secured and sealed by rotation of the piece itself and is blocked into position by means of a locking pin that prevents loosening. To clean the tank just lift the locking pin and remove the hatch by unscrewing it.

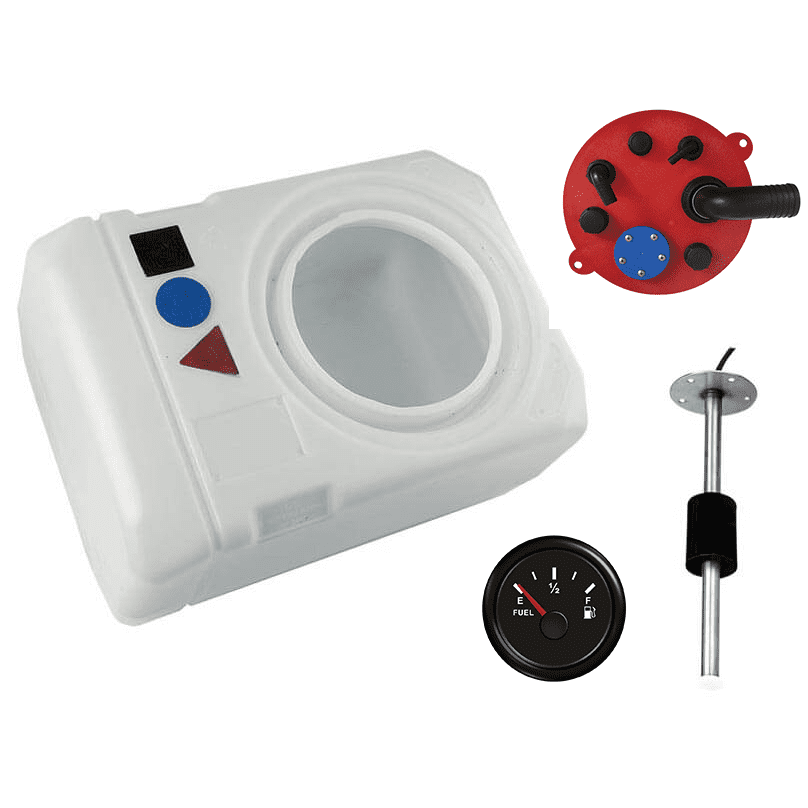

Kit Includes:

  • Diablo Inboard Tank
  • Red Fuel Top Plate
  • Electronic Fuel Gauge 12v
  • 245mm or 200m (for Low Profile Tanks) Electric Sender

Fuel Deck Plate:

  • 90° inlet nozzle, 38 mm dia. 1 1/2" thread.
  • 90º Connector 17 mm dia. 3/4" thread.
  • 90º Connector 11mm dia. 1/2" thread
  • Internal gasket
  • Cap 1 1/2" thread
  • 2 x Cap 3/4" thread
  • 1 x Cap 1/2" thread

Electronic Stainless Steel Fuel / Water Tank Sender - 245mm.

  • 5 hole flange fitting.
  • 316 Stainless steel
  • 0 - 190 Ohm

Electrical 12v Waste Gauge 0-190 Ohm

  • Dial Diameter - 52mm
  • 12v
  • 0-190 Ohm
Title Capacity Length Width Height
DIABLO Tank 37lt H.230mm / L.500mm w/o Plate 37lt 500mm 360mm 230mm
DIABLO Tank 48lt H.230mm / L.650mm w/o Plate 48lt 650mm 360mm 230mm
DIABLO Tank 60lt H.230mm / L.800mm w/o Plate 60lt 800mm 360mm 230mm
DIABLO Tank 70lt H.230mm / L.950mm w/o Plate 70lt 950mm 360mm 230mm
DIABLO Tank 82lt H.230mm / L.1100mm w/o Plate 82lt 1100mm 360mm 230mm
DIABLO Tank 49lt H.305mm / L.500mm w/o Plate 49lt 500mm 360mm 305mm
DIABLO Tank 64lt H.305mm / L.650mm w/o Plate 64lt 650mm 360mm 305mm
DIABLO Tank 78lt H.305mm / L.800mm w/o Plate 78lt 800mm 360mm 305mm
DIABLO Tank 93lt H.305mm / L.950mm w/o Plate 93lt 950mm 360mm 305mm
DIABLO Tank 108lt H.305mm / L.1100mm w/o Plate 108lt 1100mm 360mm 305mm
