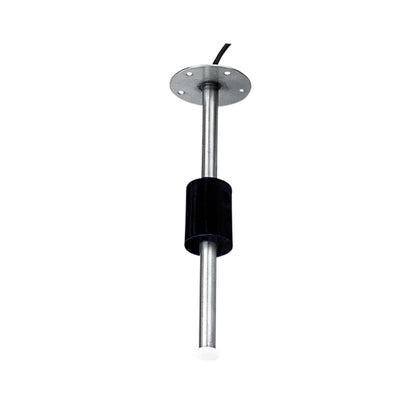

Nuova Rade Stainless Steel Fuel And Water Sender

Nuova Rade Stainless Steel Fuel And Water Sender

Location: J64, M41, Z23, Z38, J74, M22, VS4, NU2, PU2

Get 7% Off Everything*, Use Coupon Code SALE7 *Excludes Liferafts & Windlasses

LA-197347

£32.95
£32.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Delivery available  |  lead times vary

Collection available  |  usually ready in 2-4 days

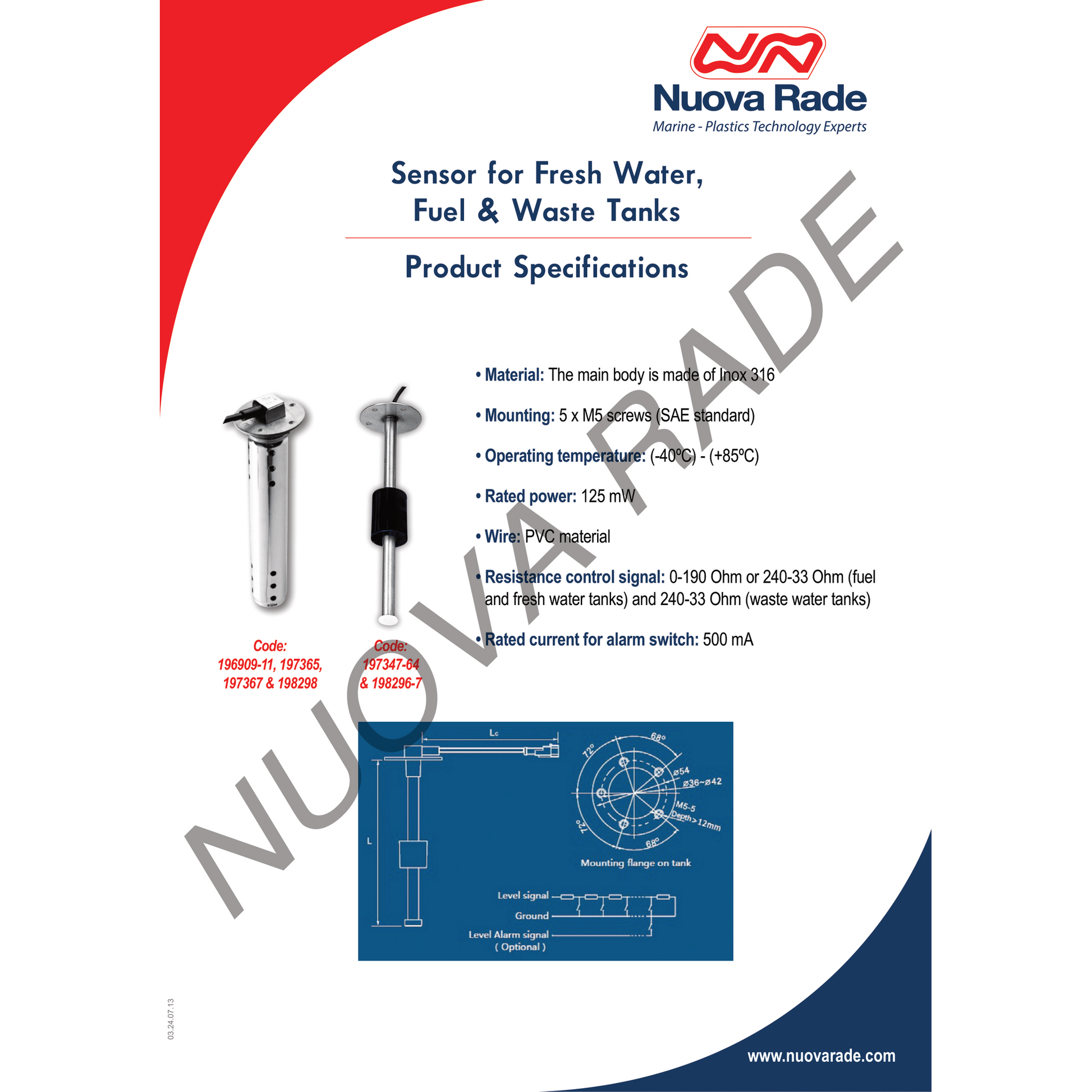

  • Material: The main body is made of Inox 316
  • Mounting: 5 x M5 screws (SAE standard)
  • Operating temperature: (-40ºC) - (+85ºC)
  • Rated power: 125 mW
  • Wire: PVC material
  • Resistance control signal: 0-190 Ohm or 240-33 Ohm (fuel
    and fresh water tanks) and 240-33 Ohm (waste water tanks)
  • Rated current for alarm switch: 500 mA
Code Title Height Impedance (Ohm) Suitable for
197347 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.150mm 150mm 0 - 190 Sogliola/ Water Tanks H160mm
197348 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.200mm 200mm 0 - 190 Water Tanks H210mm
197349 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.245mm 245mm 0 - 190 Ercole - Bora/ Water Tanks H260mm
197350 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.300mm 300mm 0 - 190 Diablo H305mm/ Water Tanks H310MM
197351 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.350mm 350mm 0 - 190 Tanks of ≈ Η360mm
197352 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.400mm 400mm 0 - 190 Tanks of ≈ Η410mm
197353 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.450mm 450mm 0 - 190 Tanks of ≈ Η460mm
197354 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.500mm 500mm 0 - 190 Tanks of ≈ Η510mm
197355 Sensor for Fuel/Water Tanks, 0-190 Ohm, H.600mm 600mm 0 - 190 Tanks of ≈ Η610mm
197356 Sensor for Fuel/Water Tanks, 240-33 Ohm, H.150mm 150mm 240 - 33 Sogliola/ Water Tanks H160mm
197357 Sensor for Fuel/Water Tanks, 240-33 Ohm, H.200mm 200mm 240 - 33 Water Tanks H210mm
197358 Sensor for Fuel/Water Tanks, 240-33 Ohm, H.245mm 245mm 240 - 33 Ercole - Bora/ Water Tanks H260mm
197359 Sensor for Fuel/Water Tanks, 240-33 Ohm, H.300mm 300mm 240 - 33 Diablo H305mm/ Water Tanks H310mm
