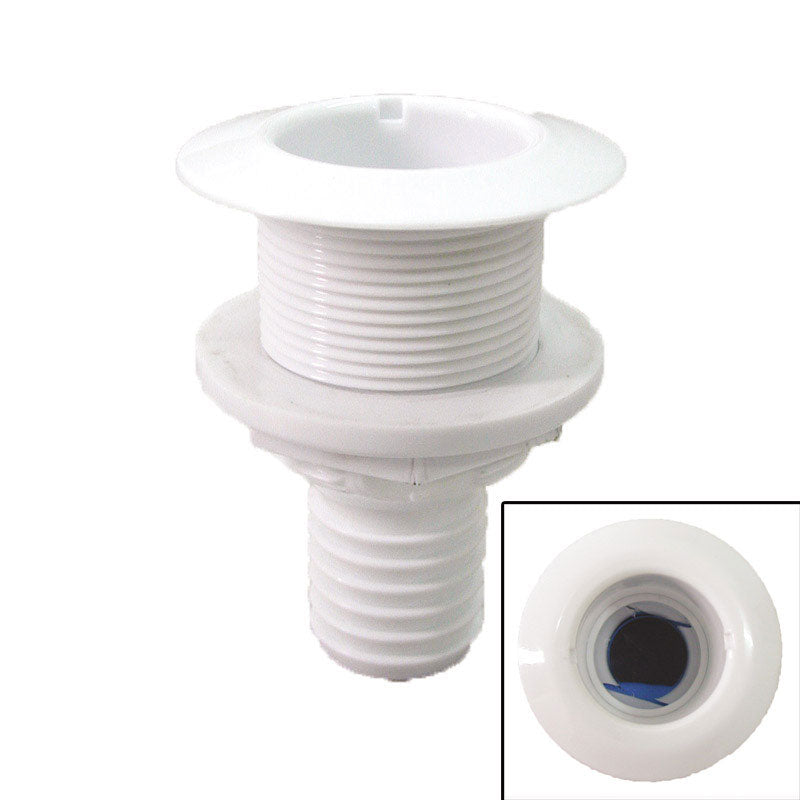

Nuova Rade Thru Hull Skin Fitting With Flush Flange And Hose Barb

Nuova Rade Thru Hull Skin Fitting With Flush Flange And Hose Barb

Location: N42 and P48

LA-10250

£2.95
£2.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Size
  • White
  • Polyamide
  • *Thread ØA According to BSP thread dimensions

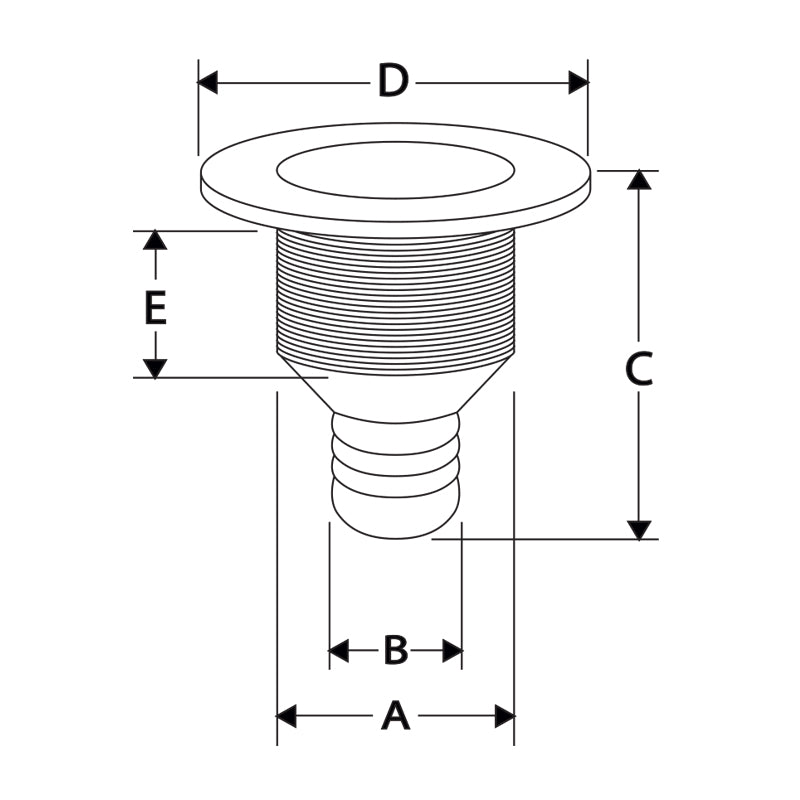

Code Title ØA ØB C ØD E Material
10250 Thru-Hull w/Fl.Flange, 1'', f/Hose Ø19mm, L81mm,White 1'' inch 19mm 81mm 45mm 36mm PP
10251 Thru-Hull w/Fl.Flange, 1'' f/Hose Ø25mm, L81mm, White 1'' inch 25mm 81mm 45mm 36mm PP
10252 Thru-Hull w/Fl.Flange,1½'' f/Hose Ø32mm, L98mm, White 1 1/2'' inch 32mm 98mm 73mm 50mm PP
10253 Thru-Hull w/Fl.Flange,1 ½'' f/Hose Ø38mm, L93mm,White 1 1/2'' inch 38mm 93mm 73mm 48mm PP
10256 Thru-Hull w/Non-ret. Valve, for Ø32mm Hose, White 1 1/2'' inch 32mm 93mm 73mm 50mm PP
10257 Thru-Hull w/Non-ret. Valve, for Ø38mm Hose, White 1 1/2'' inch 38mm 93mm 73mm 48mm PP
View full details
