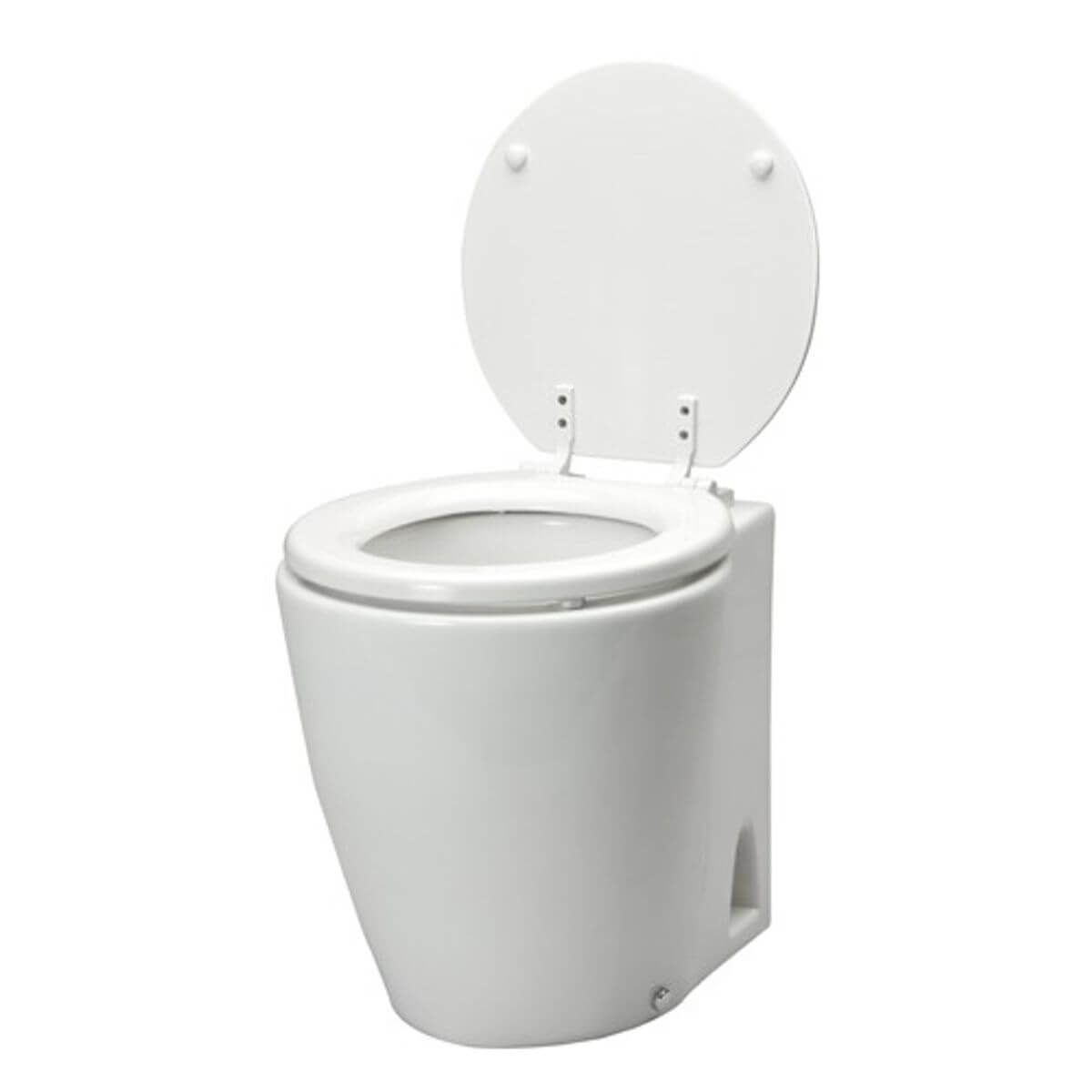

Ocean Laguna Silent Electric Toilet - 12V

Ocean Laguna Silent Electric Toilet  - 12V.                    Ref: AF-9-53020

The well proven and popular electric standard toilets with combined pump unit for flushing and wasting . All metal parts and screws are in stainless steel. The base is in impact resistant material It can be installed either above or below the sea level.

The new line of fitted design bowls in vitreous china makes this toilet very comfortable and attractive, just like a home toilet. The running cycle is completely automatic and eliminates wastewater through a high-performance pump that allows drainage of waste up to 7 m. This hydrovacuum toilet can use an automatic water system or a flush pump installed onboard for water inlet. It is fitted with an electronic switch to regulate automatically water inlet and outlet at 2 different stages: first the bowl is filled up with clear water, and then waste is discharged by leaving the bowl empty and clean.

Supplied with a intelligent control system panel with 3 function control.

Note: Freshwater solinoid valve or sea water pumps need to be ordered separatly

Specification:

• Water consumption: 1.5 - 5 litres
• Voltage: 12 / 24V
• Amp. Draw: 18A - 10A
• Outlet connection: 38mm (1-1/2") 25mm (1")
• Inlet connection: 19mm (3/4")

For detailed dimensions, see pictures.

Click here to see the instruction manual
