Plastimo Flexible Fresh Water Tank
Plastimo Flexible Fresh Water Tank
Location: NU1
SKU:MA-70963
Couldn't load pickup availability

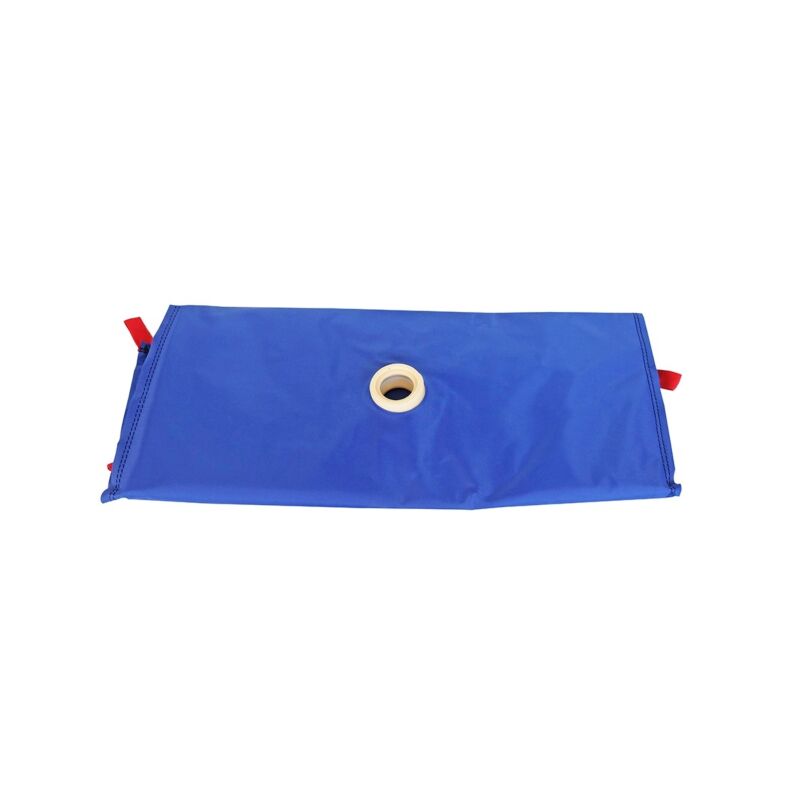

Plastimo water tanks consist of a welded non-porous tasteless PVC water chamber (inner bladder) inside a tough nylon envelope, for complete watertightness and resistance to tearing and abrasion.
The separate chambers allow the water tanks to be flexible enough to adapt their shape during heavy pitching, and to remain rigid enough not to burst under pressure.
The water chamber is slightly oversized, thus allowing the pressure to be exerted not directly on the seams, but on the sides of the bladder itself. All seams are high-frequency welded for top resistance and watertightness.
The outer PVC coated nylon features double seams on all sides, and protects the water chamber from tearing and abrasion.
- Ø 38 mm inlet valve is situated on upper side of tank
- Ø 12 mm outlet valve is situated on back side of tank (except on triangular model : inlet and outlet are both on upper side of tank).
- Height of tanks, when filled to capacity : 25 cm.
|
Part Number
|
Tank Shape
|
Capacity
|
Dimensions
|
Height When Full
|
|---|---|---|---|---|
|
70963
|
Square
|
50 L
|
75 x 75 cm
|
25cm
|
|
70965
|
Rectangular
|
100 L
|
110 x 75 cm
|
25cm
|
|
70955
|
Rectangular
|
150 L
|
150 x 75 cm
|
25cm |
|
70956
|
Rectangular
|
200 L
|
195 x 75 cm
|
25cm |
|
70957
|
Triangular
|
120 L
|
120.5 x 108 cm
|
25cm |
