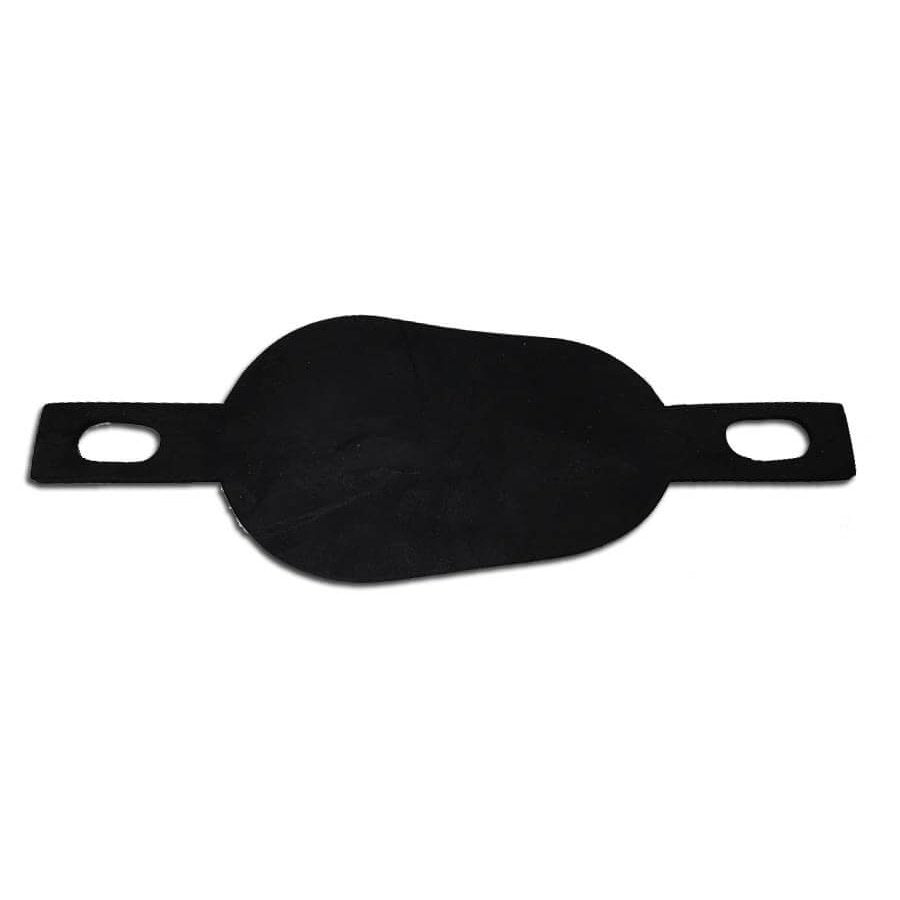

Tecnoseal GUA351/2/B Large Rubber Pear Shape Anode Backing Pad

Tecnoseal GUA351/2/B Large Pear Anode Backing Pad is a neoprene mounting pad for the Tecnoseal 00351/2/B 2.1kg pear-anode pattern; comparable MG Duff ZD77-style installation. It sits between the anode body and the mounting surface to protect the surface and provide a correctly shaped bedding layer; the pad itself is not a sacrificial anode.

What Is This Backing Pad Used For?

The pad follows the long pear-anode and strap footprint, helping protect the mounting surface and support the anode body without replacing the electrical connection provided through the strap or bonding fixings.

The anode must still be electrically connected through its strap, studs or specified bonding arrangement. A rubber or neoprene pad does not create electrical continuity and should not be placed over a contact point that the installation design requires to remain bare metal.

Key Features

• Brand: Tecnoseal
• Part number: GUA351/2/B
• Marine Scene SKU: TS-GUA351/2/B
• Product category: Large Pear Anode Backing Pad
• Material: Neoprene
• Compatibility: Tecnoseal 00351/2/B 2.1kg pear-anode pattern; comparable MG Duff ZD77-style installation
• Dimensions: 250mm × 88mm × 3mm
• Supply: Backing pad only; anode and mounting hardware are not included

Installation Guidance

Confirm the pad outline and fixing-hole positions against the anode before dismantling the existing installation. Clean the mounting surface, align the pad without folds or trapped debris, and refit the anode using suitable serviceable fasteners. Follow the vessel’s original bonding arrangement and tightening method.

Frequently Asked Questions

• Is the anode included? No. This listing is for the shaped backing pad only.
• Does the pad replace an electrical bonding connection? No. The anode must remain connected to the protected metal or vessel bonding system as specified for the installation.
• Should I select by appearance alone? No. Match the Tecnoseal part number, anode family and dimensions before ordering.

Specifications
