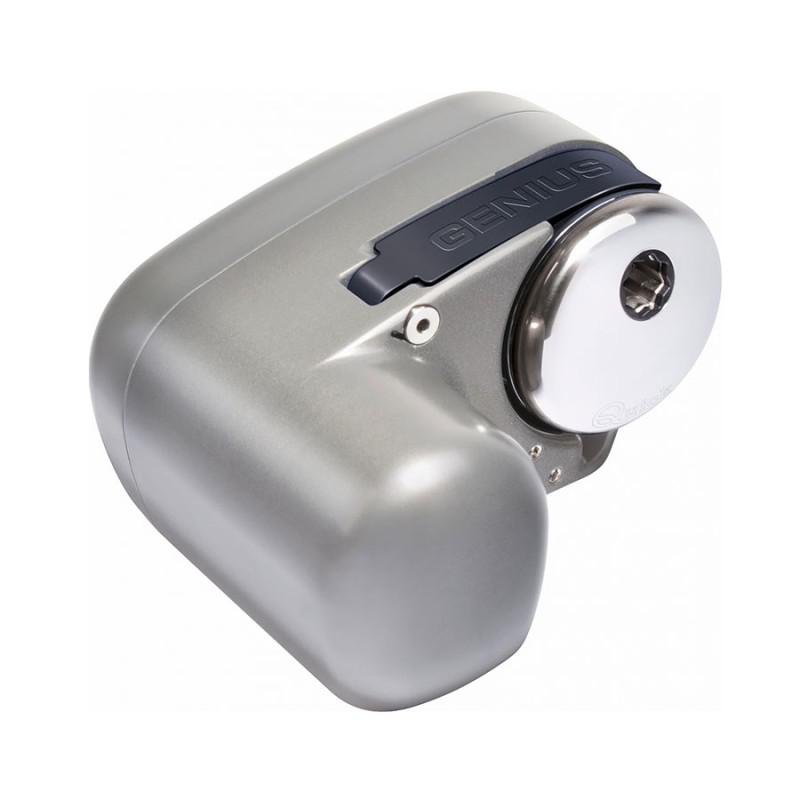

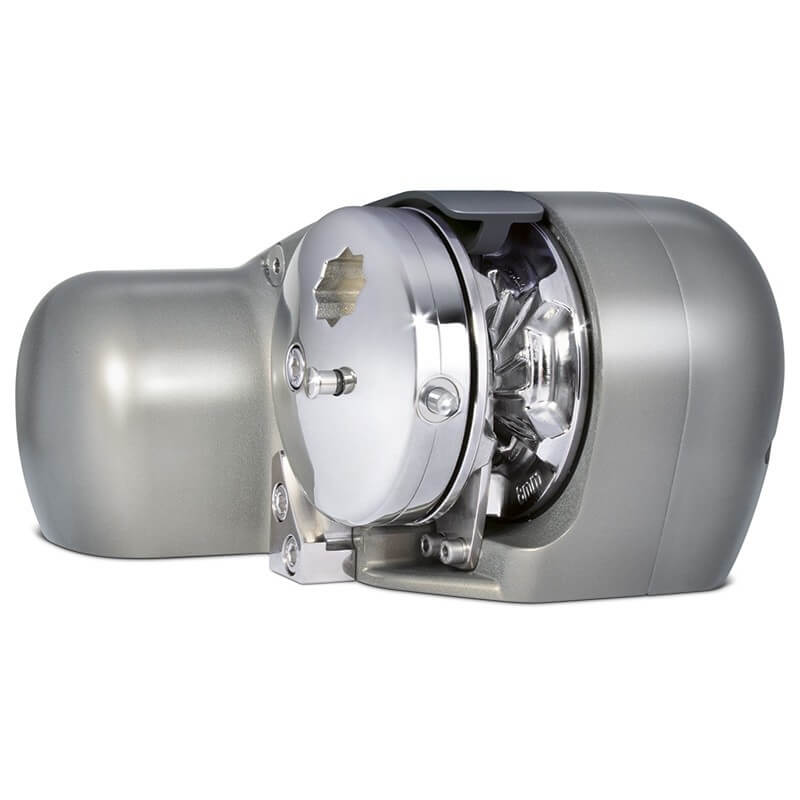

Quick Genius GP2 2000 Series Horizontal Electric Windlass
Quick Genius GP2 2000 Series Horizontal Electric Windlass
Location:
SKU:TMS-FSGP22012D06
Couldn't load pickup availability
The Genius Series offers functionality, efficiency and design Precision. Featuring a discreet and elegant profile, it is designed for installation on deck but when the bow does not allow it, it is also suitable to be placed below deck without taking up too much of the restricted space in the forepeak.
The GP2 2000 / D windlasses are equipped with an epicyclical gearbox, that provides much higher efficiency (40% compared to equivalent traditional gearboxes)
Quick Automatic Free-Fall System
Quick Free-Fall Technology means that the chain will run freely through the gypsy when the anchor is lowered at the press of a button.
The Down Control releases the clutch so that the gypsy can freewheel.
The Up Control engages the clutch, stopping the gypsy, and allowing retrieval of the anchor.
- Horizontal on-deck windlasses
- Anodized aluminium in hard oxide base
- White composite material base (GP2 500)
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclical gearbox (GP2 1500-2000)
| Standard version | GP2 2000 / D - GP2 2000 FF | |
| Motor power | 800 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 900 Kg / 1984 lb | |
| Maximum working load | 350 Kg / 772 lb | |
| Working load | 120 Kg / 265 lb | |
| Current absorption @ working load (1) | 96 A | 50 A |
| Maximum chain speed (2) | 29,6 m/min / 97.1 ft/min | |
| Maximum chain speed @ working load (2) | 20 m/min 65.6 ft/min |
20,1 m/min 65.9 ft/min |
| Weight without drum | 10,2 Kg / 22.4 lb | |
| Weight with drum | 11,5 Kg / 25.3 lb | |
| Weight with FF | 10,9 Kg / 24 lb | |
| Rope Size | 8 - 13mm | |
| Boat Size | 26 - 43ft | |
Supplied accessories:
- Contactor or reversing contactor units
- Nylon handle
Alt Ref: MZ-56025
