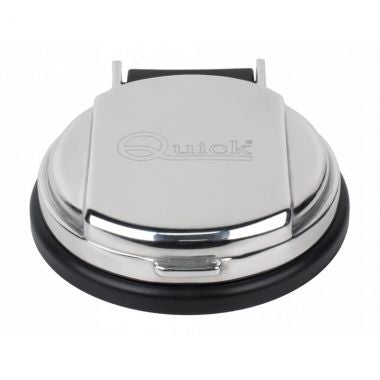

Quick Mod 900/XDB Foot Switch for Anchor - Up - Black - Stainless Steel Case

The Quick Mod 900/XDB foot switch is suitable for anchor lowering without using your hands. The Quick foot switch features a normally open contact and a protective stainless steel lid to prevent any accidental switch operation. Screws are included.

Specifications:

• Cut Out  -  7mm (9/32") ID
• Voltage  -  30V DC Max
• Amps  -  5A Max
• Height  - Open: 88mm (3-15/32"), Closed: 17mm (11/16")
• Width   - 77mm (3-1/32")
• Length  -  85mm (3-11/32")
• Stainless Steel Cover

For detailed dimensions, see third picture.
