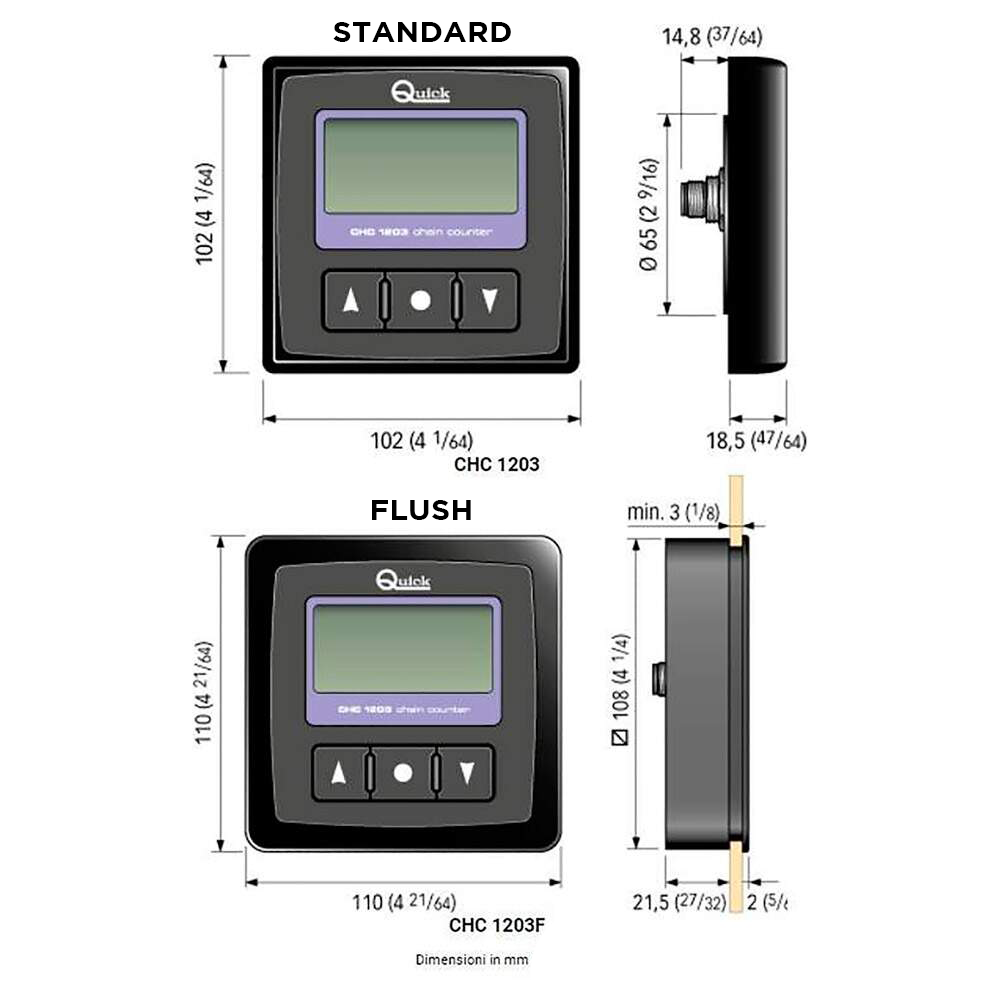

Quick CHC 1203 Panel Display Chain Counter & Windlass Switch - Flush

CHC 1203 is a complete and reliable instrument to manoeuvre from a distance the windlass and controlling the length of chain lowered through the LCD display graphic.

Specification

• Supply Voltage: 9 ÷ 32 Vdc
• Current absorption:   32 mA @12 V-17 mA @24 V
• Protection rating: IP67
• Operating temperature: -20°C ÷ +70°C

Operating functions

• Automatic lowering function.
• Up alarm function.
• Locked keys function.
• Ability to control free fall windlass feature.

Displayed

• Information in 5 different languages.
• Chain speed.
• Supply voltage.
• Depth of chain lowered shown in metres or feet.

General features

• Graphic LCD display; can be easily read from any angle.
• Backlit display screen with 8 brightness levels.
• 8 different display contrast levels can be set.
• Automatic display contrast compensation
• Backlit function keys.
• CAN bus interface for data transfer.
