Quick Prince DP2E 600 Vertical Windlass 500W - 8mm / 12v

Quick Prince DP2E 600 Vertical Windlass 500W - 8mm / 12v

Location:

SKU:TMS-FSDP2E060008

Regular price £1,230.95
Regular price Sale price £1,230.95
Sale Sold out
Tax included. Shipping calculated at checkout.

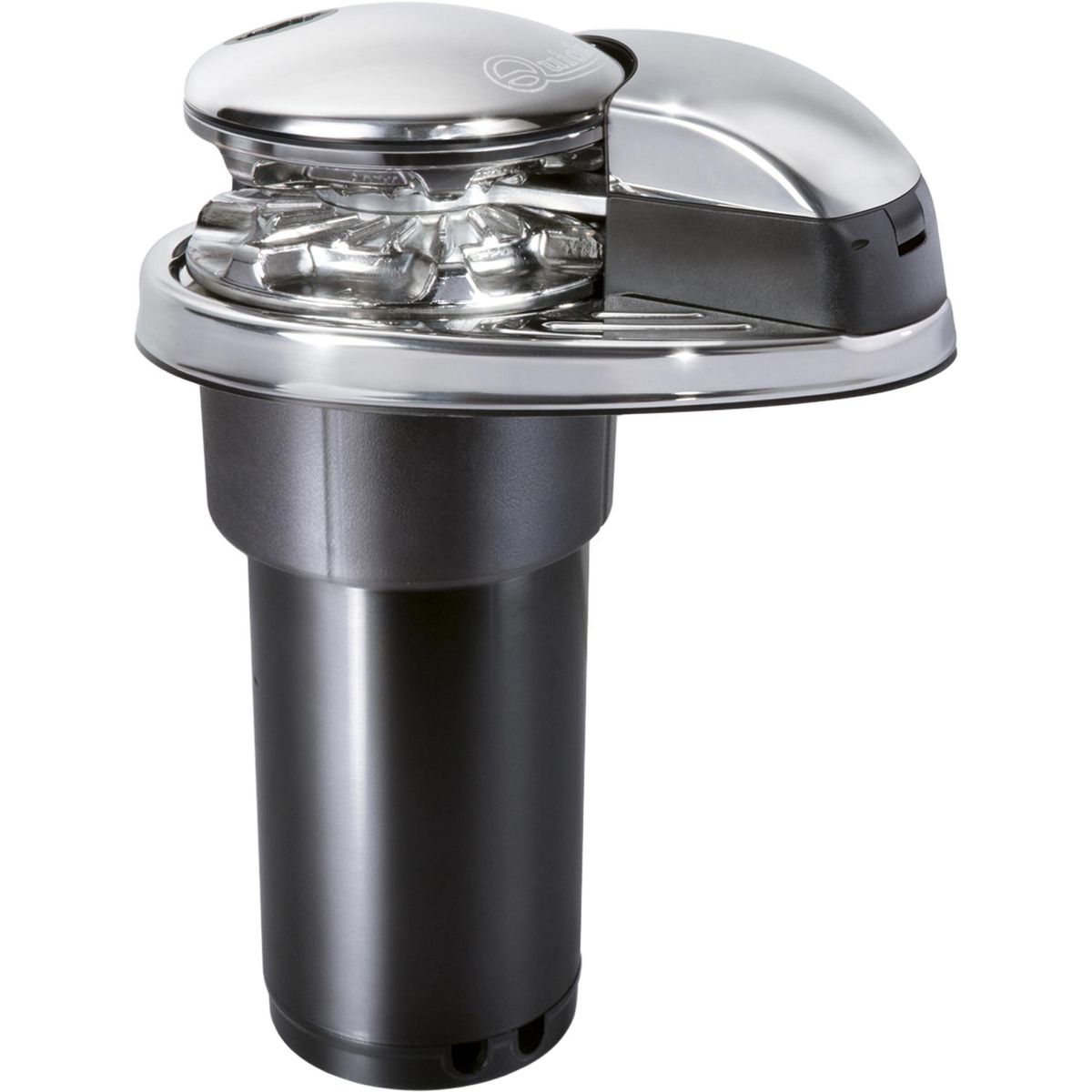

The Quick DP2E Prince 600 vertical windlass is suitable for boats from 6m to 10m (20 to 33ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system.

The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope. This is the kit version of the 600, this kit includes a contactor unit, nylon handle, foot switch and a hydraulic magnetic circuit breaker.

    Primary Construction Stainless Steel
    Suitable For Chain and Rope
    Boat Size 6 to 10 metres in length
    Gypsy Size 8mm
    Brand Quick
    Series Prince DP2E
    Model 600
    Voltage Description 12V DC
    Wattage Motor Power: 500W
    Working Load 65kg (143 lb), Maximum: 200kg (441 lb)
    Maximum Pull Load 620kg (1366.9 lb)
    Maximum Chain Speed 22.9 m/min (75.1 ft/min), At Working Load: 18.6 m/min (61.0 ft/min)
    Amps Description Current Absorbtion At Working Load: 60A
    Fuse 50A Protection Circuit Breaker
    Contents Contactor Units, Nylon Handle, Foot Switch, Hydraulic Magnetic Circuit Breaker, Drilling Template, User Manual
    Height Description 287.5mm (11-5/16")
    Width 196mm (7-23/32")
    Depth 145.4mm (5-23/32")
    Size Motor Cable: 16mm2 (AWG5)
