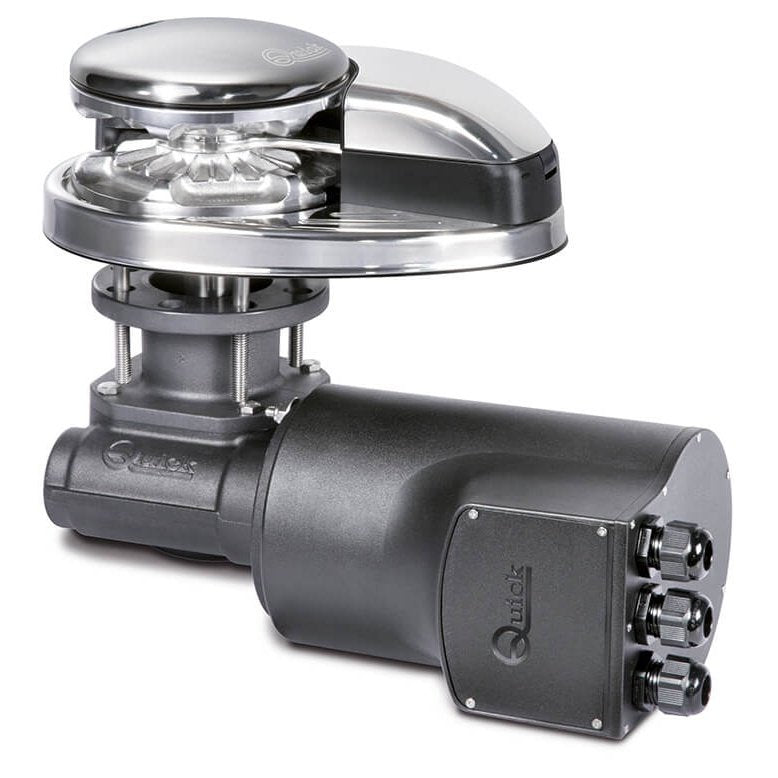

Quick Prince DP3 Vertical Windlass 1500W Gypsy - 10mm / 12v

Quick Prince DP3 Vertical Windlass 1500W Gypsy - 10mm / 12v.     Ref19: MZ-56114

Base in stainless steel AISI 316 and anodised aluminium in hard oxide - With and without drum Rope and chain on a single gypsy. Integrated sensor and magnet for chain counter. Manual Free-Fall system. Supplied with pressure lever Inspection lid IP67 watertight motor. Anodised aluminium gearbox.

Specifications:

• Standard version: DP3 1500
• Motor power: 1500W
• Motor supply voltage: 12V
• Maximum pull: 1100kg
• Maximum working load: 470kg
• Working load: 160kg
• Absorption / working load: 155A - (After an initial period of use)
• Maximum chain speed: 29,2 m/min - (Measurements taken with a gypsy for a 8mm chain)
• Chain speed / working load: 16,3 m/min - (Measurements taken with a gypsy for a 8mm chain)
• Weight: 20.4 Kg
• Boat length: 12-15m
