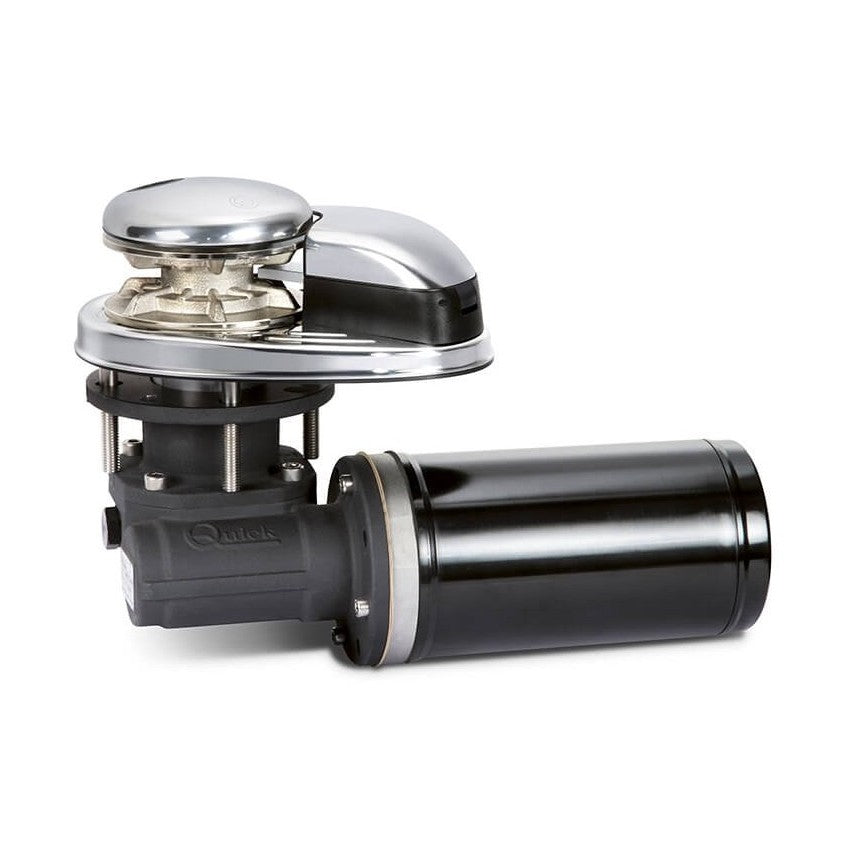

Quick Prince DP1 Vertical Windlass No Drum 500W - 6mm / 12v
Quick Prince DP1 Vertical Windlass No Drum 500W - 6mm / 12v
Location:
SKU:TMS-FSDP10512006
Regular price
£919.95
Regular price
Sale price
£919.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Pickup available at Marine Scene
Usually ready in 2-4 days
Base in stainless steel AISI 316 and anodized aluminium in hard oxide.With and without drum. Integrated sensor and magnet for chain counter. Manual Free-Fall system.Inspection cover. IP66 Watertight motor. Anodized aluminium gearbox.
Specifications:
- Standard version: DP1 500
- Motor power: 500W
- Motor supply voltage: 12V
- Maximum pull: 660kg
- Maximum working load: 200kg
- Working load: 65kg
- Absorption / working load: 80A - (After an initial period of use)
- Maximum chain speed: 25.2m/min - (Measurements taken with a gypsy for a 6mm chain)
- Chain speed / working load: 18.5m/min - (Measurements taken with a gypsy for a 6mm chain)
- Weight: 7.4kg
- Boat length: 5-8,5 m
