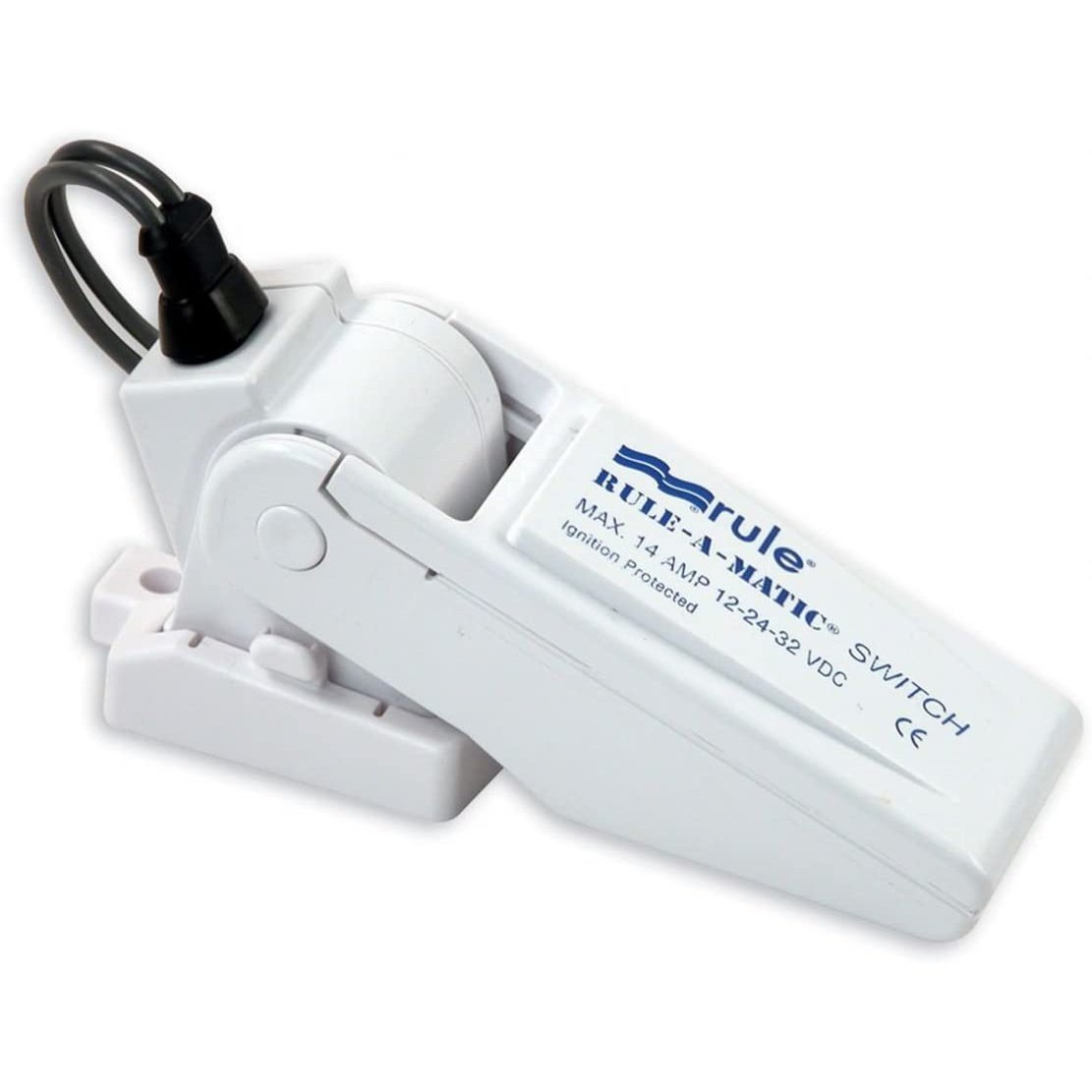

Rule A Matic Float Switch 35A for Automatic On/Off Bilge Pumps

Rule A Matic Float Switch 35A for Automatic On/Off Bilge Pumps .                   CW-35A            J90

The Rule A Matic float switch 35A is a slimmer version of Rule Super-Switch to fit into tight areas where other float switches can't.

For automatic on/off bilge pump control with an operating current rating as listed below.

• 12 Voltage: Up to 14 Amps
• 24 Voltage: Up to 7 Amps

Key Features:

• Patent pending snap switch design
• Snap switch tested to over 1,000,000 cycles
• Highly abrasion resistant marine grade blocked wire
• Exclusive moisture tight seals
• Environmentally friendly mercury free design.
• Turns pump on when water level reaches 51mm (2") and turns pump off when water reaches 19mm (3/4")
• Ignition Protection - ISO 8846 Marine

Specifications:

• Model: 35A
• Voltage: 12 / 24v DC
• Wire Size: 16 Gauge (1.29mm)
• Wire Length: 28” (712 mm)

For detailed dimensions, see second image.
