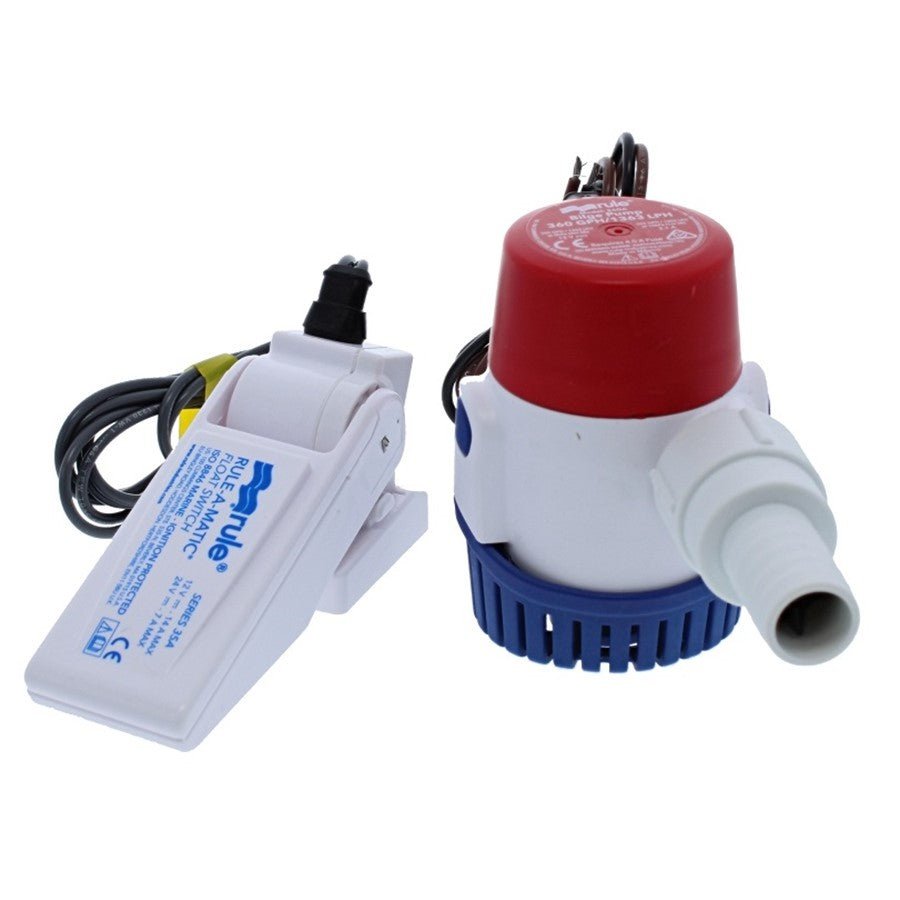

Rule 24DA 360 Series Submersible Bilge Pump With 35A Float Switch - 360 GPH

Rule 24DA 360 Series Submersible Bilge Pump With 35A Float Switch - 360 GPH

Location:

SKU:CW-24DA-35A

Regular price £57.95
Regular price Sale price £57.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Rule 24DA 360 Series submersible bilge pump with a flow rate of up to 23 litres per minute (6 gallons).

The Rule submersible bilge pump is a light weight, compact pump with a tough plastic body and integral strainer. The quick release strainer allows for rapid cleaning of the submersible bilge pump internal components.

The Rule 360 range of small submersible bilge pumps are recommended for discharge heads up to a maximum of 2 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.

  • Higher Flow - through an optimised impeller, the 24DA is able to provide greater flow at the same amperage
  • Built-in Thermal Cut-Off (TCO) - this provides extra protection for both the pump and the vessel it is installed in
  • Back Flow Prevention - the check valve reduces the amount of water left in the bilge, minimising odour and helping to keep your bilge cleaner
  • Hidden Air Vents in the Body - these vents help prevent air-locking in challenging plumbing installations and helps with the check valve
  • Threaded Discharge - this allows for easier pump installation, and easier maintenance
  • Base Fits Existing Rule 24 Screw Holes

The 24DA-35A comes with the extremely popular narrow design Rule Float Switch, ideal for all bilges including narrow bilge applications.

The switch design prevents rapid on/off cycling. Mercury Free! Max current 14A.

Dimensions:

Length: 105mm

Width: 40mm

Height: 110mm (at max lift)

Rule model: 35A

Fixing hole centre: 51mm

Amps: Maximum 14A

Approvals ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification
Consumption 2.1 A
Flow Rate Description 1362 LPH (360 US GPH)
Flow Rate 1 Metre Head 1003 LPH (265 GPH)
Fuse 3A
Height Description 99mm (3.9")
Length 74mm (2.9")
Material Tough Plastic Body
Outlet 19mm (3/4") ID Hose
Series Rule 360
Voltage Description 12V DC
Weight 0.41kg
Width 64mm (2.5")
Primary Construction Plastic
Automatic Bilge Pumps No
Maximum Pump Head 0 to 2.2 Metres
Flow Rate 2 Metre Head 719LPH (190 US GPH)
Hose Size 19mm / 3/4"
Ignition Protected Yes
Maximum Recommended Head 2 Metres (6.5 Feet)
Model 24DA
Replaces 504150 - Rule 24 360 Submersible Bilge Pump
Amps Description 2.1A at 12V, 2.4A at 13.6V
