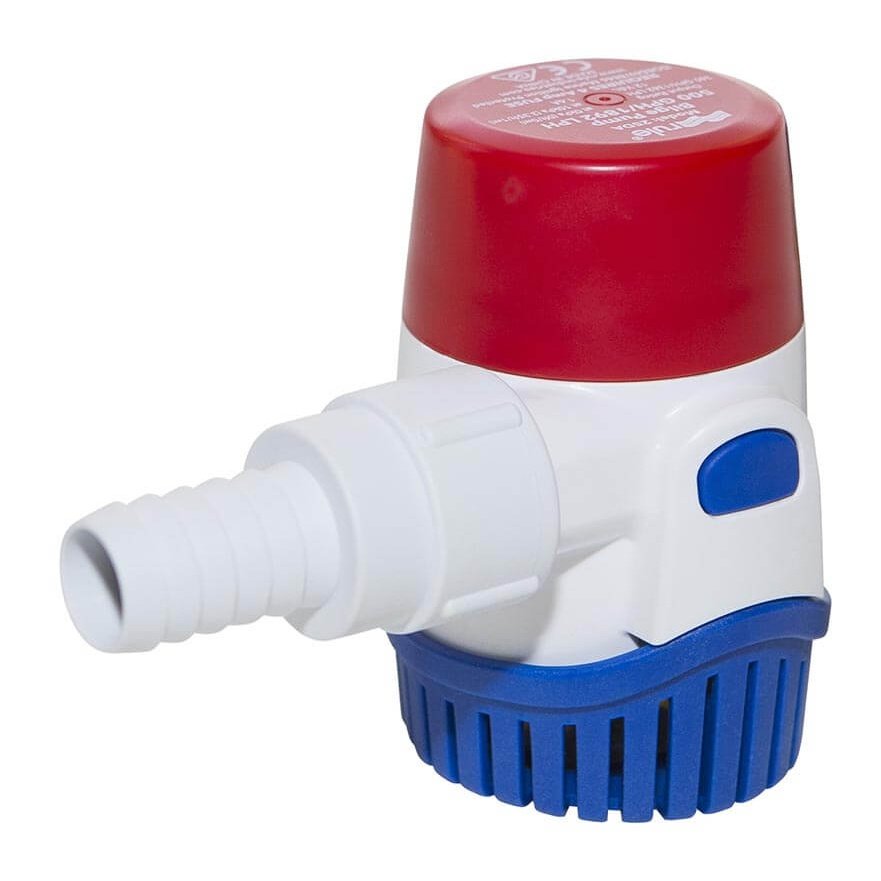

Rule 25DA 500 Series Submersible Bilge Pump - 500 GPH
Rule 25DA 500 Series Submersible Bilge Pump - 500 GPH
No reviews
Location:
SKU:CW-25DA
Regular price
£30.95
Regular price
Sale price
£30.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Rule 25DA 500 Series submersible bilge pump with a flow rate of up to 31 litres per minute (8 gallons).
The Rule submersible bilge pump is a light weight, compact pump with a tough plastic body and integral strainer. The quick release strainer allows for rapid cleaning of the submersible bilge pump internal components.
The Rule 500 range of small submersible bilge pumps are recommended for discharge heads up to a maximum of 2 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.
The Rule 25DA replaces the 12 volt Rule 25D and has the following features:
- Light, compact pump for ski-boats and small vessels.
- Tough plastic body with integral strainer.
- Quick release inlet strainer allows rapid cleaning.
- Low amp draw conserves batteries.
- Built-in Thermal Cut-Off. Motor rated for 1500-hour life.
- Check Valve included for Back Flow Prevention.
- Vented body to prevent air locking.
- Threaded port for easier installation and maintenance.
- For automatic operation, use Rule Float Switches.
- Base not interchangeable with old range but can be fitted to existing screw holes.
Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification | ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification |
Flow Rate Description | 1892 LPH (500 US GPH) | 1892 LPH (500 US GPH) |
Flow Rate 1 Metre Head | 1362 LPH (360 US GPH) | 1362 LPH (360 US GPH) |
Fuse | 3A | 1.5A |
Height Description | 99mm (3.9") | 99mm (3.9") |
Length | 74mm (2.9") | 74mm (2.9") |
Material | Tough Plastic Body | Tough Plastic Body |
Outlet | 19mm (3/4") ID Hose | 19mm (3/4") ID Hose |
Series | Rule 500 | Rule 500 |
Voltage Description | 12V DC | 24V DC |
Width | 64mm (2.5") | 64mm (2.5") |
Brand | Rule | Rule |
Primary Construction | Plastic | Plastic |
Automatic Bilge Pumps | No | No |
Maximum Pump Head | 0 to 2.2 Metres | 0 to 2.2 Metres |
Warranty | 3 Years | 3 Years |
Flow Rate 2 Metre Head | 984 LPH (260 US GPH) | 984 LPH (260 US GPH) |
Hose Size | 19mm / 3/4" | 19mm / 3/4" |
Ignition Protected | Yes | Yes |
Maximum Recommended Head | 2 Metres (6.5 Feet) | 2 Metres (6.5 Feet) |
Model | 25DA | 25DA |
Replaces | 504152 - Rule 25D 500 Submersible Bilge Pump | 504154 - Rule 26D 500 Submersible Bilge Pump |
Amps Description | 1.6A at 12V, 1.8A at 13.6V | 0.8A at 24V, 0.9A at 27.2V |
