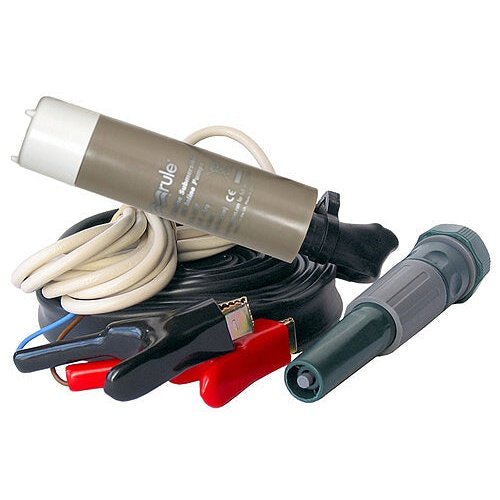

Rule iL500 Plus Centrifugal Submersible & Inline Water Pump Kit
Rule iL500 Plus Centrifugal Submersible & Inline Water Pump Kit
Location:
SKU:CW-IL500PK
Couldn't load pickup availability
The Rule iL500P Pus Submersible Pump is designed to be suitable for a variety of uses, both afloat or ashore, each pump is a combination of a submersible pump and an inline pump, giving hot or cold fresh water, seawater, antifreeze and even diesel.
These slimline pumps can be utilised as deck showers, for general wash down, water or diesel transfer, engine winterizing and much much more!
Pump Kit includes 4 metre cable & battery clips, 4 metre plastic lay-flat hose & adjustable spray nozzle.
(formerly LVM111 Congo Pump)
Suitable for diesel, fresh and salt water
Quick diesel transfer with no spillage
Water transfer, deck shower, or deck wash
Continuous rating but should not be run dry for long periods
Output: up to 31.8litres/minute at up to 1bar (7gallons/minute at 14psi)
Connections: 3/4" (19mm) Hose
Dimensions: 165 x 38mm (L x diameter)
Max Current: 6A
Specifications | iL500P | iL500P-24 |
Certification | CE | CE |
Closed Valve Head | 32.0 ft (9.7 m) | 32.0 ft (9.7 m) |
Dimensions (H x W x D) | 165 x 38 (mm) | 165 x 38 (mm) |
Capacity (GPH/LPH) | 500 GPH (1892 LPH) | 500 GPH (1892 LPH) |
Duty Cycle | Continuously rated (should not be run dry for long periods) | Continuously rated (should not be run dry for long periods) |
Operating Pressure | 14 PSI (0.96 bar) | 14 PSI (0.96 bar) |
Operating temperature | Water systems up to 176°F (80°F) | Water systems up to 176°F (80°F) |
Product Outlet Fitting | 3/4 IN (19 MM) ID Hose | 3/4 IN (19 MM) ID Hose |
Voltage | 12 (Vdc) | 24 (Vdc) |
Volts | 12 Volt | 24 Volt |
