RWO Clamcleat Mini Black - 6mm

RWO Clamcleat Mini Black - 6mm.              Ref19: MA-C204

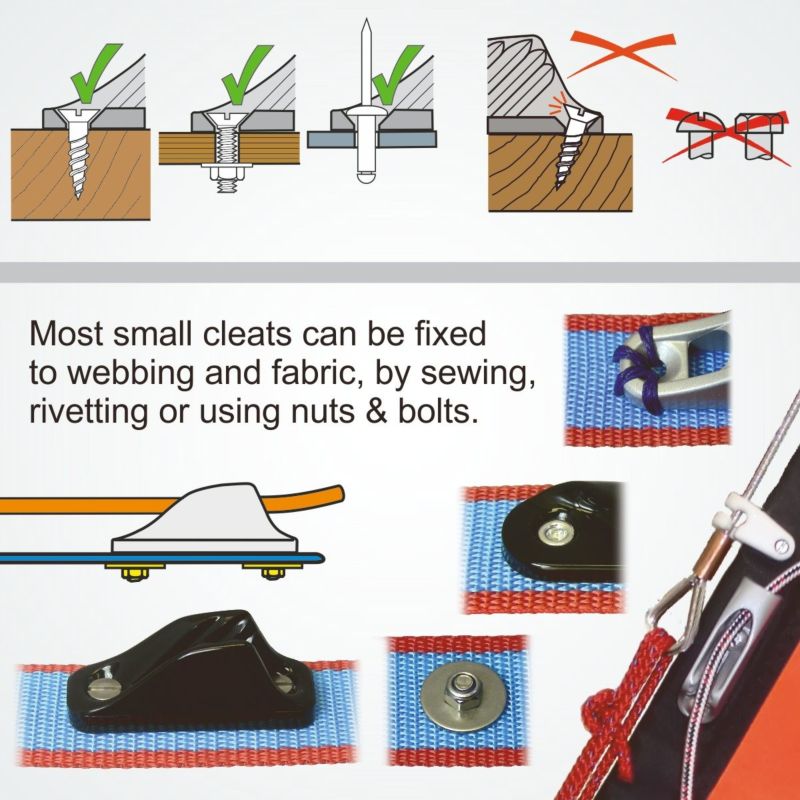

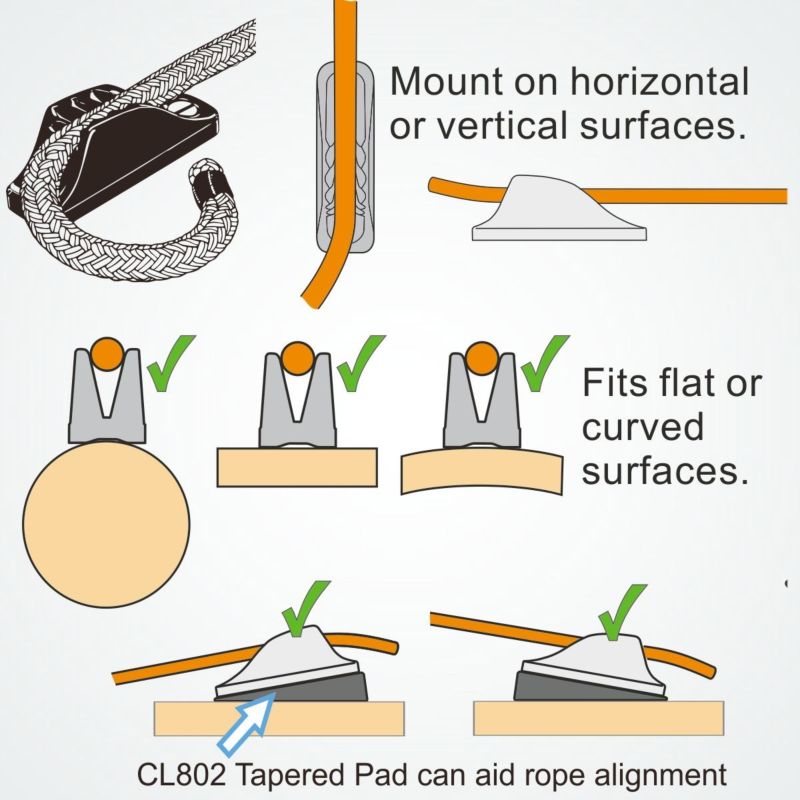

Clamcleat CL204 is an elegant design in black nylon. The rope drops down into the teeth. It can be fitted to all flat and curved surfaces, using rivets, countersunk (flathead) screws or bolts. CL204 can also be sewn, riveted or bolted onto webbing or fabric.

Uses include control lines for dinghies, kayaks and greenhouse vents.

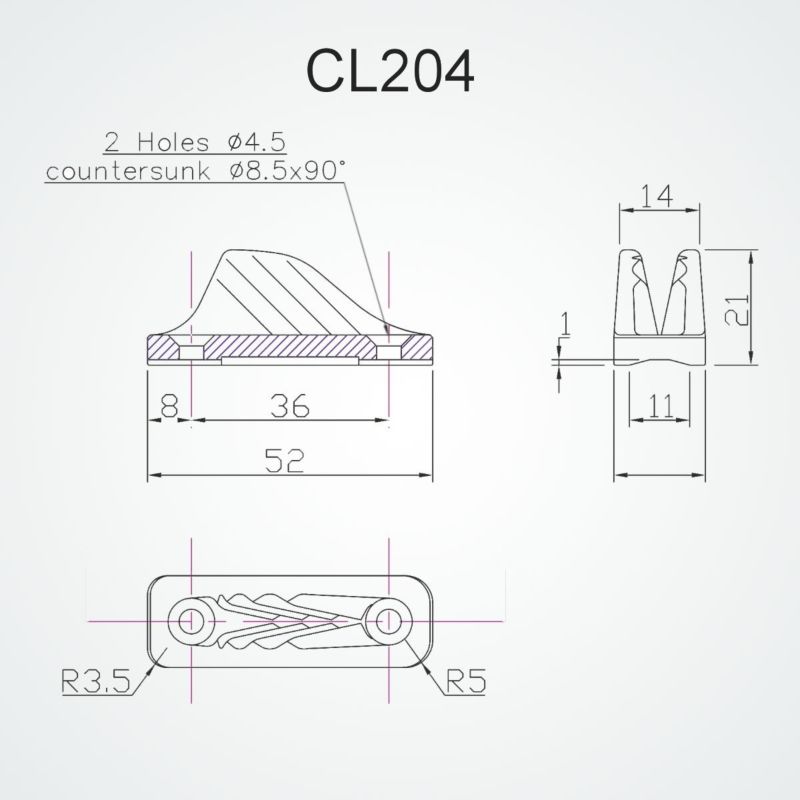

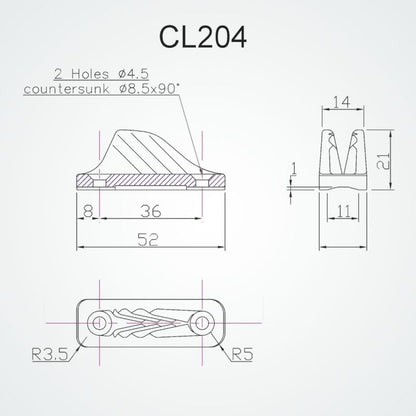

Specification :

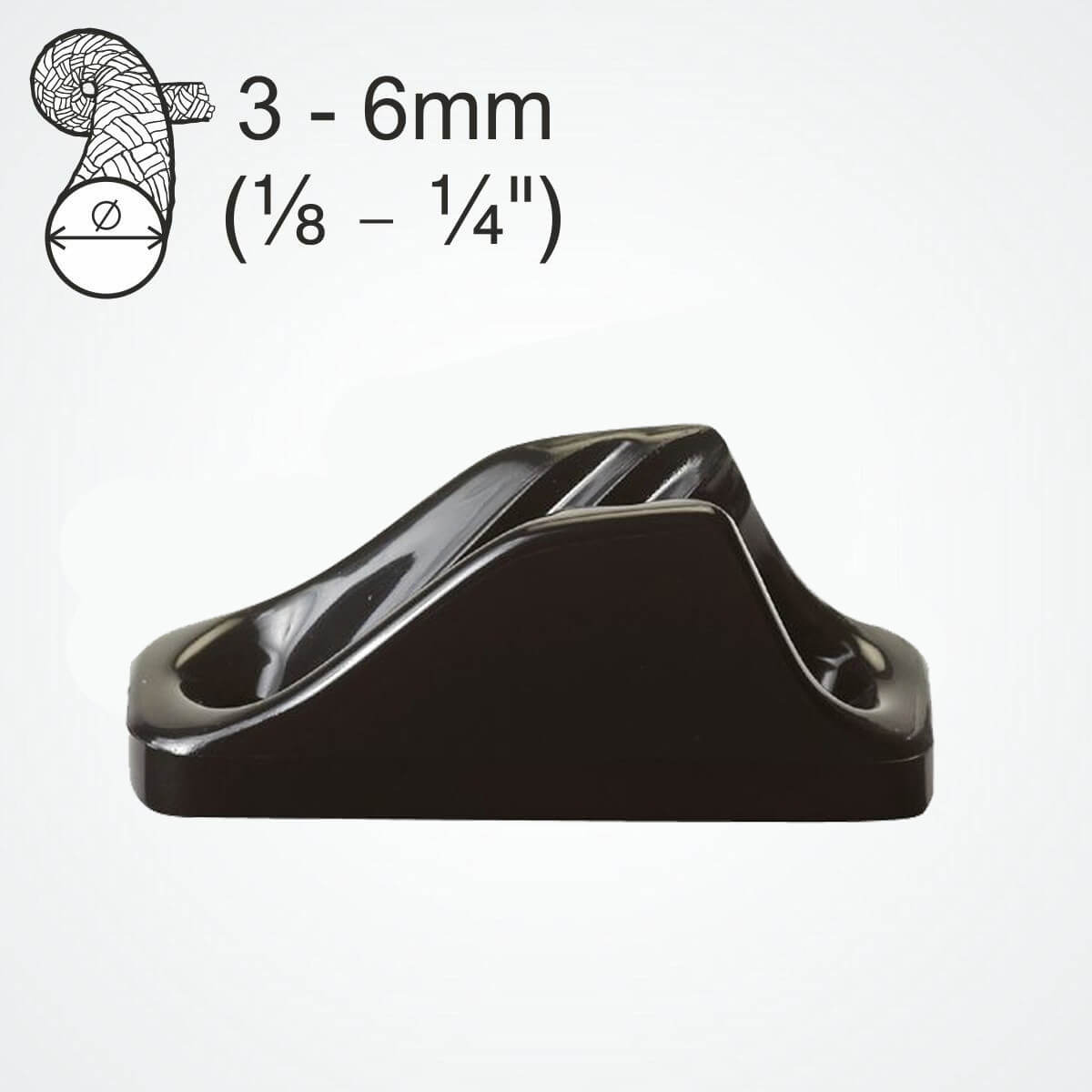

• Rope Diameter: 3 - 6mm
• Material: Nylon
• Hole Centres: 36mm
• Length: 52mm
• Width: 17mm
• Height: 21mm
• Bolt Size: M4
• Screw Size: 4.2
• Weight: 9g

Installation Sheet

Fixing Cleats Leaflet
