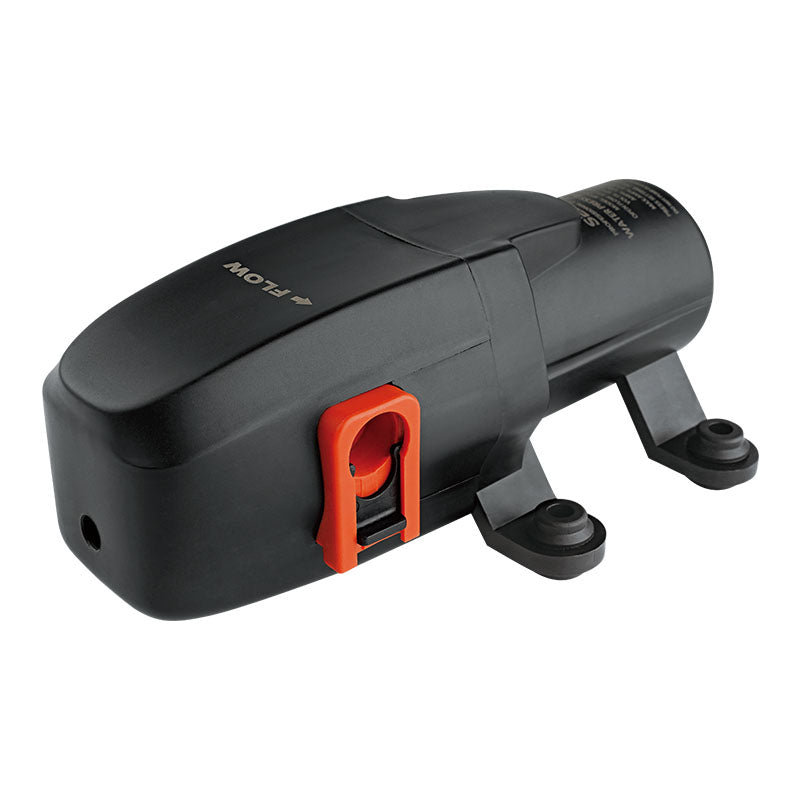

SEAFLO Diaphragm Pressure Pump Automatic Auto 23A Series - 12v - 1.0 GPM 40 PSI

The Seaflo 23A series water pressure pump is an automatic demand, 2-chamber diaphragm pump with a wide variety of applications.

It is ideal for marine, vehicle or home use and has hose connections with several different fittings to allow it to be connected to any outlet. This self priming pump has run-dry capability and a long life, on demand,pressure switch. The pressure switch can be adjusted from between 17 and 80 psi when necessary.

• 2 Diaphragm pump
• Self priming
• Multiple applications
• Quiet running engine
• Adjustable pressure switch
• Bypass technology to reduce cycling
• Mounting: industry standard pattern
• Marine grade wiring
• Ignition protected
• Waterproof to IP54
• CE, RoHS standard
• Weight: 0.7kg
• Open flow: 1.0 gpm / 3.8 lpm
• Shut-off pressure: 40 psi / 2.8 bar
• Voltage: 12v
• Max. draw: 3.8A
• Control type: switch and bypass
• Priming capabilities: 1.5m / 5'

Instructions - Click Here
