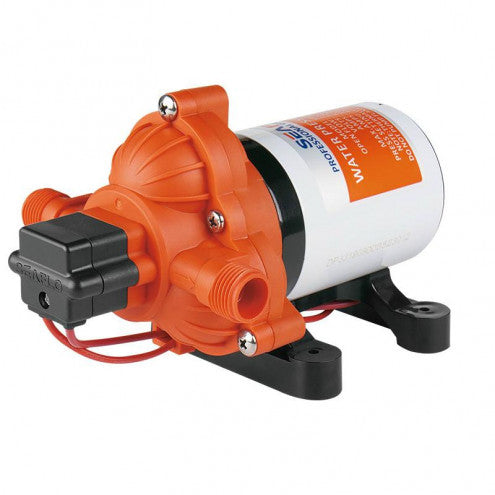

SEAFLO Diaphragm Pressure Pump Automatic Auto 33 Series - 12v - 3.0 GPM 45 PSI

This Seaflo Series 33 pressure pump is a self priming, on demand pump with a wide variety of applications in the marine, home and commercial environment. Ideal for use with yacht or motor vehicle pressurised water systems, sprayers and cleaning equipment, solar water systems and liquid transfer systems and able to perate to a temperature of up to 60C or 140F. The Seaflo 33 series is a high performing and reliable pump, capable of pumping up to 3 gallons a minute and self priming up to 6 vertical feet.

With three chambers, it is controlled by a long life, adjustable pressure switch (17 or 60 psi), and is capable of being run dry and intermittently without damage. There is a built-in thermal protection system and an automatic restart function should it overheat due to overload.

• Self priming pressure pump
• 3 chambers
• Adjustable pressure switch
• Diaphragm material: Santoprene
• Run dry capability
• Threaded connections with multiple fittings
• Marine grade wiring
• Valves: EPDM/Vition
• RoHS, SGS and ISO standards or above
• Corrosion resistant valves
• Thermal overload protected with automatic restart function
• Easy to install and maintain
• Standard fittings included
• Open Flow: 3.0 gpm / 11.3 lpm
• Shut-off pressure: 45 psi / 3.1 bar
• Inlet/Outlet ports: 1/2" - 14mnpt
• Leads: 16 AWG x 11.4cm
• Voltage: 12v
• Max draw: 6.74A
• Control type: switch
• Priming capabilities: 1.8m / 6ft
